Ourmeter LCD-S700 Manual

4)

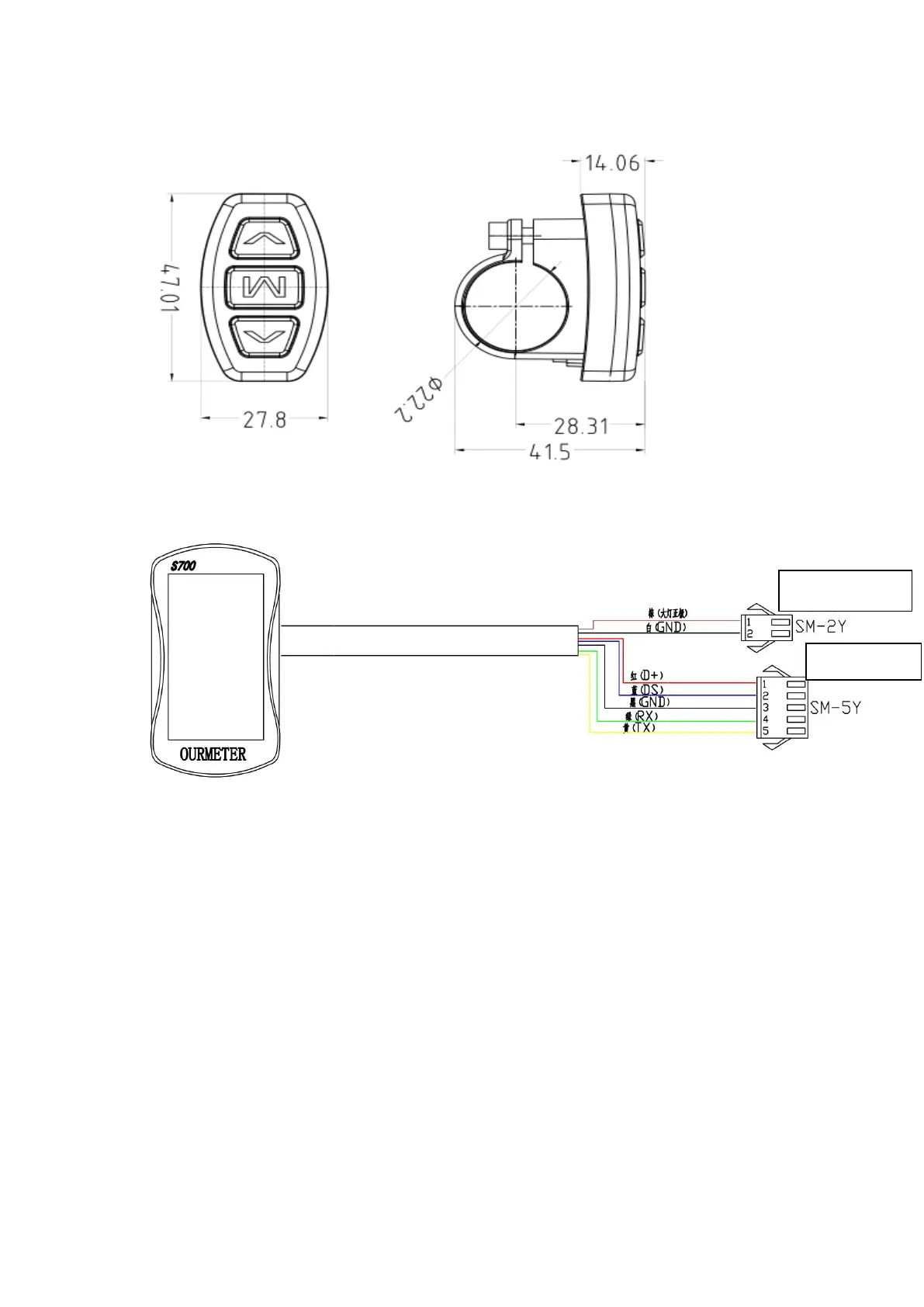

Connection diagram:
Wire definition:
Red：
Power supply
Blue：
Electronic lock
Black： GND
Green： Data RXD
Yellow： Data TXD
BROWN：
Head light(+)
White：
Head light(
2
Connection diagram:
Power supply
-VCC
Electronic lock
-DS
Head light(+)
–DD
Head light(
-)-GND
To Head Light
To Controller

Ourmeter LCD-S700 Specifications

General

Brand	Ourmeter
Model	LCD-S700
Category	Bicycle Accessories
Language	English
