Introduction
10 900-0167-01-00 Rev A
to include a MATE3 as part of the system. This provides the means to monitor system performance
and respond quickly should it be necessary to correct a fault or shutdown condition.
The MATE3’s Configuration Wizard is capable of automatically configuring inverters to a series of
preset values. This is often more efficient than attempting to manually program each setting in each
inverter. Affected fields include system type, battery charging, and AC source configuration.
IMPORTANT:
The MATE3 system display must have firmware revision 003.002.xxx or higher.
IMPORTANT:
Some functions are not based in the inverter, but are part of the MATE3 firmware.
They will not function if the system display is removed. These functions are listed
beginning on page 53.
IMPORTANT:
The FXR inverter is only compatible with the MATE3 System Display and Controller.
It is not intended for use with the OutBack MATE or MATE2 products.
The FXR inverter can use the OPTICS RE online tool as a system display.
OPTICS RE must be used in conjunction with the MATE3 or with the AXS Port
SunSpec Modbus Interface.

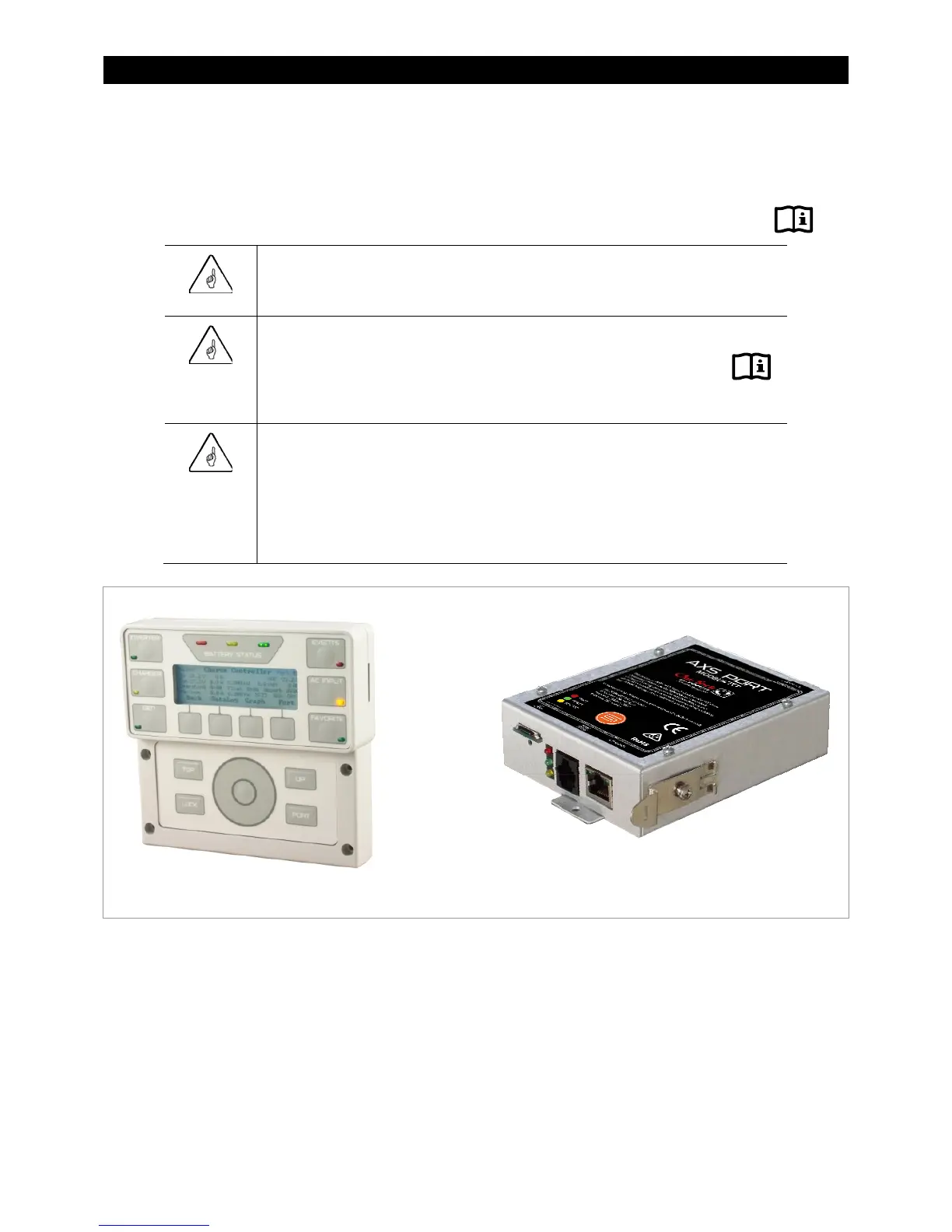

Figure 2 MATE3 and AXS Port
On/Off Switch
If a system display is not in use, the inverter can be equipped with a switch to turn it on and off. This
switch is not sold as an inverter accessory; a common toggle switch can be used. The switch is wired
to the
INVERTER ON/OFF
auxiliary terminals. (See the FXR Series Inverter/Charger Installation Manual
for more information on wiring the switch.)
This switch turns only the inverter on and off. It does not turn the charger or any other function on or
off. All inverter functions will operate according to their programmed settings. Functions included
with a system display will not be available.
