Outback FXR2012A User Manual

900-0167-01-00 Rev A 55
Metering
MATE3 Screens
The MATE3 system display can monitor the FXR inverter and other networked OutBack devices. From
the Home screen, the
<Inverter>
“soft” key accesses the screens for monitoring the inverter.

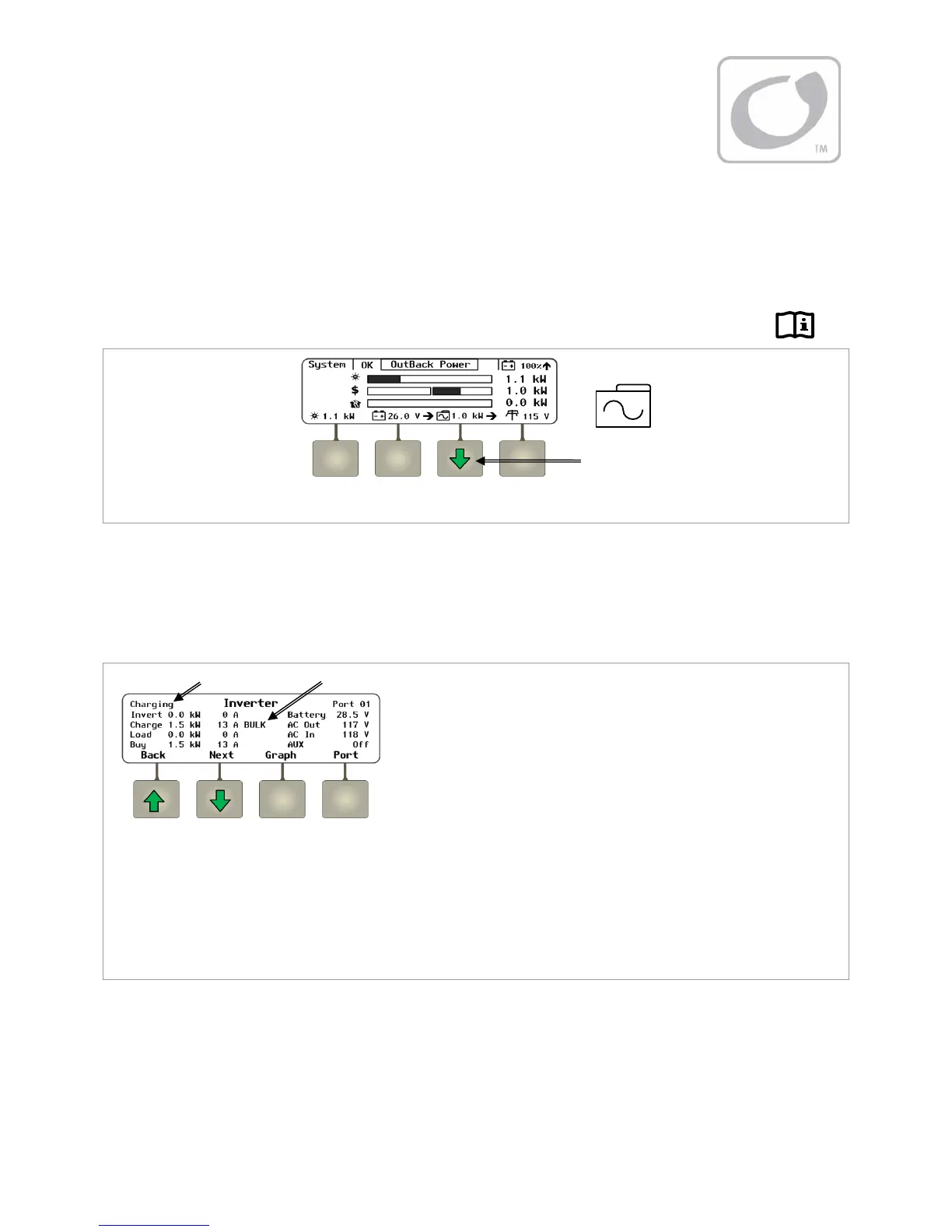

Figure 19 Home Screen
Inverter Screen
The Inverter soft key opens a screen showing the inverter operating mode, battery voltage, and status
of several AC operations. The
<Port>
soft key will select other networked OutBack inverters, if
present. The
<Next>
soft key accesses the Battery screen.
Figure 20 Inverter Screens
Screen items:

The upper left corner is the Inverter Mode (see above). When
Charging
is indicated, the Charge Mode
specifies the stage.

Invert
displays the kilowatts and AC amperage generated by the inverter. It may go to loads, or in a
grid-interactive system it may be sold back to the utility grid.

Charge
displays the kilowatts and AC amperage consumed for the inverter to charge the battery bank. This
line also shows the present charging stage.
Inverter Soft Key
Inverter Modes:

Inverting (see page 27)

Searching (see page 28)

Support (see page 18)

Sell (see page 19)

Charging (see Bulk on page 35)

Charger Off (see pages 32 and 35)

Float (see page 36)

EQ (see page 39)

Silent (see page 36)

PassThru (see page 32)

Error (see page 62)

Off
Charge ModeInverter Mode
Inverter Modes (slave):

Slave On

Slave Off

Error
Charge Modes:

BULK

FLOAT

EQ
