USER’S MANUAL FOR MAINTENANCE, CONTROL & INSTALLATION OF THE
“OUTLINE GTO ARRAY” – Translation of the original instructions
Page 9/31
3.1.2 Product name
O GTO
3.1.3 ID Plate
The product’s ID plate (Figure 6) is glued on to the rear panel of each element.

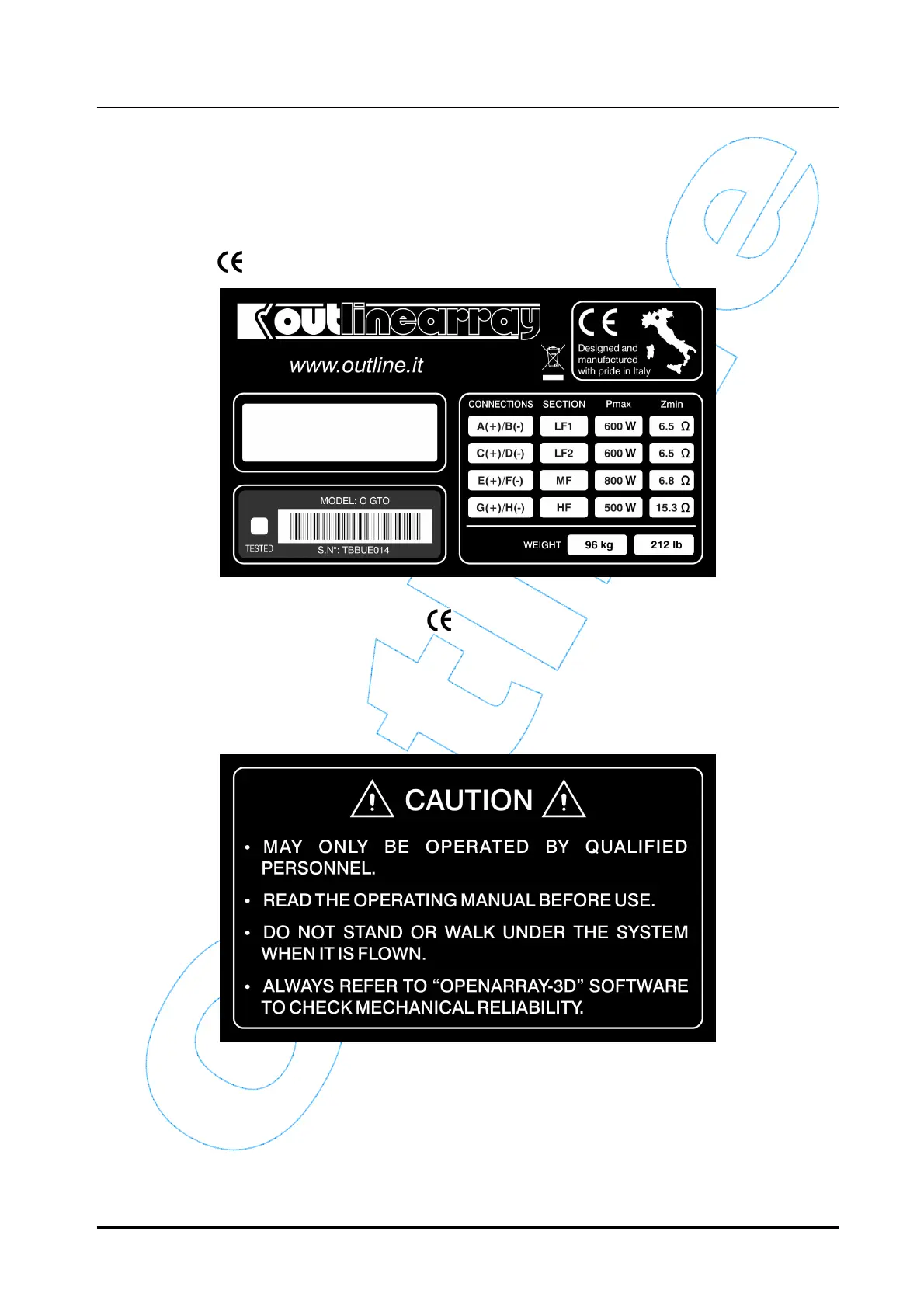

Figure 6 – The “GTO” element’s ID plate.
In particular, the ID plate features the symbol, the manufacturer, the serial number
and the weight of the complete element, which is 96 kg. (including the mechanism,
connector brackets and locking pins).
A plate with the basic information for using the GTO system (Figure 7) is also glued on
the rear panel.
Figure 7 – Label with the instructions for use.
3.2 Use foreseen
Each “GTO” element is designed and built to be connected exclusively to products that
are compatible with it, in order to form a vertical series of mechanically connected
elements (called an array). “Compatible products” are intended exclusively as:
