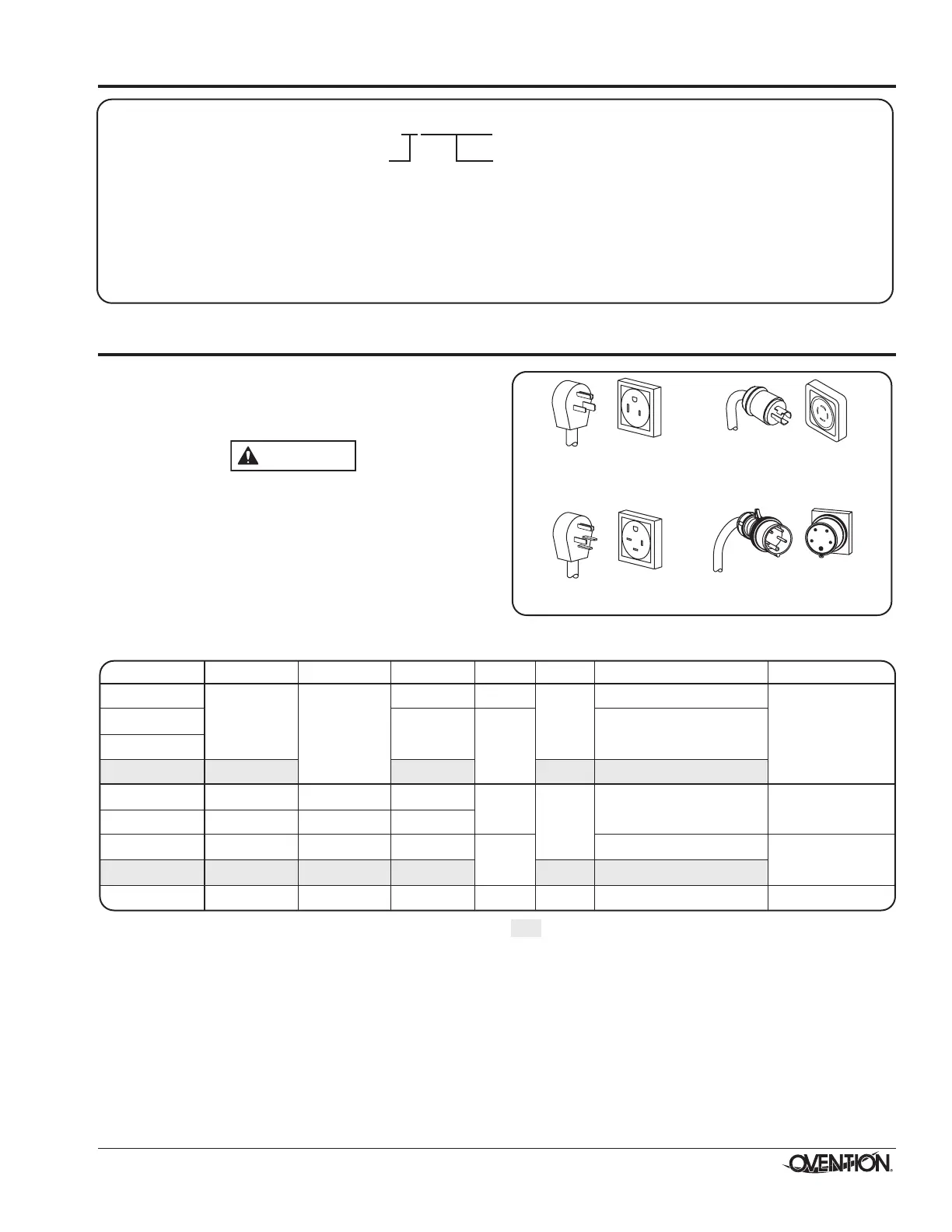

Ovention C1400 - Model Designation; Specifications; Plug Configurations; Electrical Rating Chart

Form No. OVCM-0720
5
Model Voltage Kilowatts Amps Phase Hertz Plug Conguration Unit Weight
C1400
208/240
10.8
41/45 1
60
NEMA 6-50P
180 lbs. (82 kg)
C1400CSA
24/26
3
NEMA L15-30P
C14003PH
C1400 230/400 15 50 IEC 60309, 3P + N + E
C2000
208/240 9.2/11.8 44/49
1
60
NEMA 6-50P 226 lbs. (103 kg)
C2000CSA 208 8.3 40
C20003PH
208/240 12.0 34
3
NEMA 15-50P
243 lbs. (110 kg)
C2000
230/400 12.0 23 50 IEC 60309, 3P + N + E
C2600
208/240 12.6/14.7 37 3 60 NEMA 15-50P 266 lbs. (121 kg)
MODEL DESIGNATION
SPECIFICATIONS
Electrical Rating Chart
C x x x x
Oven Type:
C = Conveyor
Model Number:
1400 = 14" x 14" Cavity With Catalyst
1400NC = 14" x 14" Cavity, No Catalyst
14003PH = 14" x 14" Cavity, With Catalyst, 3 Phase
2000 = 20" x 20" Cavity With Catalyst
2000NC = 20" x 20" Cavity, No Catalyst
20003PH = 20" x 20" Cavity, With Catalyst, 3 Phase
2600 = 20" x 26" Cavity With Catalyst
NOTE: Ovention Conveyor Ovens are designed to accept
either 208 VAC or 240 VAC. The oven will adjust
automatically to the input voltage.
The shaded areas contain electrical information for
International models only.
NOTE: The specification label is located on the left side of the
unit. See the label for the serial number and verification
of unit electrical information.
Plug Configurations
Units are equipped with an electrical cord and plug appropriate
for the electrical rating of the unit. Unit must be connected to a
dedicated circuit.
WARNING
ELECTRIC SHOCK HAZARD: Plug unit into a properly
grounded electrical receptacle of the correct voltage,
size, and plug configuration. If plug and receptacle do not
match, contact a qualified electrician to determine and
install proper voltage and size electrical receptacle.
NOTE: Receptacle not supplied by Ovention.
NEMA 15-50P
NEMA 6-50P
NEMA L15-30P
IEC 60309
3P + N + E
Plug Configurations
Temperature Range
The operating temperature ranges of the Conveyor Oven are
as follows:
C1400/C1400CSA/C14003PH = 300°–550°F (149°–288°C)
C2000/C2000CSA/C20003PH = 300°–550°F (149°–288°C)
C2600 = 300°–550°F (149°–288°C)
