Ovention Matchbox M1313 - Oven Dimensions and Cook Surfaces; Physical Dimensions; Cook Surface Dimensions

Model
Overall
Width (A)
Depth
(B)
Height
(C)
Footprint
Width (D)
Footprint
Depth (E)
Rear
Width (F)
Platform
Width (G)
Body
Width (H)
M1313 49-7/8″
(1266 mm)
28-3/4″
(730 mm)
20-1/4″
(514 mm)
15-7/16″
(391 mm)
20-7/16″
(518 mm)
29″
(735 mm)
16-15/16″
(430 mm)
16-1/16″
(408 mm)
M1718 61-3/4″
(1567 mm)
34-1/2″
(876 mm)
20-1/4″
(514 mm)
19-5/16″
(490 mm)
26″
(659 mm)
32-15/16″
(835 mm)
20-7/8″
(530 mm)
20″
(508 mm)
Form No. OVMM-0113
6

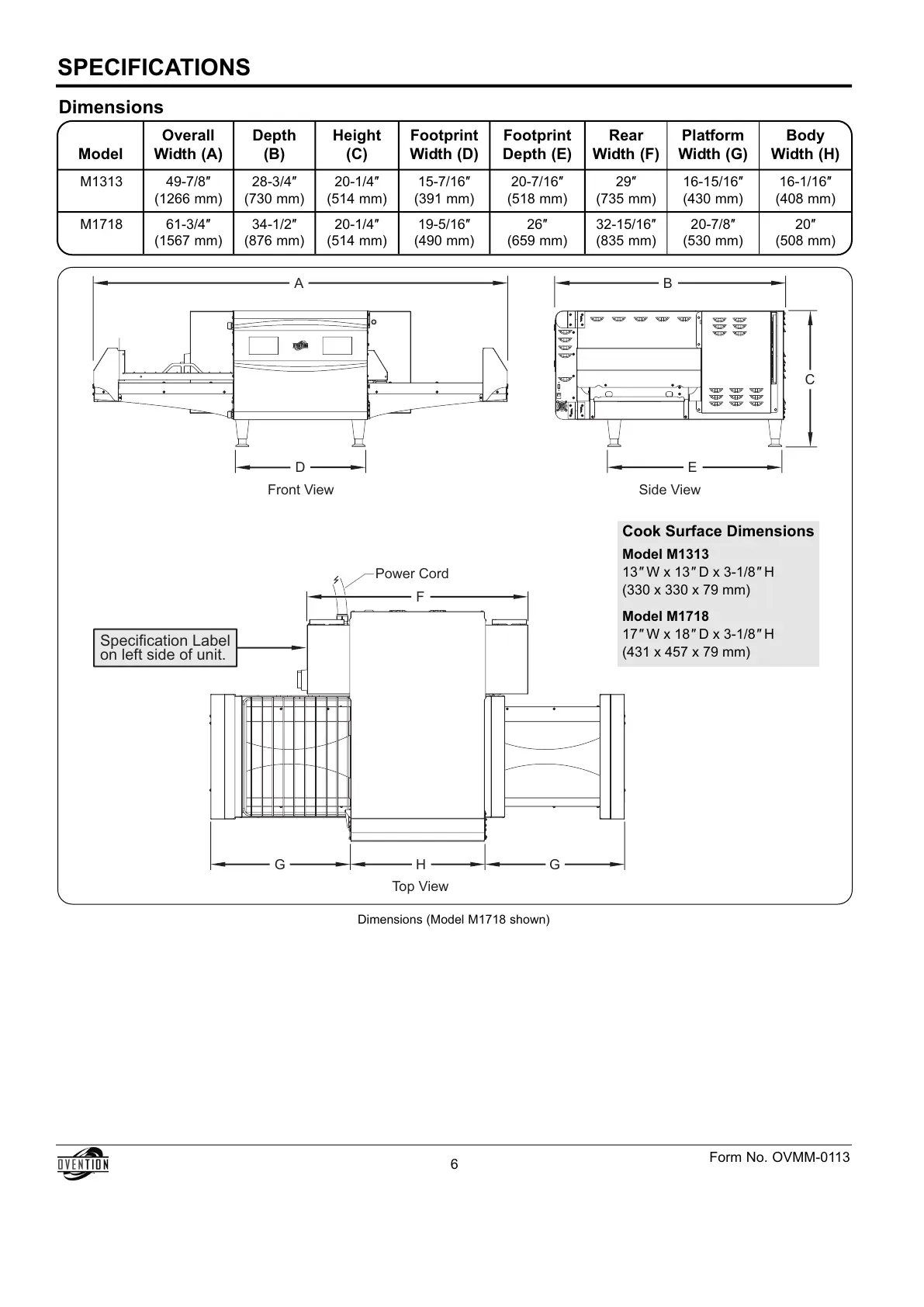

SPECIFICATIONS
Dimensions
Specification Label
on left side of unit.
A B
C
F
D
G H G
E
Front View Side View
Top View
Power Cord
Cook Surface Dimensions
Model M1313
13″ W x 13″ D x 3-1/8″ H
(330 x 330 x 79 mm)
Model M1718
17″ W x 18″ D x 3-1/8″ H
(431 x 457 x 79 mm)
Dimensions (Model M1718 shown)
