OWC data doubler User Manual

Installation
12
OWC Data Doubler

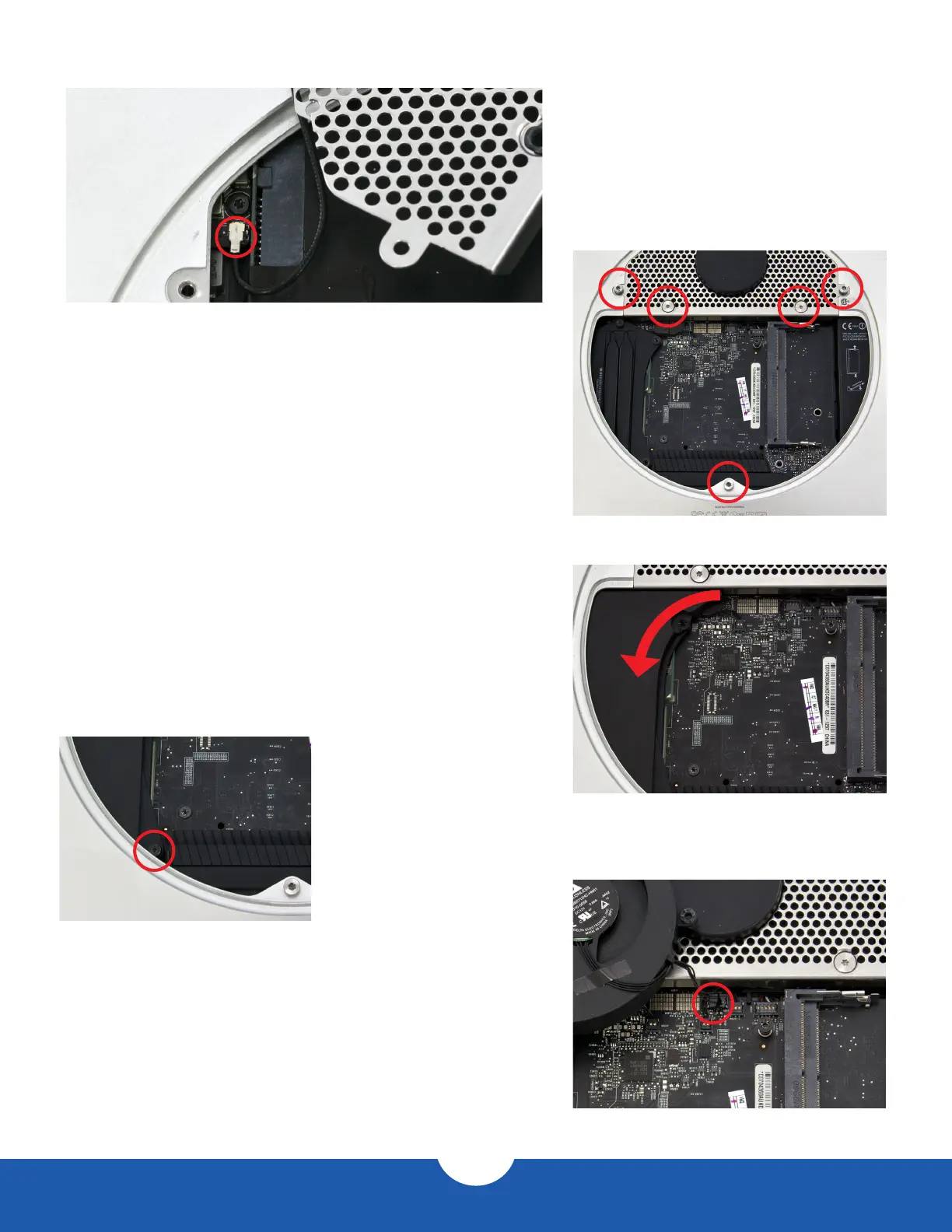

22. Connect the antenna cable, as circled
in the picture to the left.
23. Move the antenna plate back into place. Note that there is a notch
in the housing that the antenna plate needs to t into in order for
the screw holes to align properly. Once the antenna plate is aligned
properly, use a Torx T8 screwdriver to install the ve screws circled
in the picture to the right. Remember, the screw at the bottom and the
two outside screws at the top are 2mm hex screws, but the Torx T8
screwdriver will t. Be careful not to exert too much force on the hex
screws. The two inside screws at the top are standard T8.
24. Install the black plastic cowling,
rotating it slightly counter clockwise,
as shown in the picture to the right.
25. Install the short T6 screw at the
bottom of the cowling, as circled
in the picture to the left.
26. Connect the fan cable to
the logic board, as circled
in the picture to the right.
