OWC Mercury Elite-AL Pro Assembly Instructions

OWC Mercury Elite-AL Pro Dual Chapter 1 - Introduction
1.4 Port View & Cable Connections
1.5 Detailed View
1.5.1 LED Indicator
The OWC Mercury Elite-AL Pro has a single cool blue LED at the front of
the hard drive enclosure. It will illuminate blue when powered on, and
ash on drive activity (both reading and writing).
➂ ➃ ➄

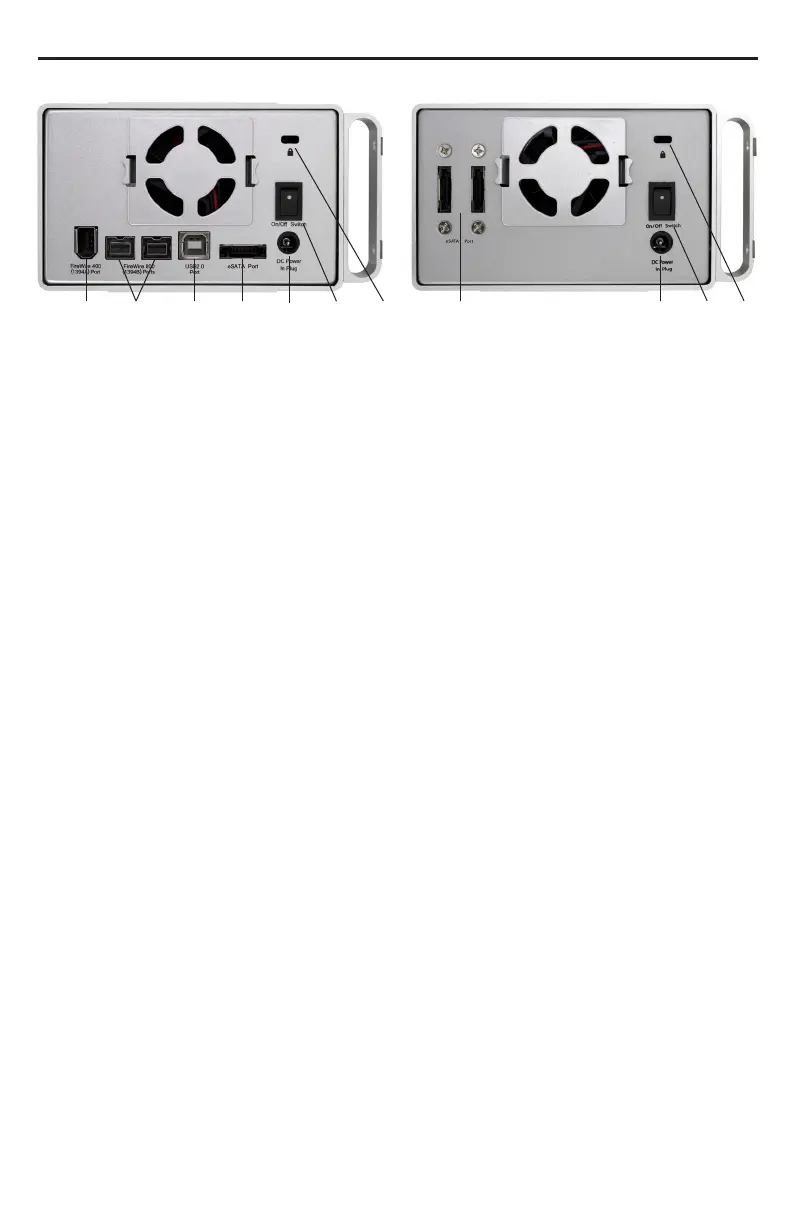

Cable Connections:
The OWC Mercury Elite-AL Pro family has multiple interfaces to work
with any computer system.
➀ FireWire 400 (1394A) Port - Connect one FireWire 400 port to your
computer using the included cable.
➁ FireWire 800 (1394B) Ports - Connect one FireWire 800 port to your
computer using the included cable and have an extra FireWire 800 port
to add peripherals with!
➂ USB Port - Connect one of your computer’s USB ports to the OWC
Mercury Elite-AL Pro here using the included cable.
➃ eSATA Port - The utmost in speed. If you’re trying to make your OWC
Mercury Elite-AL Pro the fastest it can be, attach an eSATA cable to this
port.
➄ On/O Switch - Turn the OWC Mercury Elite-AL Pro on and o here.
➅ DC IN port - Connect the include external power supply to the OWC
Mercury Elite-AL enclosure here.
➆ Security Lock - Attach a security cable to your OWC Mercury Elite-AL
enclosure here and tether it to your desk for theft prevention.
➀ ➁ ➅ ➆
➃
➄ ➅ ➆
