OWC MERCURY ELITE PRO DUAL MINI
DEVICE SETUP
6

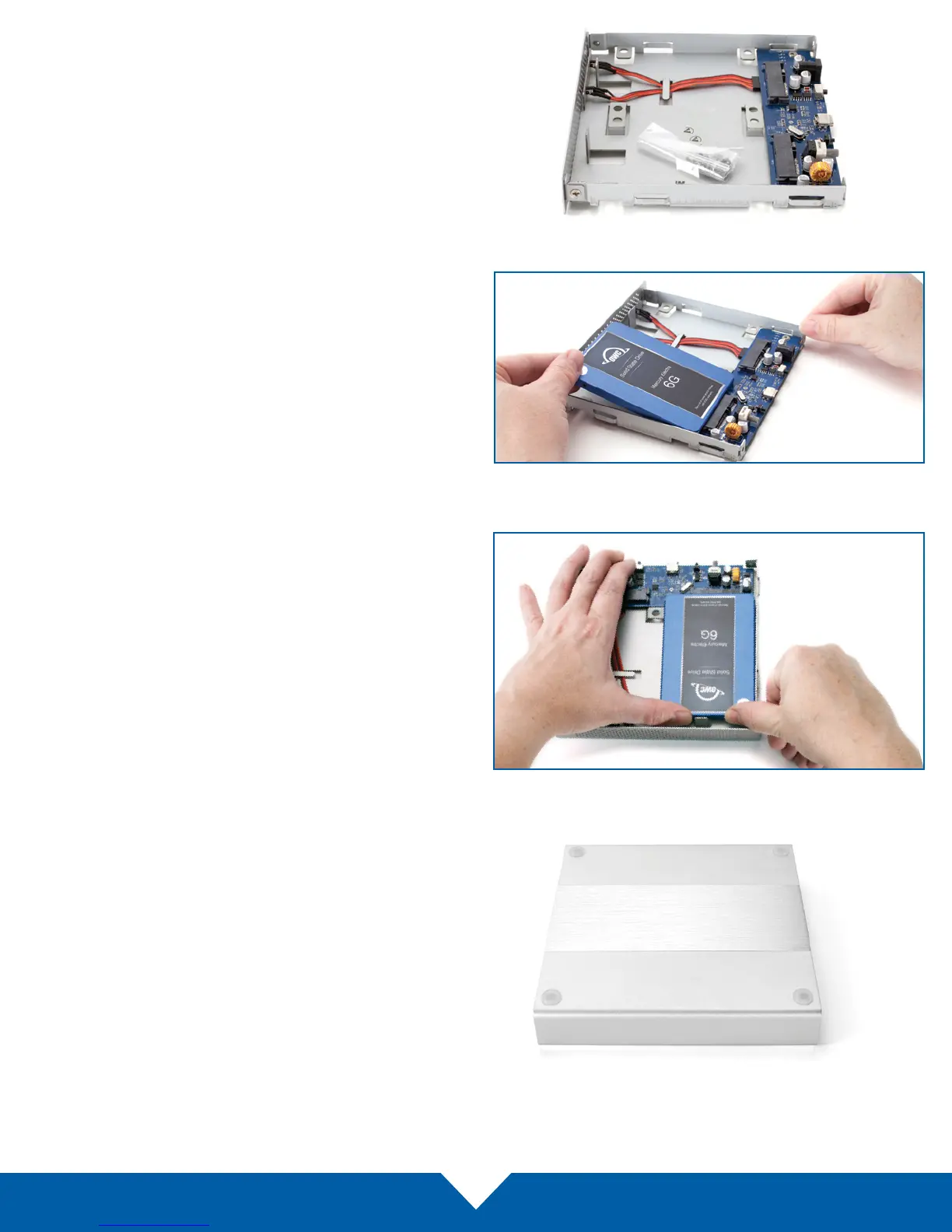

3. Pull the inner chassis the rest of the way out and
remove the screw packet.
4. Hold the rst SATA drive at a slight angle and line
up the SATA connectors on the drive with the
SATA ports on the printed circuit board, as shown
at right. Once aligned, slide the drive into the
ports just enough so the drive can be set down
at inside the inner chassis, as shown in Step 5.
5. Use your thumbs to gently press the drive forward,
until it is fully connected to the SATA ports on the
printed circuit board. Repeat Steps 4 and 5 with
the second SATA drive.
6. Flip the outer enclosure so that its rubber feet are
facing up and oriented as shown above.
