OWC Mercury Elite Pro Dual Assembly Manual & User Guide

MERCURY ELITE PRO DUAL
DEVICE SETUP
8

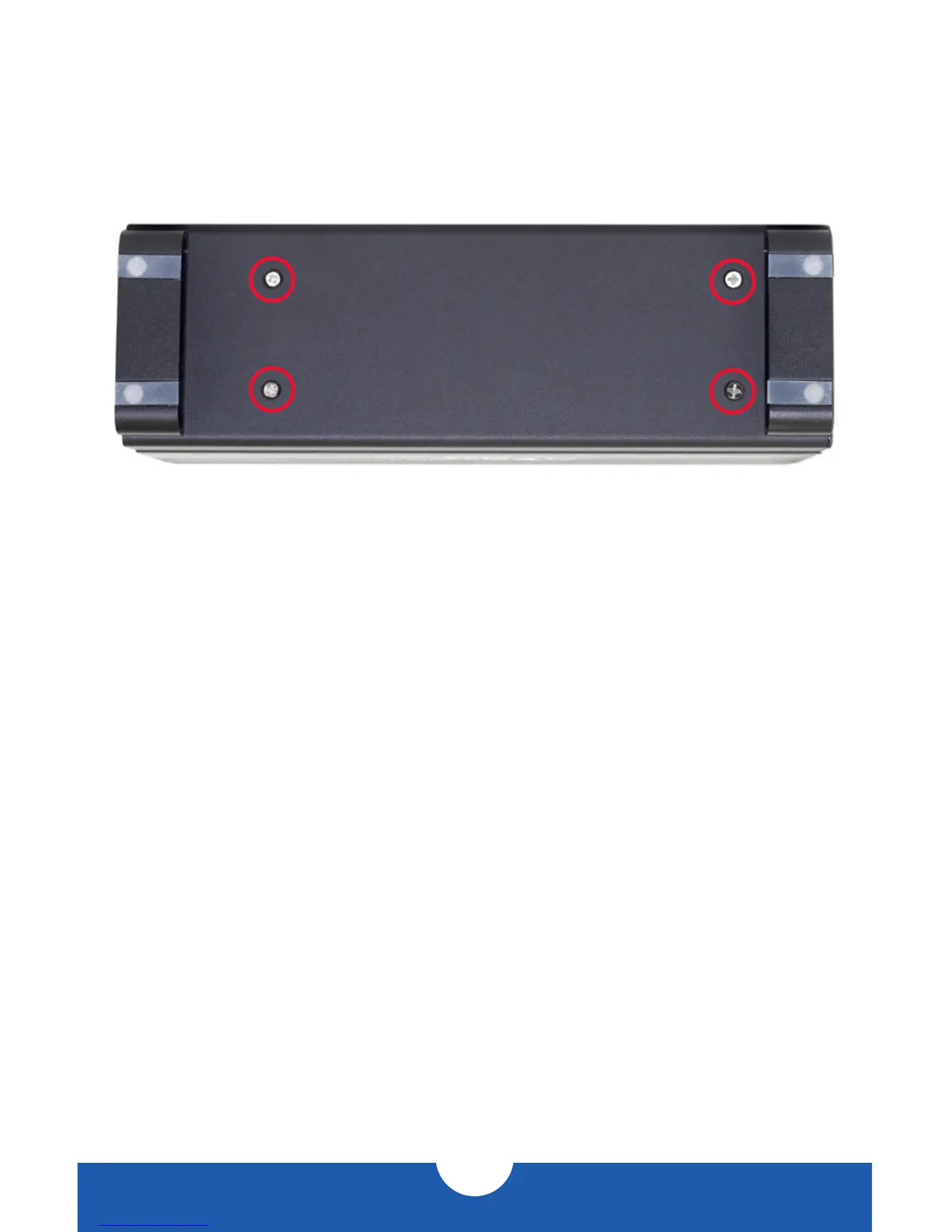

9. Once the front grill of the inner chassis sits ush with the edge of the outer enclo-
sure, turn the Mercury Elite Pro Dual on its side again. The screw holes in the outer
enclosure should line up with the screw holes in the inner chassis. Use the four
smaller screws to fasten the inner chassis to the outer enclosure, as shown below.
The assembly of the Mercury Elite Pro Dual is now complete.

OWC Mercury Elite Pro Dual Specifications

General

Hot-swap	Yes
RAID levels	0, 1
Storage drive size	3.5 \
Total storage capacity	8000 GB
Number of storage drives supported	2
Interface	Thunderbolt
Product color	Aluminum
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	5 - 42 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	8 - 90 %
Cache internal	128 MB

Weight and Dimensions

Depth	228.6 mm
Width	71.2 mm
Height	133.4 mm
