OWC Thunderbolt 3 dock User Manual

3
OWC Thunderbolt 3 Dock
Introduction

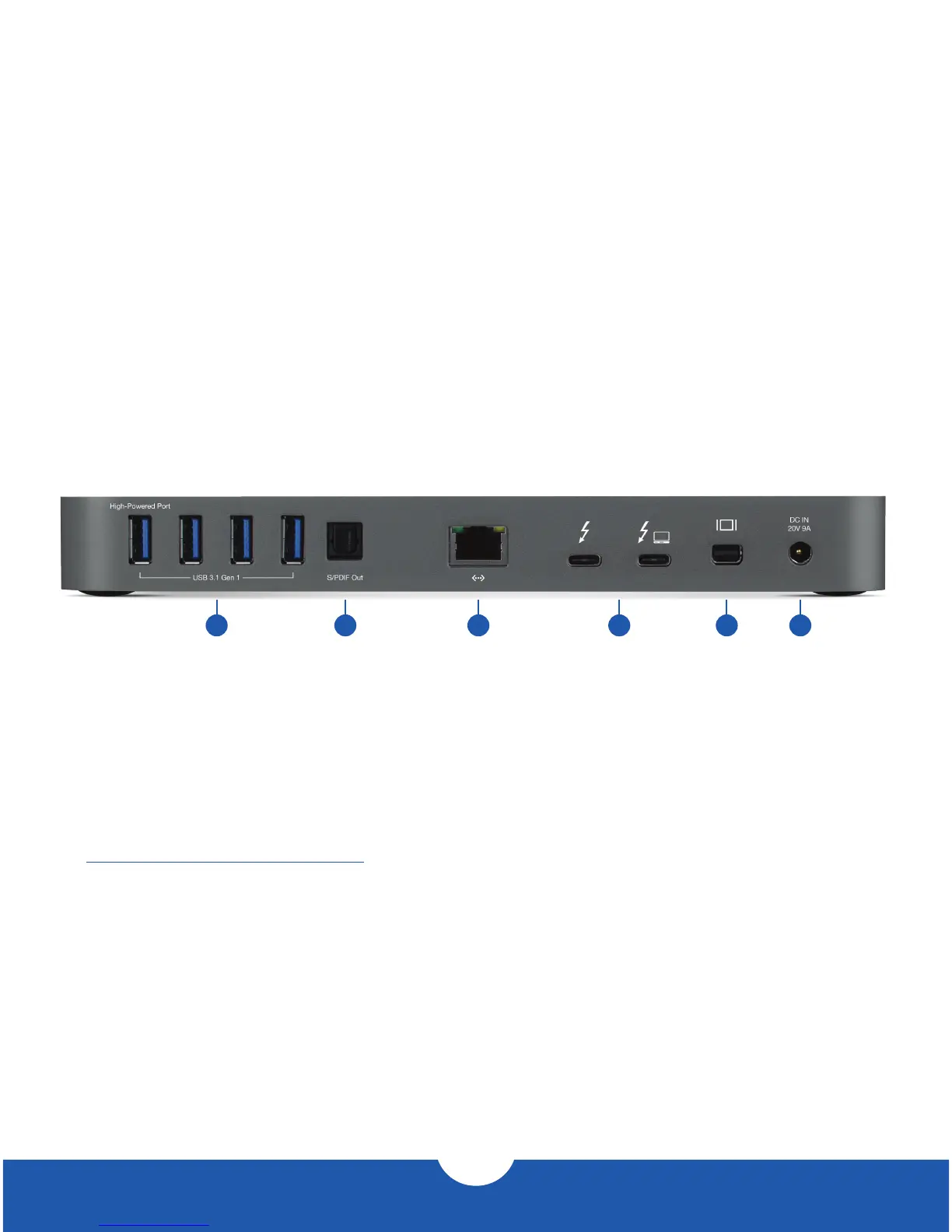

1.6 Rear View
1. USB 3.1 Gen 1 ports — Connect additional USB devices via Type-A connectors here. Left-most port is
a high-power port.
1
2. S/PDIF Digital Audio port (output only) — Connect S/PDIF device here.
3. Gigabit Ethernet port — Connect an Ethernet cable here to access a wired network.
4. Thunderbolt 3 ports — Connect one port to the Thunderbolt 3 host; you must connect to the dedicated
Power Delivery port (right) to charge the host. Use the extra port to connect up to ve additional
Thunderbolt devices, plus a display. Thunderbolt 3 supports DisplayPort 1.2 over USB-C. See Section
2.2 for display usage notes.
5. Mini DisplayPort — Connect your display here. This connection supports DisplayPort 1.2. See Section
2.2 for display usage notes.
6. DC power input — Connect the included power supply here.
2 3 4 5 61
1. USB High-Powered Ports
These USB 3.1 Gen 1 ports are each capable of providing up to 1.5A of power for charging devices such as the Apple iPad.
These ports are otherwise identical to the USB 3.1 Gen 1 ports located on the rear of the dock.
IMPORTANT:
A driver is required to enable support for the Apple SuperDrive, the Apple USB keyboard, and for iPad 1/2/3 charging.
www.owcdigital.com/support/software-drivers

OWC Thunderbolt 3 dock Specifications

General

Brand	OWC
Model	Thunderbolt 3 dock
Category	Docking Station
Language	English
