Owon XDM1000 Series Quick Guide

2.Quick Start
8
Rear Panel Overview
1
3
2

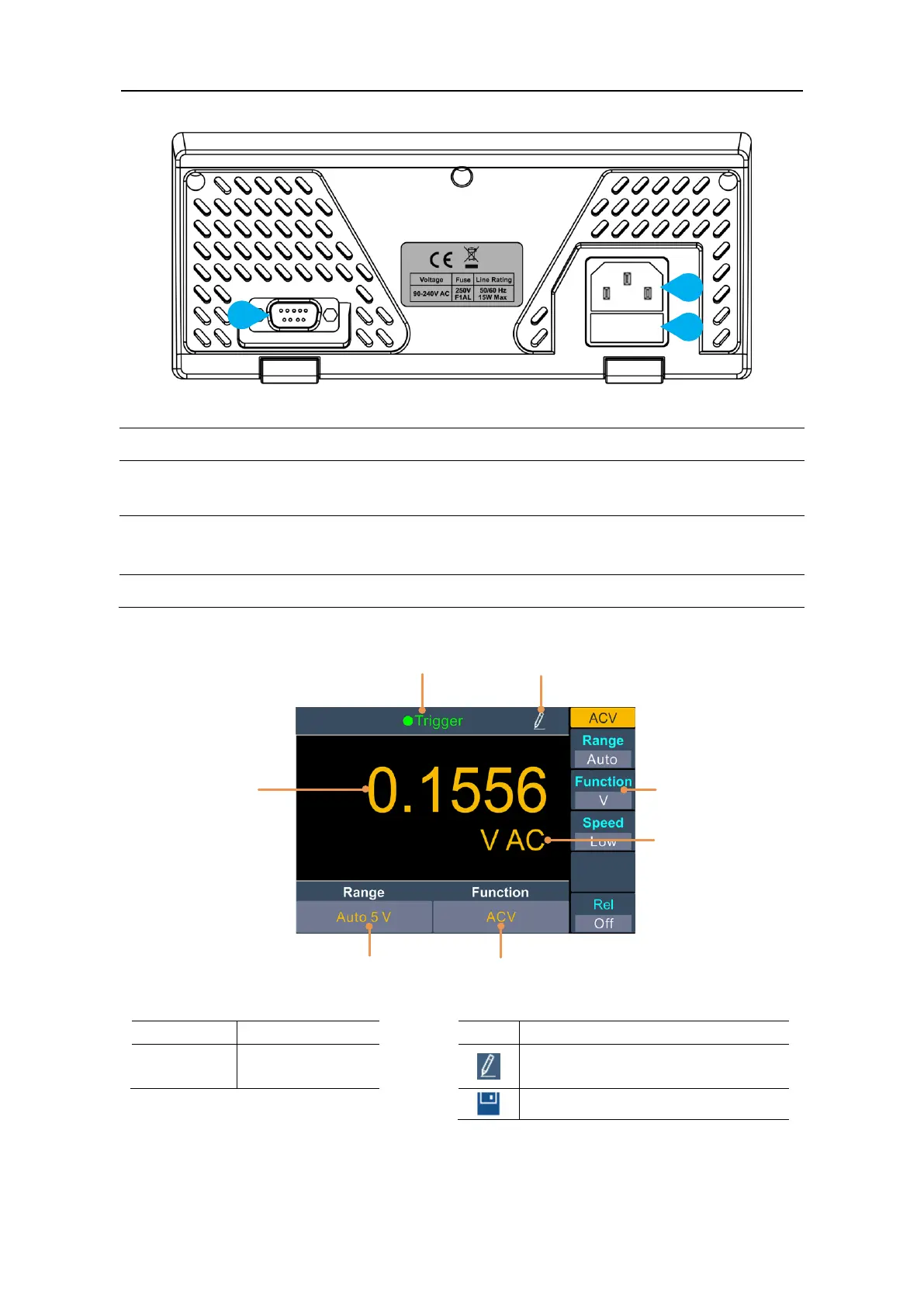

Figure 2-2 Rear panel overview(Take the -R model for instance)
Item
Name
Description
1
Communication int
erface
-R models can be connected to a computer through a serial port;
-U model can be connected to the computer via USB Device.
2
Line Fuse
The fuse rating is 250 V, F1AL. To replace the fuse, see page
15, Appendix C: Line Fuse Replacement.
3
AC Mains Input
AC mains input connector.
User Interface
Trigger Mode
Reading
Range
Function
Operation Menus
Unit
Status Icon
Figure 2-3 User interface (Single display)
Trigger Mode
Status Icon
Display
Description
Trigger
Auto trigger
Icon
Description
Auto record function is running
Manual record
