Owon XDM1000 Series User Manual

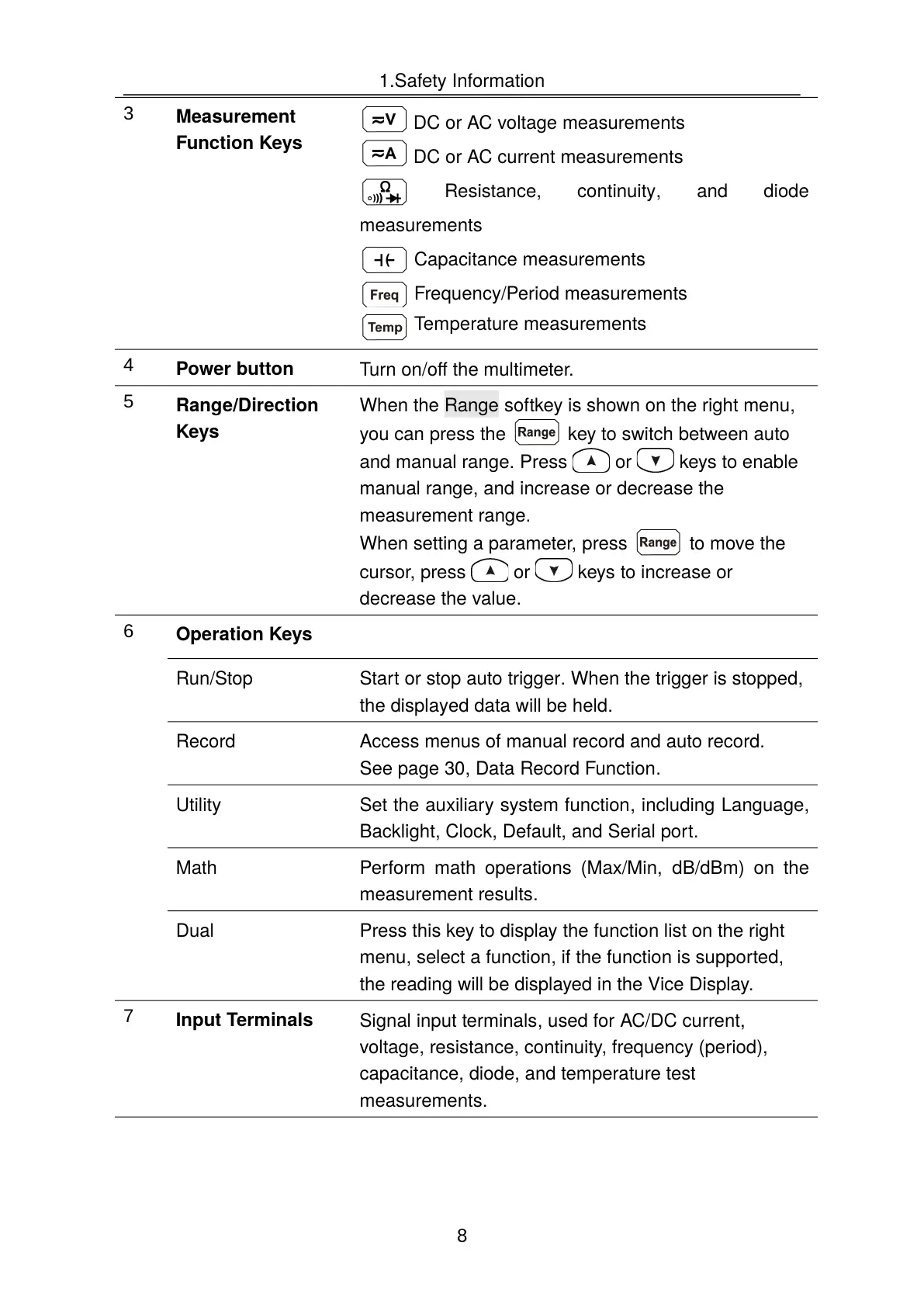

1.Safety Information
3
Measurement
Function Keys
DC or AC voltage measurements
DC or AC current measurements
Resistance, continuity, and diode
measurements
Capacitance measurements
Frequency/Period measurements
Temperature measurements
4
Power button
Turn on/o the multimeter.
5
Range/Direction
Keys
When the Range softkey is shown on the right menu,
you can press the key to switch between auto
and manual range. Press or keys to enable
manual range, and increase or decrease the
measurement range.
When setting a parameter, press to move the
cursor, press or keys to increase or
decrease the value.
6
Operation Keys
Run/Stop Start or stop auto trigger. When the trigger is stopped,
the displayed data will be held.
Record Access menus of manual record and auto record.
See page 30, Data Record Function.
Utility Set the auxiliary system function, including Language,
Backlight, Clock, Default, and Serial port.
Math Perform math operations (Max/Min, dB/dBm) on the
measurement results.
Dual Press this key to display the function list on the right
menu, select a function, if the function is supported,
the reading will be displayed in the Vice Display.
7
Input Terminals
Signal input terminals, used for AC/DC current,
voltage, resistance, continuity, frequency (period),
capacitance, diode, and temperature test
measurements.
8
