1.Safety Information
86.5 mm
64 mm
Front Panel Overview
2
4
5
1
7
3
6

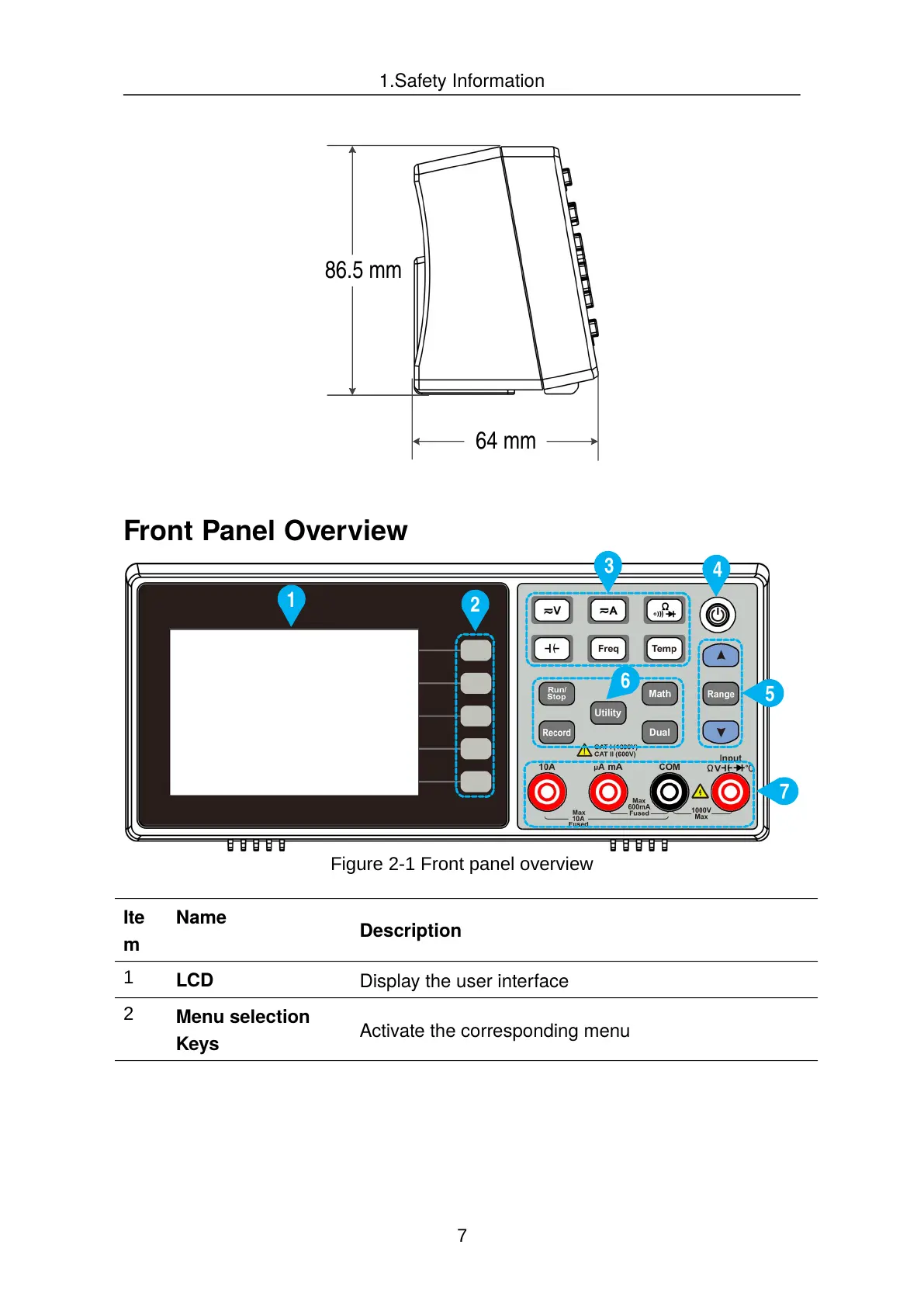

Figure 2-1 Front panel overview
Ite
m
Name
Description
1
LCD
Display the user interface
2
Menu selection
Keys
Activate the corresponding menu
7
