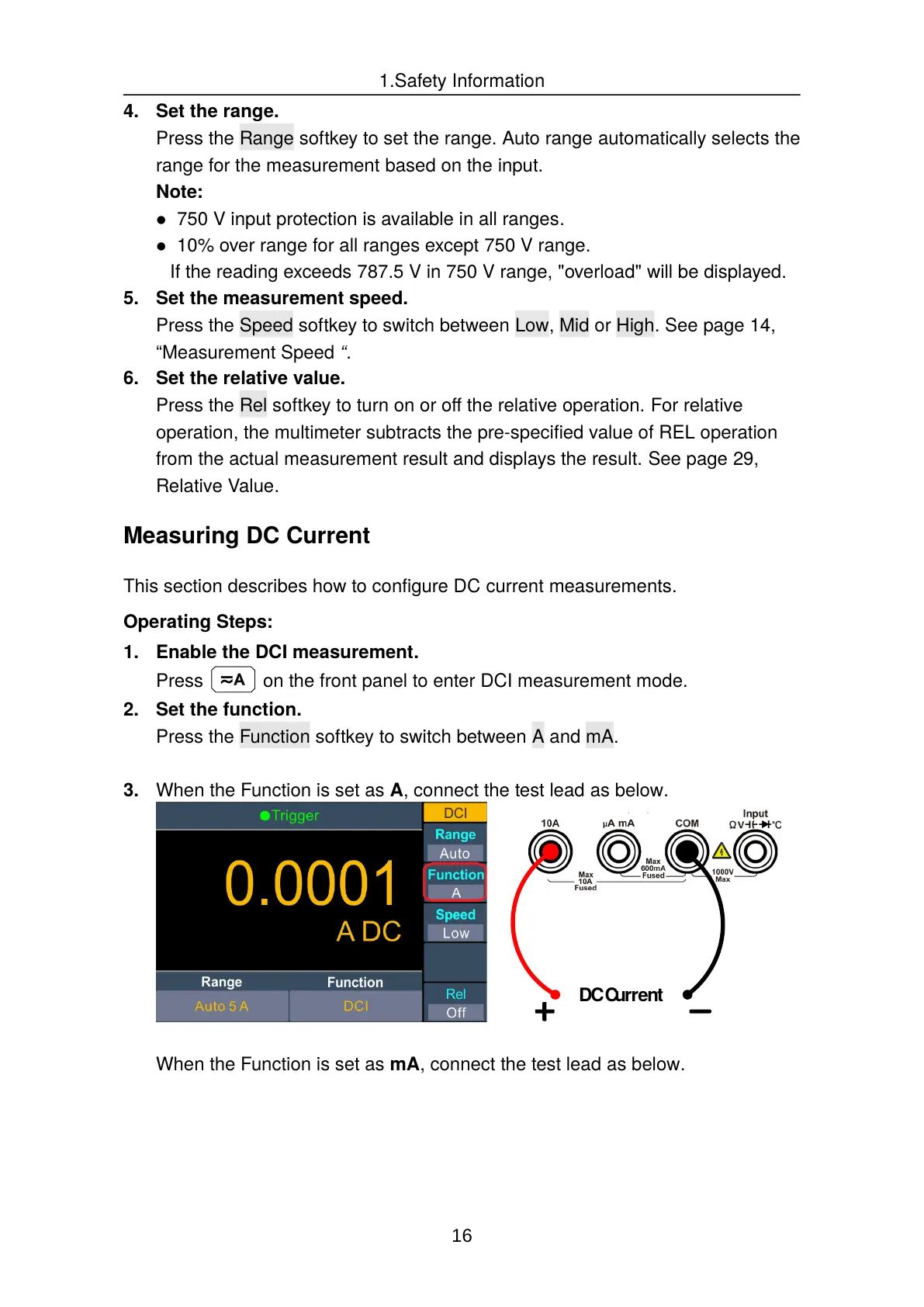

1.Safety Information
4. Set the range.
Press the Range softkey to set the range. Auto range automatically selects the
range for the measurement based on the input.
Note:
 750 V input protection is available in all ranges.
 10% over range for all ranges except 750 V range.
If the reading exceeds 787.5 V in 750 V range, "overload" will be displayed.
5. Set the measurement speed.
Press the Speed softkey to switch between Low, Mid or High. See page 14,
“Measurement Speed “.
6. Set the relative value.
Press the Rel softkey to turn on or o the relative operation. For relative
operation, the multimeter subtracts the pre-specied value of REL operation
from the actual measurement result and displays the result. See page 29,
Relative Value.
Measuring DC Current
This section describes how to congure DC current measurements.
Operating Steps:
1. Enable the DCI measurement.
Press on the front panel to enter DCI measurement mode.
2. Set the function.
Press the Function softkey to switch between A and mA.
3. When the Function is set as A, connect the test lead as below.
DC Current
When the Function is set as mA, connect the test lead as below.
16
