1.Safety Information
5. Set the measurement speed.
Press the Speed softkey to switch between Low, Mid and High. See page 14,
Measurement Speed .
6. Set the relative value.
Press the Rel softkey to turn on or o the relative operation. For relative
operation, the multimeter subtracts the pre-specied value of REL operation
from the actual measurement result and displays the result. See page 29,
Relative Value.

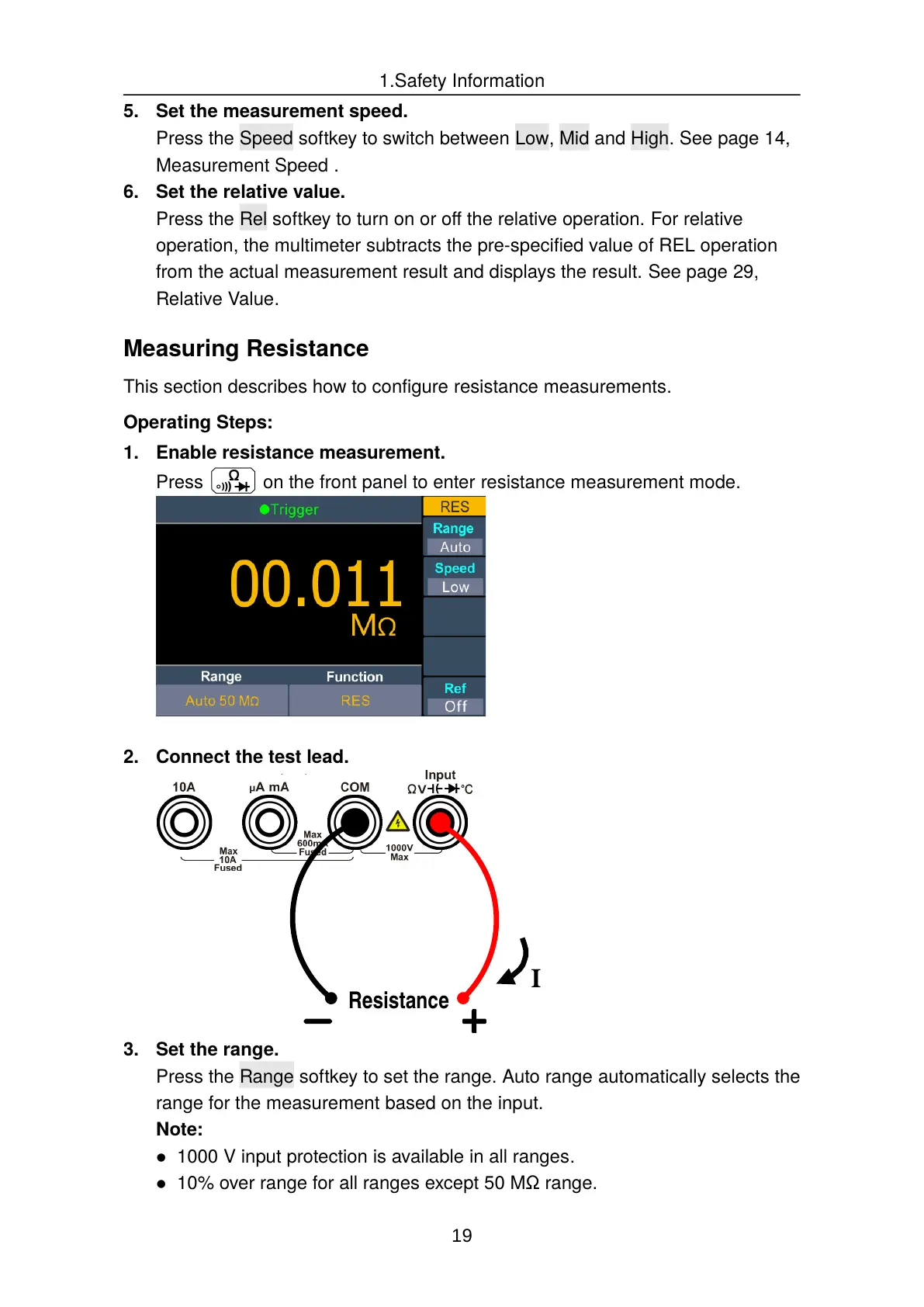

Measuring Resistance
This section describes how to congure resistance measurements.
Operating Steps:
1. Enable resistance measurement.
Press on the front panel to enter resistance measurement mode.
2. Connect the test lead.
3. Set the range.
Press the Range softkey to set the range. Auto range automatically selects the
range for the measurement based on the input.
Note:
1000 V input protection is available in all ranges.
10% over range for all ranges except 50 MΩ range.
