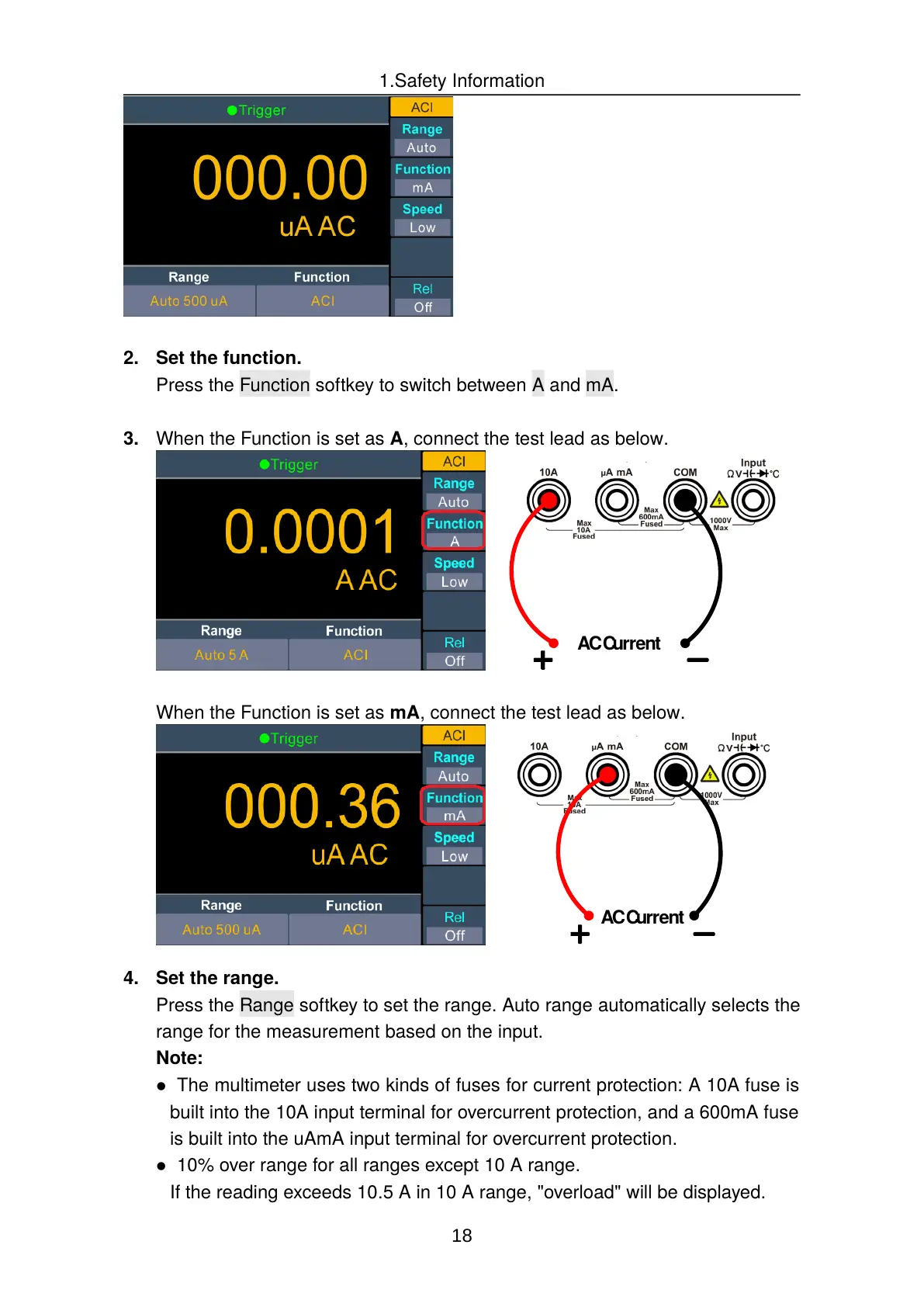

1.Safety Information
2. Set the function.
Press the Function softkey to switch between A and mA.
3. When the Function is set as A, connect the test lead as below.
AC Current
When the Function is set as mA, connect the test lead as below.
AC Current
4. Set the range.
Press the Range softkey to set the range. Auto range automatically selects the
range for the measurement based on the input.
Note:
 The multimeter uses two kinds of fuses for current protection: A 10A fuse is
built into the 10A input terminal for overcurrent protection, and a 600mA fuse
is built into the uAmA input terminal for overcurrent protection.
 10% over range for all ranges except 10 A range.
If the reading exceeds 10.5 A in 10 A range, "overload" will be displayed.
18
