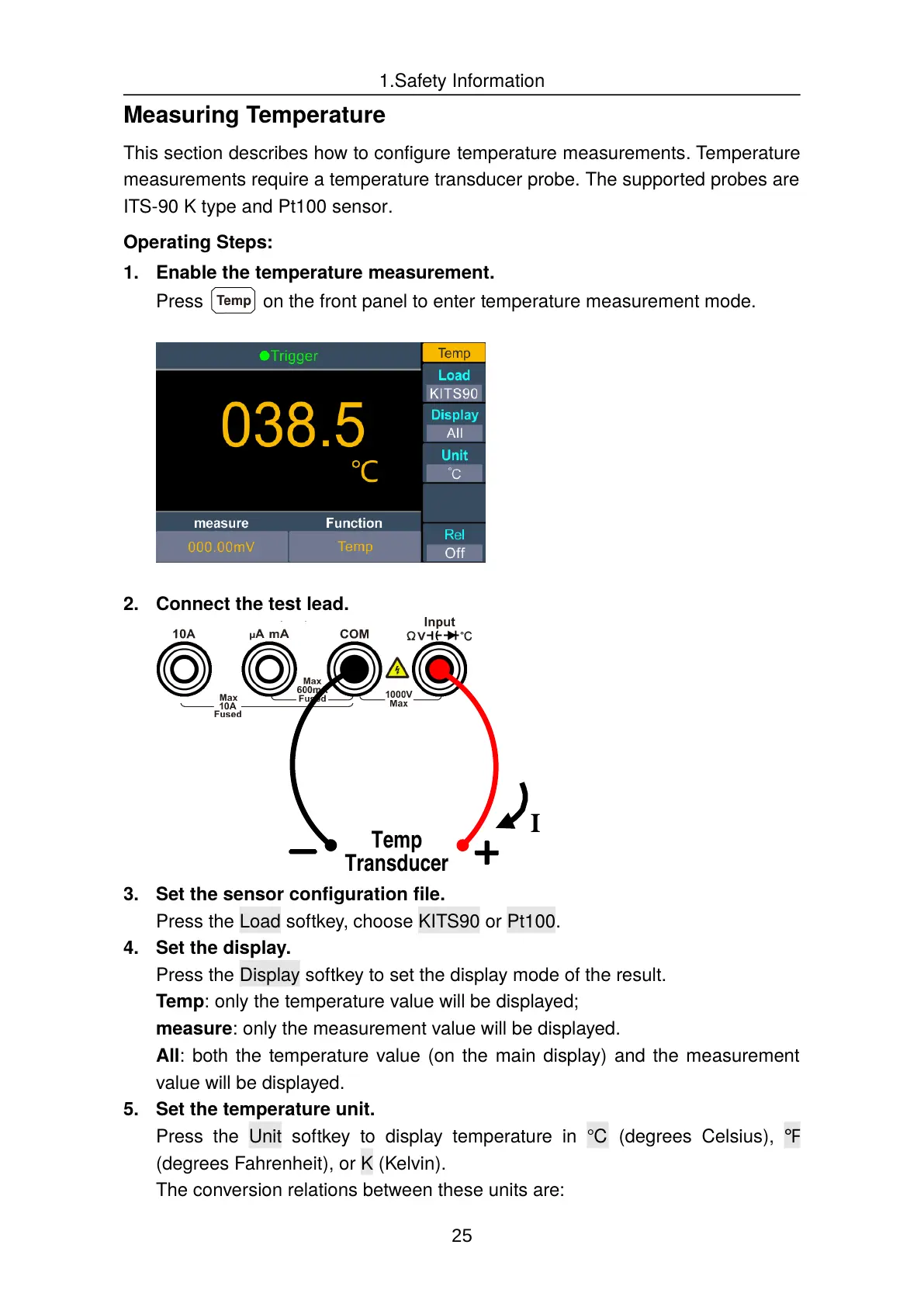

Measuring Temperature
This section describes how to congure temperature measurements. Temperature
measurements require a temperature transducer probe. The supported probes are
ITS-90 K type and Pt100 sensor.
Operating Steps:
1. Enable the temperature measurement.
Press on the front panel to enter temperature measurement mode.
2. Connect the test lead.
3. Set the sensor conguration le.
Press the Load softkey, choose KITS90 or Pt100.
4. Set the display.
Press the Display softkey to set the display mode of the result.
Temp: only the temperature value will be displayed;
measure: only the measurement value will be displayed.
All: both the temperature value (on the main display) and the measurement
value will be displayed.
5. Set the temperature unit.
Press the Unit softkey to display temperature in ℃ (degrees Celsius), ℉
(degrees Fahrenheit), or K (Kelvin).
The conversion relations between these units are:
