Table 4. PoE cable connections 14C0147A
Signal Name
Wire Colour
J1
J2
J3
Tx+
Green/White
1
3
N/A
Tx-
Green
2
6
N/A
Rx+
Orange/White
3
1
N/A
Supply
Brown & White
4
N/A
1 & 2
Rx+
Orange
6
2
N/A
Supply Return
Blue & Black
7
N/A
3 & 4
Table 5. Cigar plug to M12 4 Pole Male pin 14C0149A
Signal Name
Wire Colour
J1
J2
Supply
Brown
1
Centre Core
Supply
White
2
Centre Core
Supply Return
Blue
3
Outer Contacts
Supply Return
Black
4
Outer Contacts

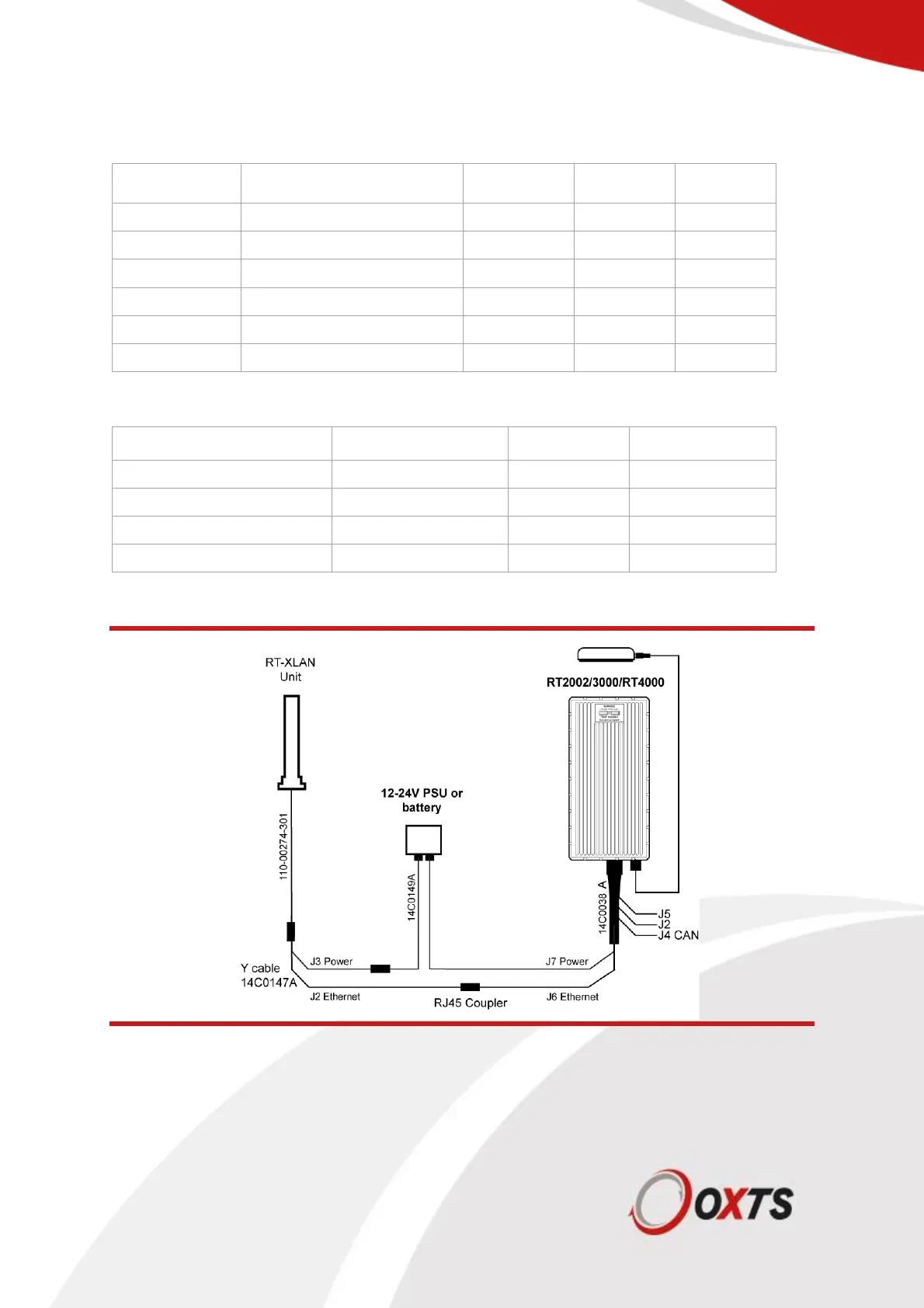

Figure 8. Wiring diagram for RT1003 / RT2002 / RT3000 / RT4000
Note: connections not relevant to the RT-XLAN are not shown in this diagram. The RT connections
shown are for an RT1003 / RT3000 v2 / RT4000 unit. With an RT2002, the RT-Range connections
are made directly to the front panel of the RT2002 instead of through the 14C0038A user cable.
