Connection to RTs via an RT Range S Hunter
or Target Box
When connecting the RT-XLAN to an RT Range S Hunter or Target box, simply connect the PoE
Ethernet to M12 cable from the RT-XLAN to the front of the RT-Range S as shown in Figure 9. This
provides power to the RT-XLAN as well as Ethernet as in the RT3000 v3.

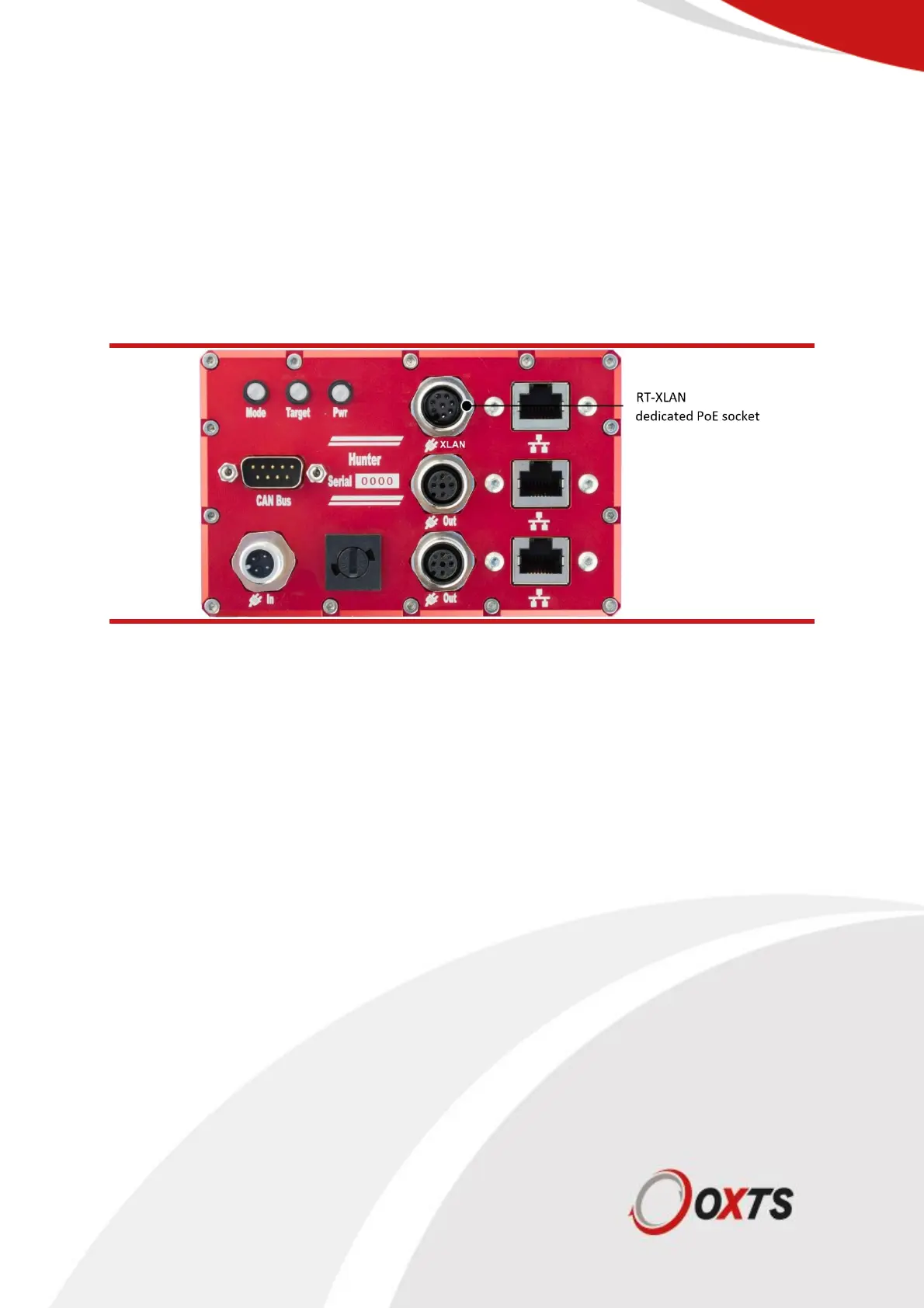

Figure 9. Wiring connections to the RT-Range S system
Note: Connections to the previous generation RT-Range system are described on page 10 of this
manual.
Connection to RTs via an original RT Range
system
When using the RT-XLAN with the original RT-Range system it will be necessary to use the Y cable
converter kit which can be additionally ordered for this purpose.
To use the Y converter cable with the RT-XLAN it must first be coupled to the PoE Ethernet to M12
cable (supplied with the RT-XLAN) to complete the solution.
To use the RT-XLAN with an original RT-Range system, connect the (J2) RJ45 plug on the Y cable to
a spare Ethernet socket located on the front of the RT-Range Hunter or Target unit and the (J3) M12
plug of the Y cable to the spare power output of the RT-Range Hunter or Target unit as shown in
