Oxygen 8 A16 - Vertical Coupled Accessories

Installation Manual Nova Series
11

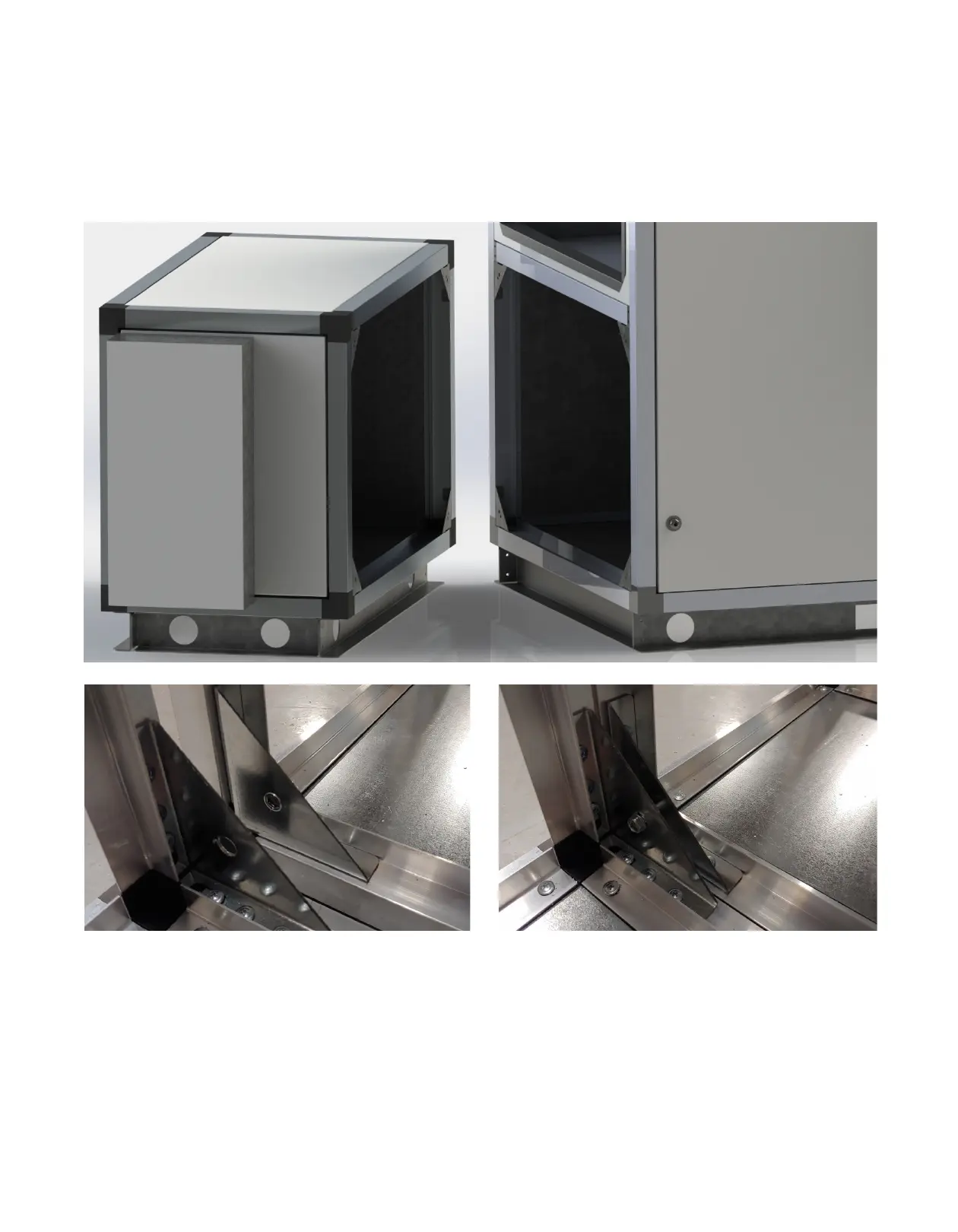

2.6.2 Vertical Coupled Accessories
Base mounted accessories that are connect to a duct connection in the lower position of the unit will come with
matching base rails.
Accessories that are to be connected to a duct connection in the upper position will need to be supported
externally. This can also be done with Unistrut or similar.
1 2
