Installation Manual Nova Series
9
2.4.2 Side Doors
When a Nova unit is ordered with side doors, there is no access to install hanging brackets and the unit must
be supported from below as seen in the image. The sizing of the supports is to be designed by the installing
contractor.
2.5 Vertical Installation
A floor mounted Nova unit will ship with an installed base rail. These units can be installed directly on the floor or a
housekeeping pad.

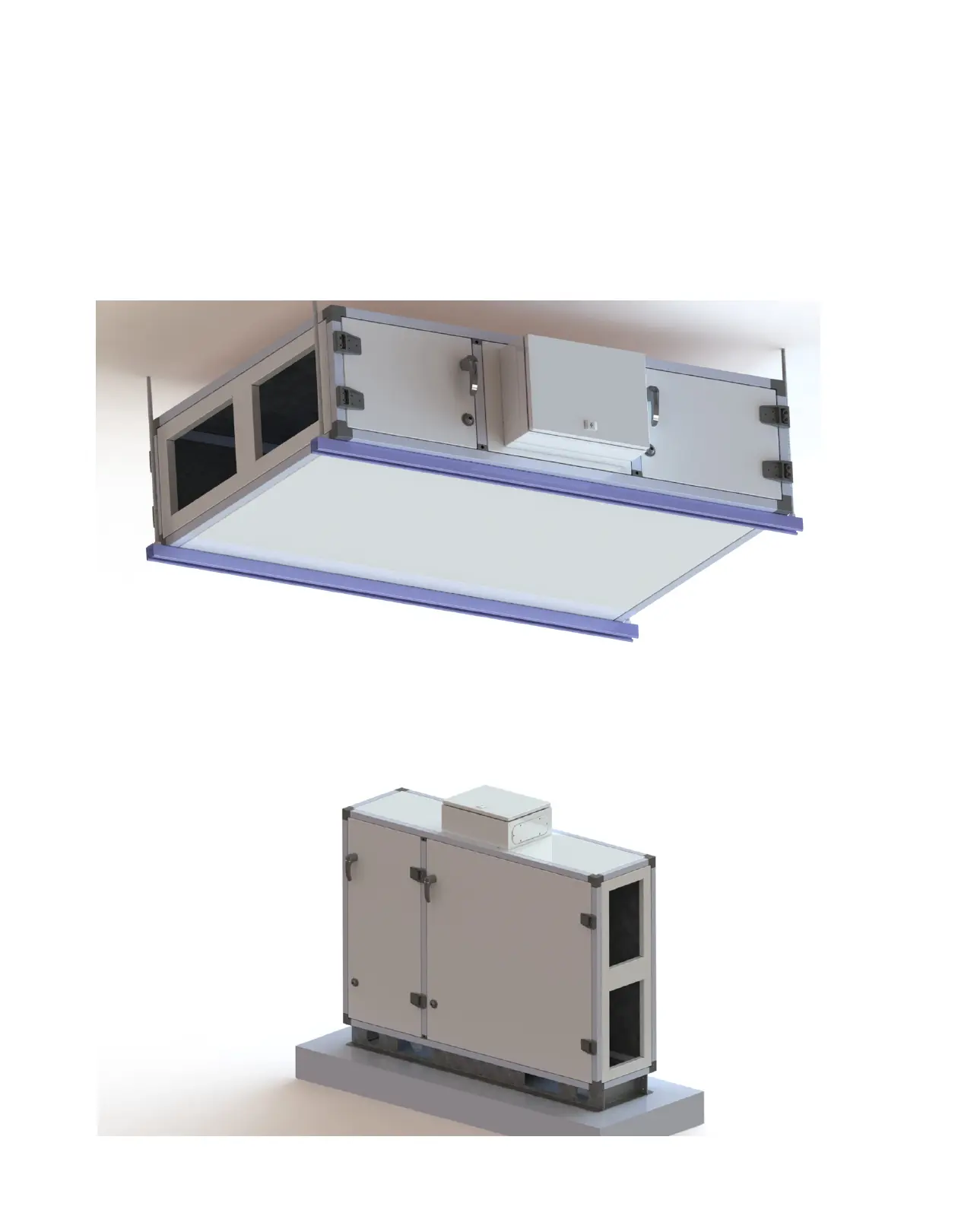

Unit with Side Doors and Unistrut
Vertical Unit with Base Rails
on Housekeeping Pad
