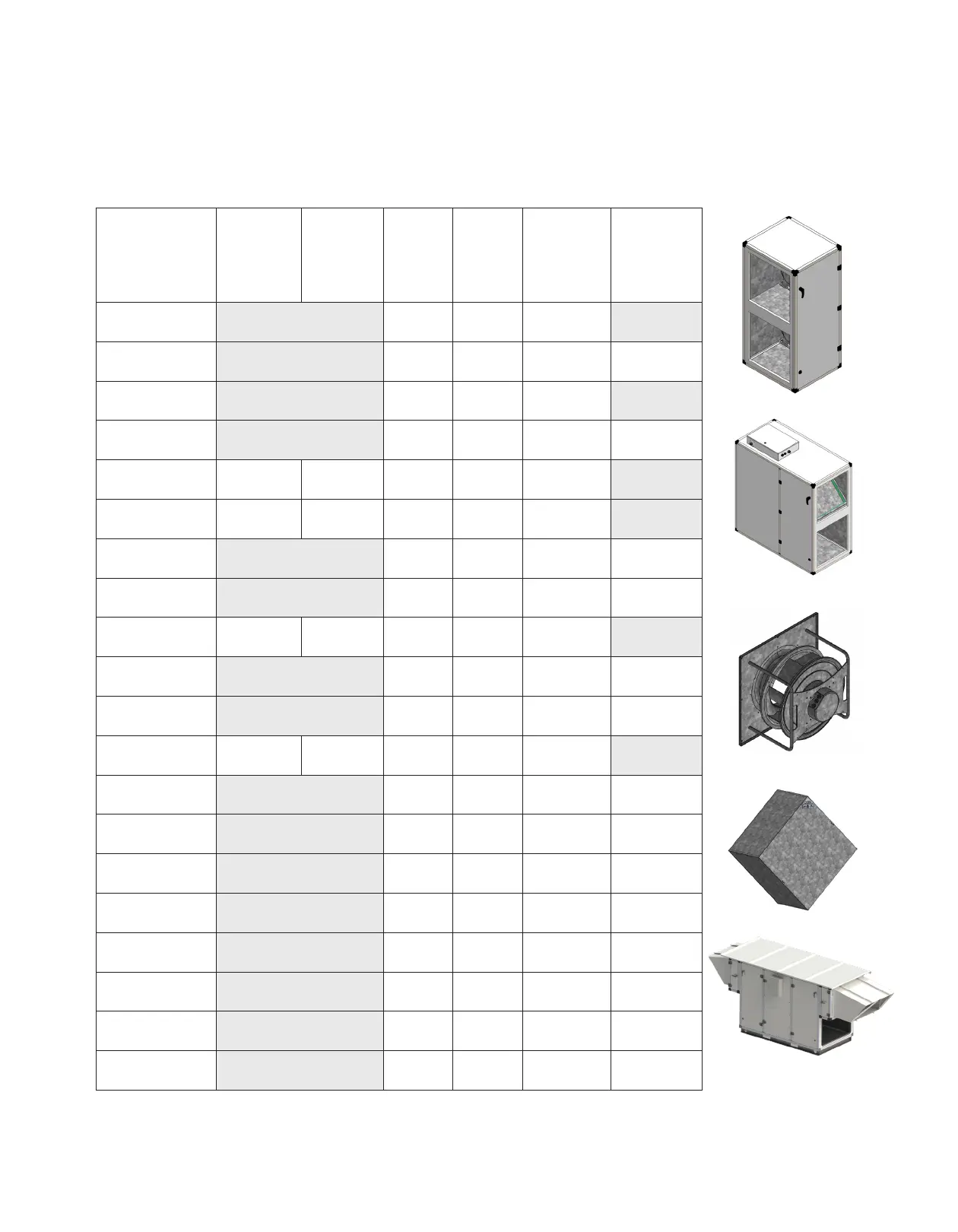

2.3 Weights
Model Fan
Section
(A) lbs.
Core
Section
(B) lbs.
Fan
(C)
lbs.
Core
(D)
lbs.
Indoor
Total
Weight
(H/V) lbs.
Outdoor
Total
Weight*
lbs.
A16 Shipped as 1 Piece 27 x 2 28 320/330
A18 Shipped as 1 Piece 27 x 2 28 380/390 490
B20 Shipped as 1 Piece 29 x 2 45 425/435
B22 Shipped as 1 Piece 29 x 2 45 470/480 610
C20 215 360 38 x 2 72 550/575
C20 - Bypass 260 470 38 x 2 72 695
C22 Shipped as 1 Piece 38 x 2 72 600/615 770
C22 - Bypass Shipped as 1 Piece 38 x 2 72 770 960
C24 255 390 51 x 2 88 630/645
C26 Shipped as 1 Piece 51 x 2 88 675/690 860
C26 - Bypass Shipped as 1 Piece 51 x 2 88 880 1100
C30 325 450 75 x 2 55 x 2 755/775
C32 Shipped as 1 Piece 75 x 2 55 x 2 810 1000
C32 - Bypass Shipped as 1 Piece 75 x 2 55 x 2 1030 1275
C40 Shipped as 1 Piece 38 x 4 72 x 2 905 1120
C40 - Bypass Shipped as 1 Piece 38 x 4 72 x 2 1225 1490
C48 Shipped as 1 Piece 51 x 4 88 x 2 1055 1300
C48 - Bypass Shipped as 1 Piece 51 x 4 88 x 2 1395 1690
C58 Shipped as 1 Piece 38 x 6 72 x 3 1265 1530
C70 Shipped as 1 Piece 51 x 6 88 x 3 1495 1790
A
B
C
D
*Outdoor total weights include dampers in casing, hoods, roof and base rail.
Outdoor Unit with
Hoods, Base Rail
and Dampers
