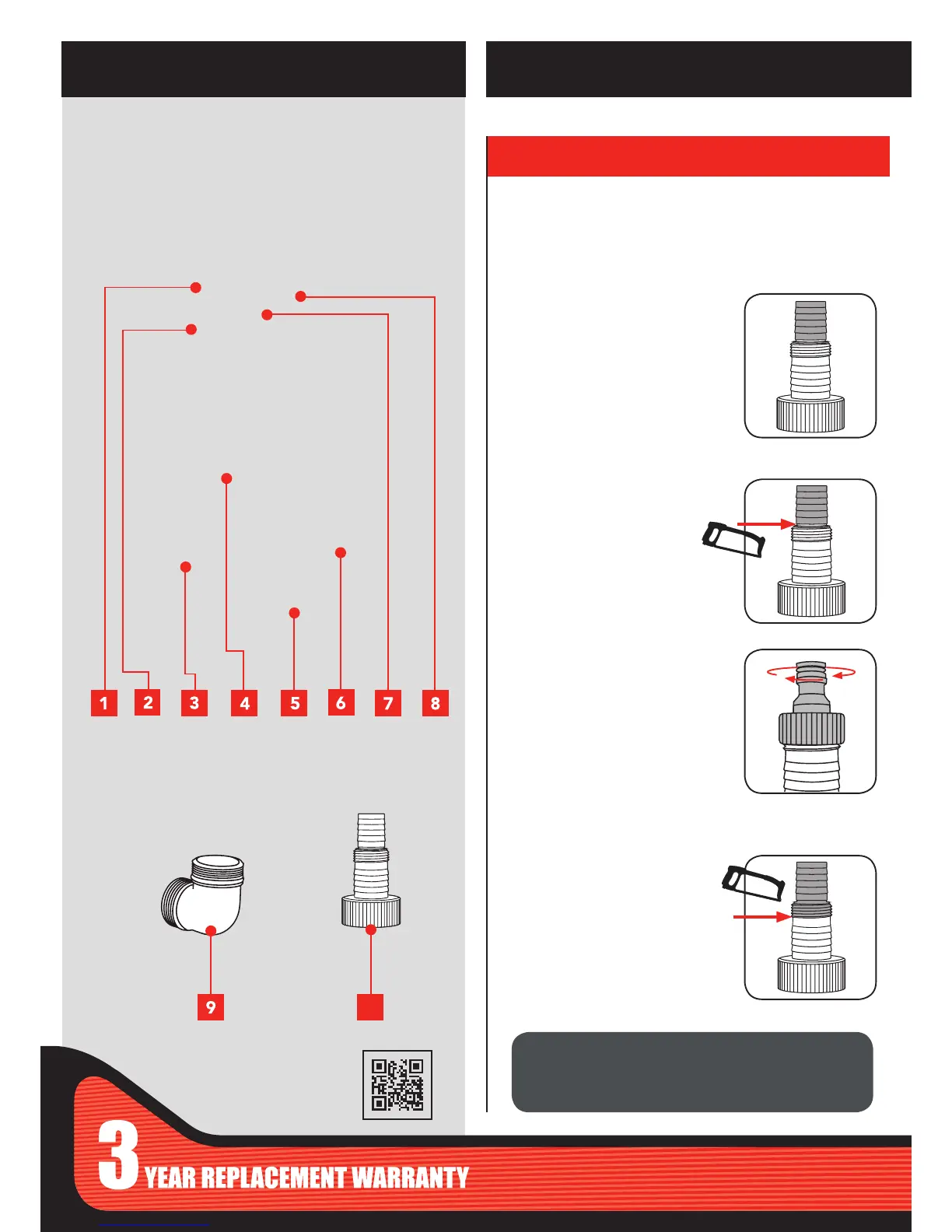

Ozito PSDW-350 - Setup and Preparation; Universal Adaptor Fitting

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
1. Float Switch Cable
2. Float Switch Adjustor
3. Float Switch
4 Pump Housing
5 Suction Base
6 Outlet
7 Power Cable
8 Handle
SUBMERSIBLE PUMP
KNOW YOUR PRODUCT
1. UNIVERSAL ADAPTOR
Preparing the Universal Adaptor
The universal adaptor is designed to t various sizes of pipes and
ttings.
9. L-Shape Connector
10. Universal Adaptor
ACCESSORIES
SETUP & PREPARATION
To t a 25mm (1’’) tap adaptor
(temporary application only)
1. Cut the universal adaptor using a
hack saw
2. It is now ready to be tted with a
25mm (1’’) screw on tap adaptor
(not included).
To t a 32mm (1¼’’)
rigid pipe or exible tubing
(temporary or permanent application)
. Cut the universal adaptor using
a hack saw. It is now ready to be
tted with a 32mm (1¼’’) rigid pipe
or exible tubing (not included).
To t a 25mm (1’’) rigid pipe or
exible tubing
(temporary or permanent application)
. No cutting of the universal adaptor
is required. It is ready to be tted
with a 25mm (1’’) rigid pipe or
exible tubing (not included).
Ensure the pump is disconnected from the power supply
before performing any of the following operations.
10
NOTE: TO USE THE PUMP IN PERMANENT
INSTALLATIONS WITH RIGID PIPES, INSTALL A
NON-RETURN VALVE TO AVOID THE FLUID BEING
RE-CIRCULATED ONCE THE PUMP HAS STOPPED.
