3

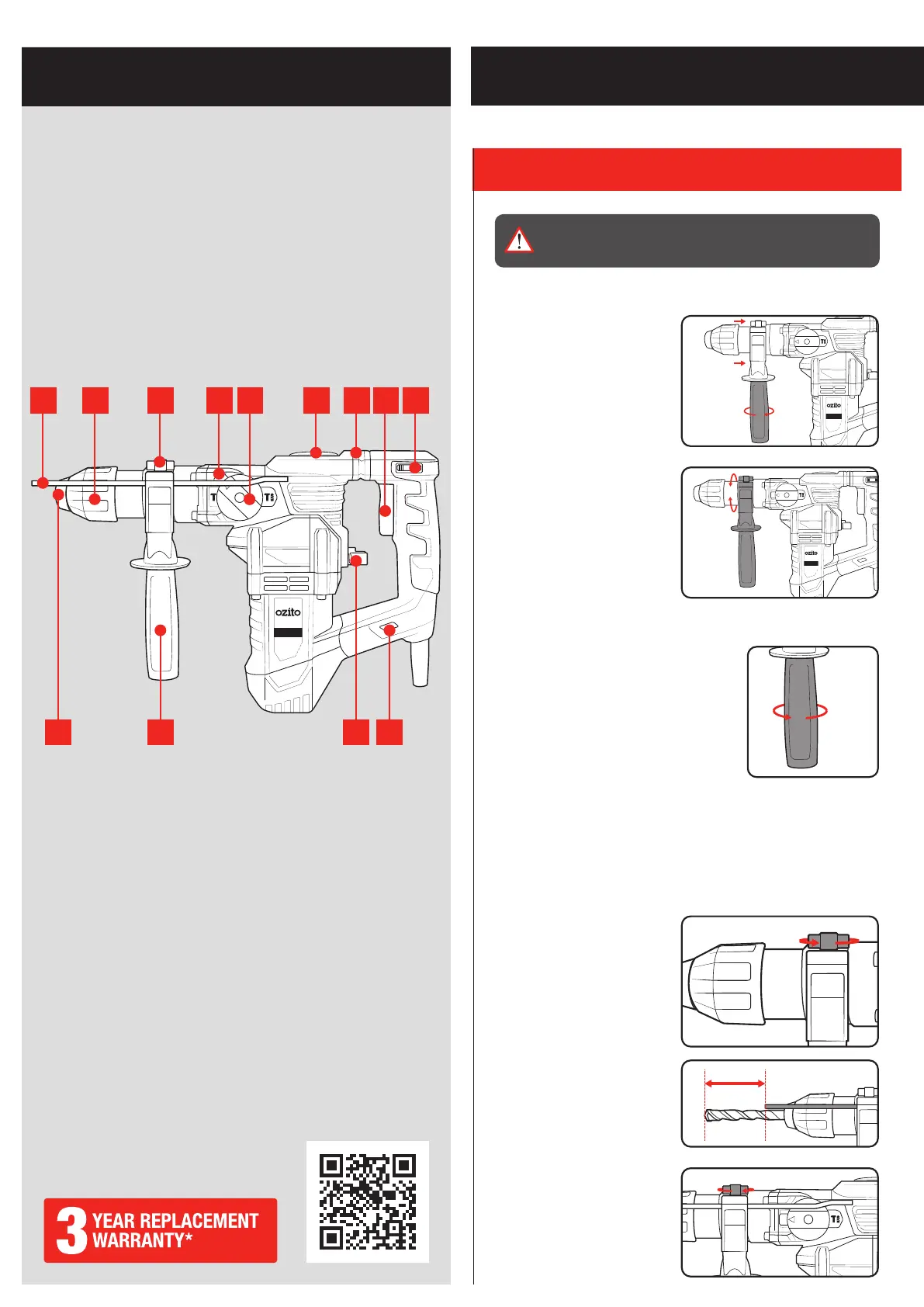

1. Depth Rod
2. Accessory Locking Sleeve
3. Depth Rod Locking Screw
4. Side Mode Locking Button
5. Side Mode Dial
6. Grease Cap
7. Vibration Control Handle
8. On/Off Trigger
9. Speed Dial
10. Indicator LED
11. Rear Mode Selector
12. Side Handle
13. SDS+ Accessory Holder
ROTARY HAMMER DRILL
KNOW YOUR PRODUCT
1. ACCESSORIES
SETUP & PREPARATION
Attaching The Side Handle
1. Loosen the side handle by
rotating the lower section
anti clockwise and then slide
over the chuck and onto the
neck of the drill.
2. Rotate into the desired
handle position and then
push backwards so that
the notch below the chuck
inserts into one of the
grooves in the upper handle.
Note: Ensure the handle is
pushed all the way back to
avoid interference with the chuck.
3. Secure in position by rotating the lower
section of the handle clockwise.
Attaching The Depth Rod
The depth rod allows you to drill to a pre-determined depth.
1. Loosen the depth rod
securing nut then insert the
depth rod.
2. Adjust the depth rod so that
the drill bit extends beyond
the end of the depth rod to
the required drilling depth.
3. Tighten the depth rod
securing nut to lock the
depth rod into place.
1 2 3 6 7 8 94 5
1012 1113
WARNING! ENSURE THE TOOL IS TURNED OFF AND
DISCONNECTED FROM THE POWER SUPPLY BEFORE
PERFORMING ANY OF THE FOLLOWING OPERATIONS.
ONLINE MANUAL
Scan this QR Code with your mobile
device to take you to the online manual.
