STEP 2: ERECT THE INNER TENT FRAME
STEP 4: SECURE FLY TO INNER TENT
STEP 6: ALWAYS PEG OUT AND USE
GUY ROPES
STITCH LINE
TENT OWNERS MANUAL
B LOCK OUT FAST FR AME 6 P ER S ON

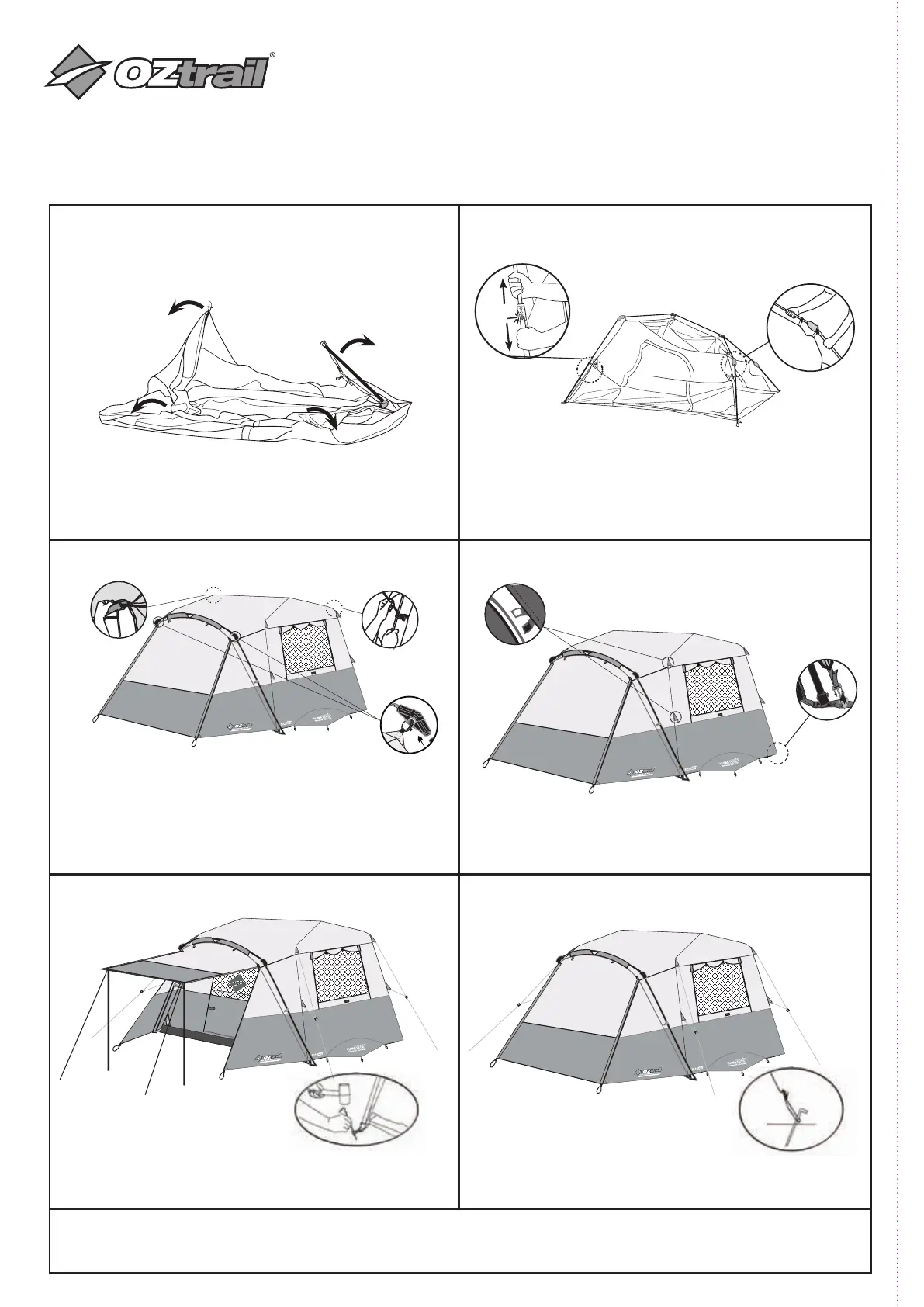

STEP 1: LAYOUT THE INNER TENT
STEP 3: PUT ON THE FLY
• Unfold the inner tent and outstretch over a flat, clear area
• Arrange the door so it is facing your desired area for entry & exit
• Place rain fly over inner tent so red webbing on fly faces rear of tent
• Install rear Vestibule pole by threading through sleeve on underside of fly above
rear door and inserting ends into eyelets on inner tent webbing clips
• Install Front Vestibule Pole by placing through sleeve located above the door on
outside of rain fly
• Insert Vestibule pole into black plastic molding
• Insert Steel Portico Pole into opposite side of black molding
• Connect base of Portico Pole to ring and pin on Grey Webbing stitched to
Inner tent corner
• Secure rain fly to tent with Velcro tabs located on underside
of rain fly
• Connect the fly to the tent using red and grey buckles on
tent corners
• Locate the Lower Leg section of the frame
• Raise to near vertical orientation
• Extend the leg section until the locking button clicks into the
locked position
• Repeat on other legs.
STEP 5: ASSEMBLE THE AWNINGS
PACK UP:
TO TAKE DOWN THE TENT, REVERSE THE PREVIOUS STEPS
• Use the awning poles and additional ropes to suspending
the door panel overhead
• Peg out the tent and fly around the perimeter
• In windy and rainy conditions, awnings must be
dismantled, and doors must be closed, and guy ropes
must be set out
