paasche MIL - Parts Identification and Specifications; Airbrush Parts List; Optional Airbrush Items; Paint Bottle Assemblies

3
DA400R AIR COMPRESSOR (1/6 H.P.)
1/6 H.P. Piston Compressor with Auto shutoff. Compressor shuts off when airbrush is not
in use. Operating pressure 30 - 50 PSI depending on airbrush being used, delivers up to
55 psi.. 110-120VAC, 1 Ph, 60 Hz, 42L/Min. (1.48CFM), 1720 rpm. With R-75 Regulator
& Moisture Trap included. Shipping Weight: 13 lbs. 9 oz. (6.16 kgs)
D500SR AIR COMPRESSOR (1/8 H.P.), ETL Listed with Switch & R-75 Regulator
Economical and suitable for all airbrushes spraying properly thinned uids. Maximum 20
- 35 P.S.I. operating pressure depending on airbrush being used. The Paasche D500SR
is an oilless piston unit and comes with the R-75 Regulator/Filter with gauge. It operates
on 110-120 Volt, 1 phase, 60Hz, and delivers .4 C.F.M. @ 20 P.S.I. R75 Regulator will
regulate up to 35 P.S.I. depending on usage (intermittent or constant) and size of airbrush
being used. Shipping Weight: 8 lbs. 12 oz. (3.97kg)
Printed in the USA

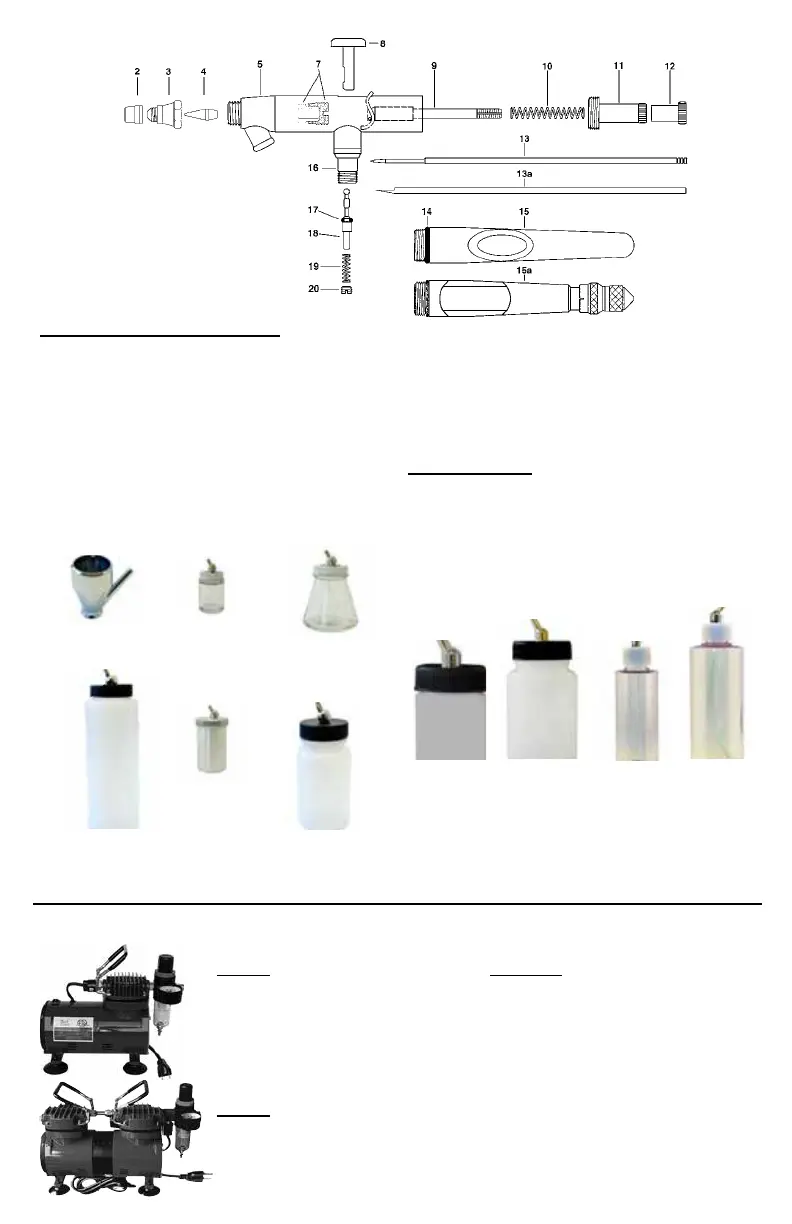

NO. PART DESCRIPTION
2. XI-41 Needle Protecting Cap
3. VLH-1, 3 or 5 Head (Sizes 1 & 5 Optional)
4. VLT-1, 3 or 5 Tip (Sizes 1 & 5 Optional)
5. MIL-2 Shell Assembly
7. MU-612 PTFE Packing & Packing Nut
8. MIL-13 Trigger
9. MIL-4 Rocker Assembly
10. MIL-11 Spring
11. V-136A Needle Adjusting Sleeve
12. VL-141 Locknut
13. VLN-1, 3 or 5 Needle (Sizes 1 & 5 Optional)
14. MIL-12 ‘O’ Ring
15. MIL-10 Cut-Away Aluminum Handle
16. MIL-9 Valve Casing
17. A-53 Valve ‘O’ Ring (pack of 6, Optional)
18. VL-214 Valve plunger (with A-53, #17)
19. A-22 Valve Spring
20. A-23R Air Valve Nut
OPTIONAL ITEMS:
13. VLN-1POL Polished Needle
13a. VL-54 Reamer for cleaning tip
15a. TAL-34 Handle & Stop Assembly
VL-1/4-OZ
(1/4oz Metal)
VL-3-OZ
(3oz Glass)
VL-1-OZ
(1oz Glass)
VLP-3-OZ
(3oz Plastic)
VL-2-OZ
(2oz Metal)
VLP-8-OZ
(8oz Plastic)
BA-60-3P
(3oz Plastic)
BA-60-1P
(1oz Plastic)
BA-60-4P
(3oz Plastic)
BA-60-2P
(1oz Plastic)
e BA bottle assemblies are a new cover conguration and all
use plastic bottle. e 2P and 4P are narrow neck and work with
most airbrush paint bottles like Createx and Paasche
