Pace IPH8010 - DVI Connection with Analog Audio; Connecting DVI and Analog Audio Cables

20
Using a DVI connection with analog audio
The HDMI connector on the receiver can provide the connection to an HDTV with a
DVI input. If your HDTV has a Digital Visual Interface (DVI) connector, you need an
HDMI-to-DVI cable and a separate analog audio cable.

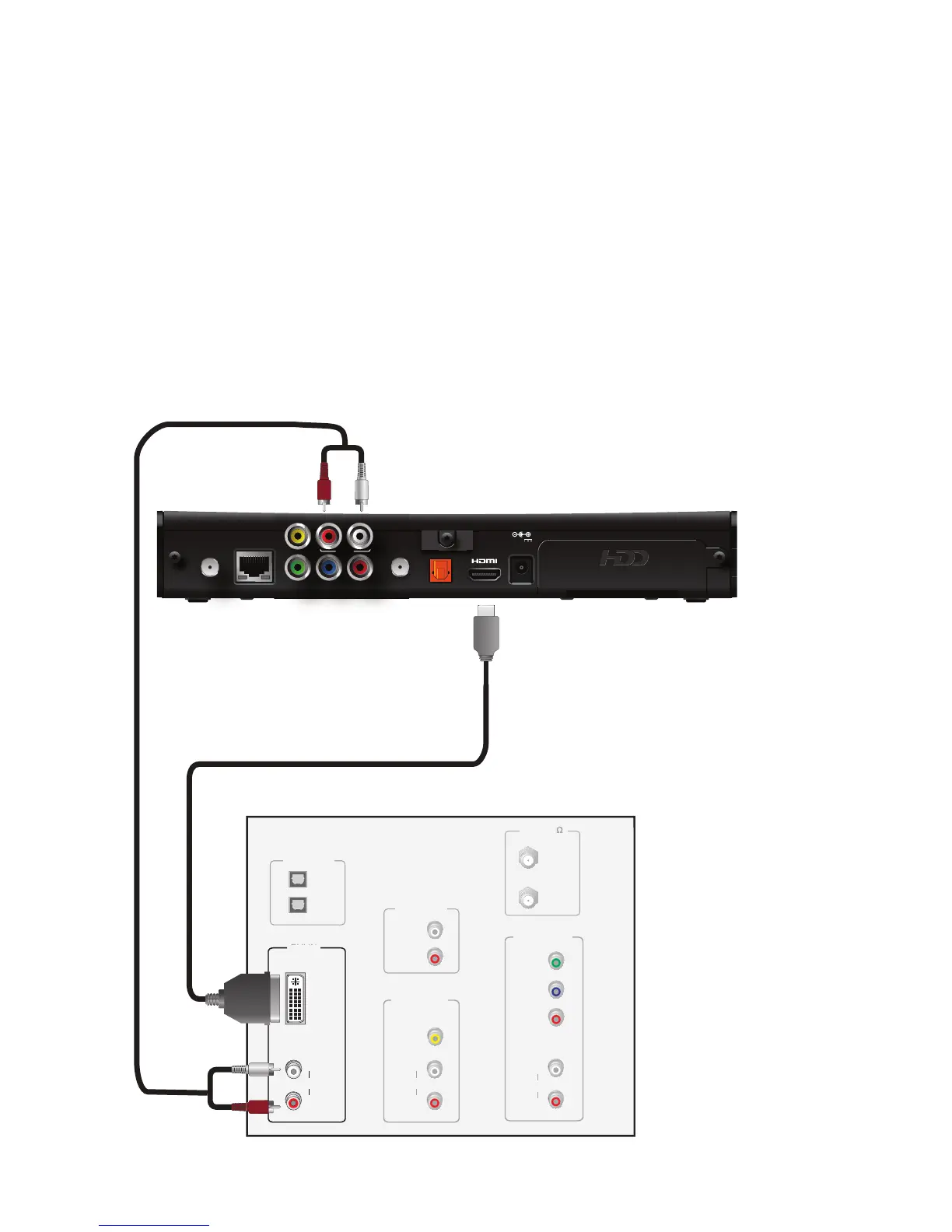

To connect the receiver to the TV using an HDMI-to-DVI cable and analog audio cable:
1. Insert the HDMI end of the cable into the HDMI connector on the receiver.
2. Insert the 24-pin DVI end of the cable into the DVI connector on the TV.
3. Connect the color-coded analog audio cable to the AUDIO L (white) and R (red)
connectors on the receiver.
4. Connect the other end of the color-coded analog audio cable to the AUDIO L (white)
and R (red) connectors on the TV.
Television
ANT (75 )
IN
OUT
VIDEO
COMPOSITE
VIDEO IN
L
R
AUDIO
DVI IN
L
R
AUDIO
AUDIO OUT
L
R
OPTICAL IN
Y
P
B
P
R
COMPONENT
VIDEO IN
L
R
AUDIO
1
2
Receiver
Analog audio cable
HDMI to DVI cable
TO WALL
(VIDEO IN)
AUDIO
YPbPr
VIDEO OUT
R
L
NETWORK
TO TV
OPTICAL
POWER
+12V
1.5A MAX.
L
R
AUDIO
DVI IN
