Installation & Assembly Manual │ PACESECTION 2 - PRODUCT DESCRIPTION
Issue Date: 07/03/2018
2
AHU ID Label
The AHU ID label contains the following information as
shown in Figure 3 on page 17:
• Model Number
• Serial Number/Date Code
• Job ID Number
• Segment ID Number
• Number of Skids
• AHU Tag Number
• Electrical Ratings
• Coil Data
• Manufacturing Location

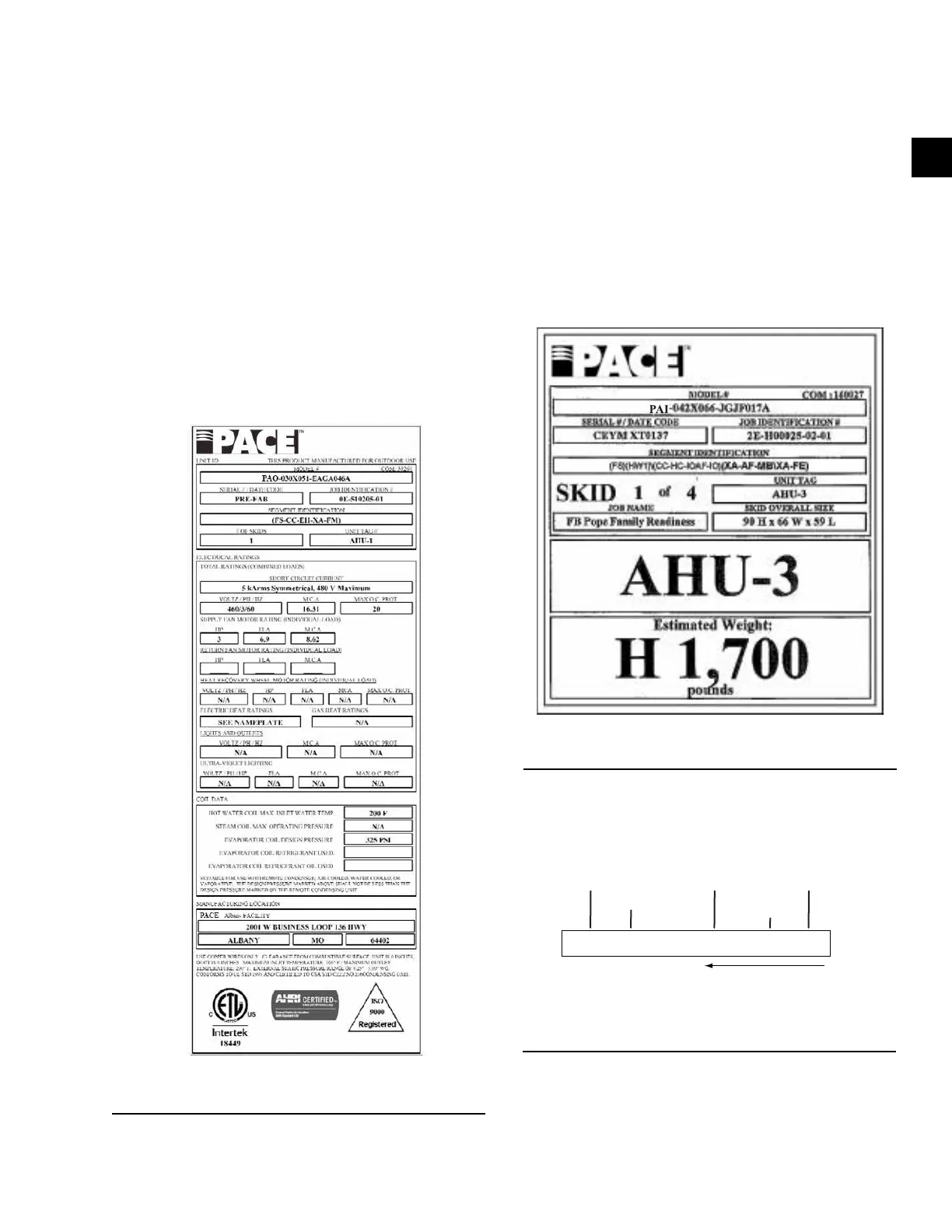

Figure 3 - AHU ID Label
AHU_ID_PA
Skid ID Label
Each skid in a multi-piece AHU is marked with a skid
ID label, which indicates its order of assembly in the
direction of airflow as shown in Figure 4 on page 17.
Segment ID Box
The segment ID box indicates the skids and segments
used on a multi-piece AHU. The contents of each skid
are indicated by the segment(s) surrounded by paren-
theses as shown in Figure 5 on page 17. Refer to
Table 1 on page 18 for the segment definitions.
LD11729b
Figure 4 - Skid ID Label
(Skid 4 of 5)
(Skid 3 of 5)
(Skid 2 of 5)
(Skid 1 of 5)
Direction of
Order of Assembly
Figure 5 - Example of Segment ID Box
LD11752a
(Skid 5 of 5)
(FS)(CC-HM)(XA-IC-XA-RF)(EE) (FR)
