SECTION 3 INSTALLATION
65
3.4.1 SINGLE PHASE OUTPUT (cont.)

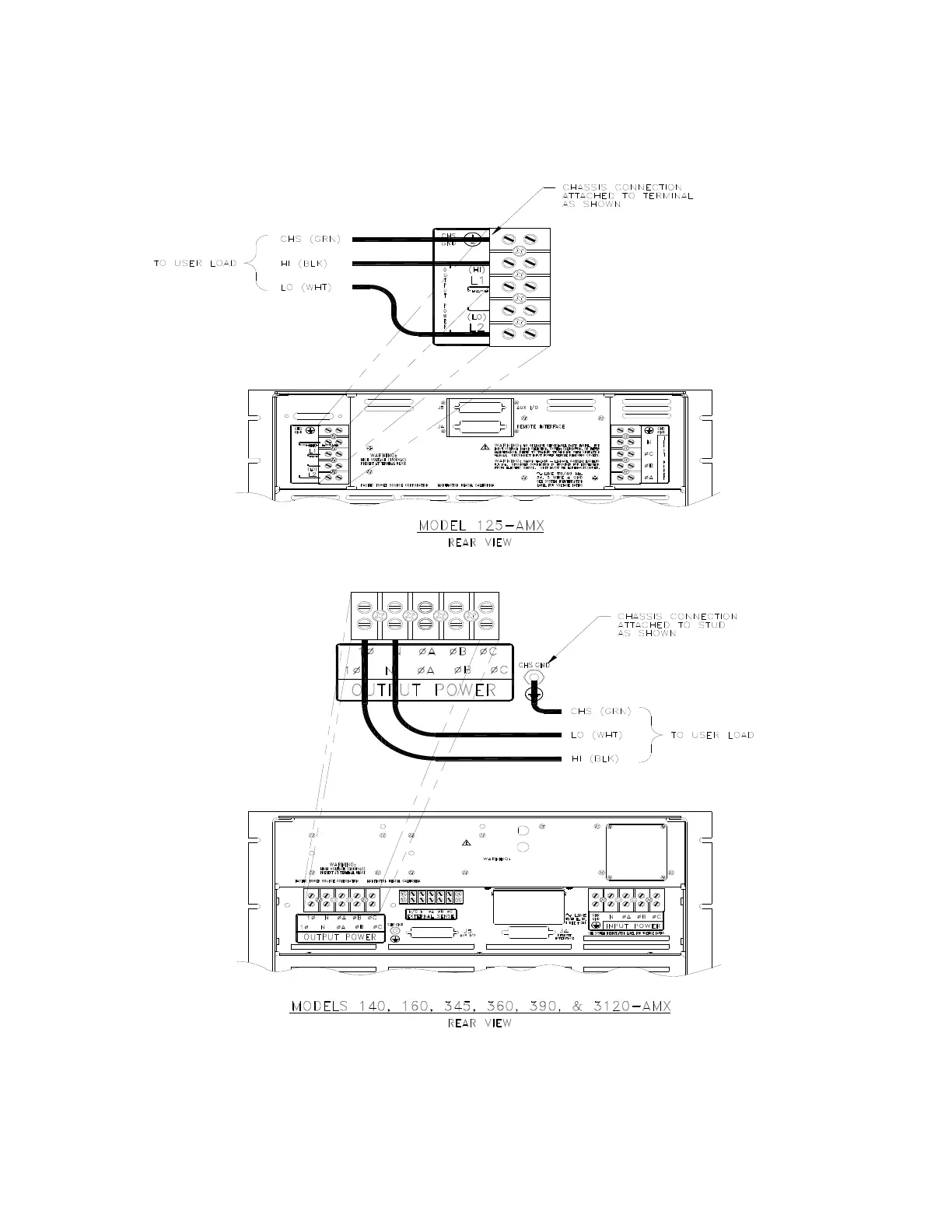

FIGURE 3.4.1.2 MODELS 125/140/160/345/360/390/3120-AMX
SINGLE PHASE OUTPUT CONNECTION
