PACOM PC809 - LED Display Explanation

Fig. 6
3.7 LED display description

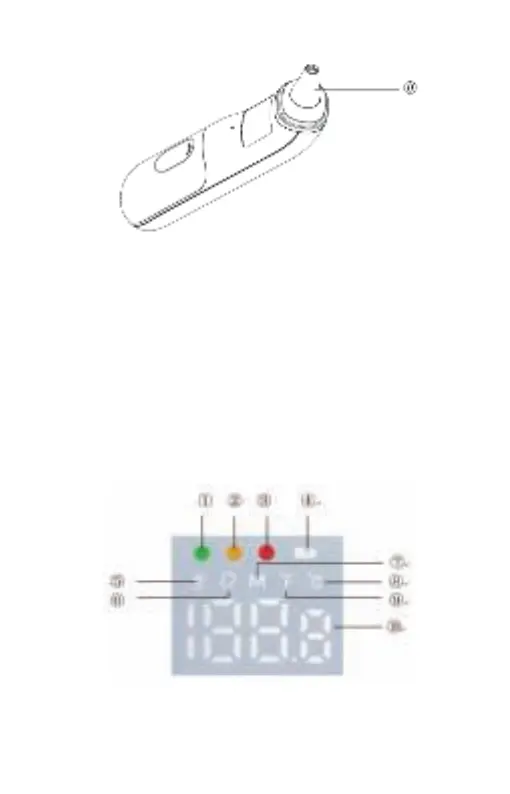

Fig. 5 (remove probe cover)
① Probe cover (remove it when measuring ear temperature)
② LED display screen
④ Top Cover
⑥ Label
⑧ Battery cover
③ Power/Measure/Set button
⑤ Infrared sensor
⑦ Buzzer/Speaker outlet
⑨ Probe
- 5 -
