PairGain CRA-C - Page 66

Network and Management Overview
58 Megabit Modem CRA-C User Manual

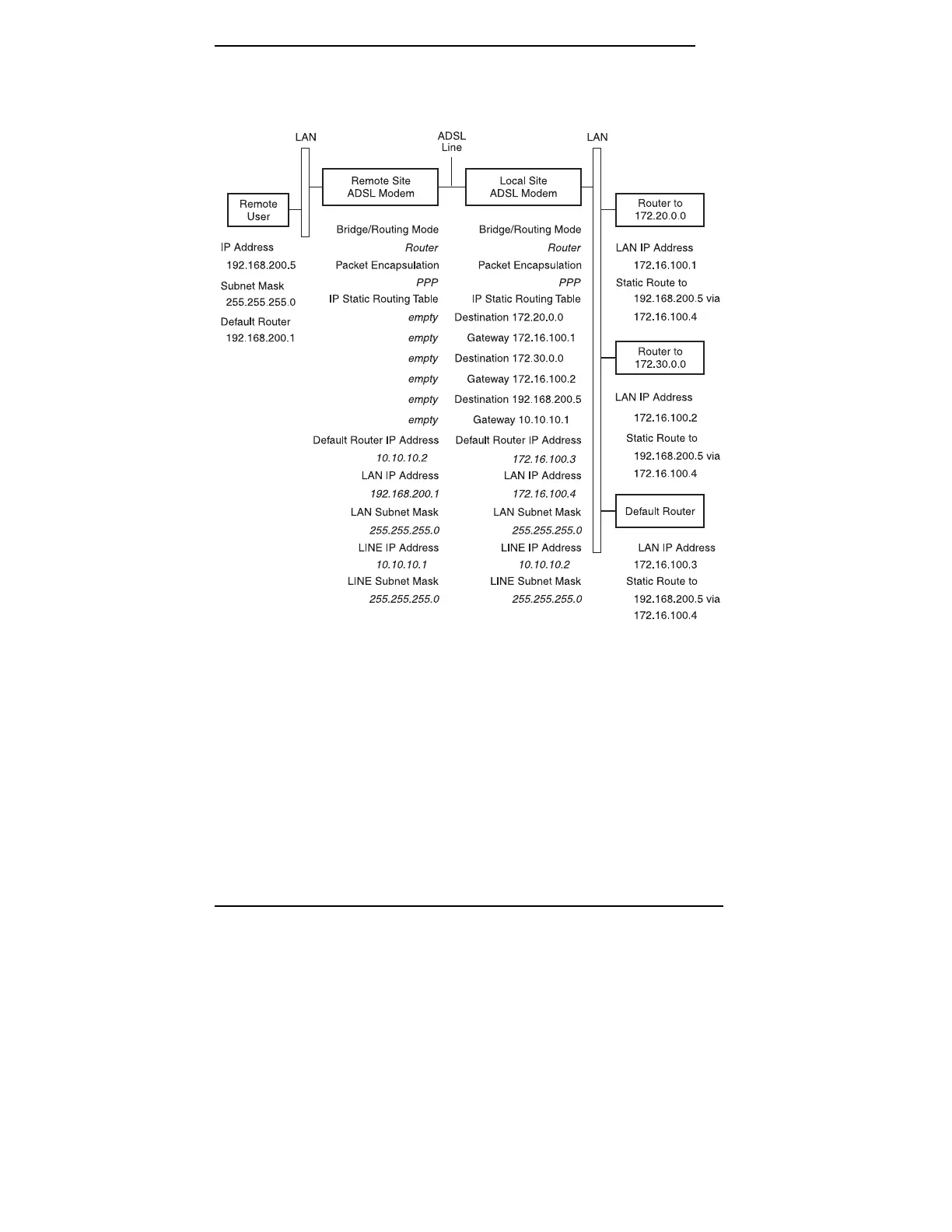

Figure 12 shows an example of a point-to-point ADSL system and hypothetical
values of parameters defined in Tables 17 and 18.
Figure 12.
Example for Static IP Routing
