Pakedge Device & Software SE-8P4 - The Front Panel; LEDs Definition

2
ports(IEEE802.3/ 802.3u/ 802.3ab)
 Supports MDI/MDI-X auto crossover
 Supports 63W Max;
Full load: 31.5W(at) x 2P = 63W
15.4W(af) x 4P = 61.6W
 Wire-speed packet filtering and forwarding rate
 Store-and-forward architecture filters fragment & CRC error packets
 Supports extensive LED indicators for network diagnostics
 Internal universal switching power supply

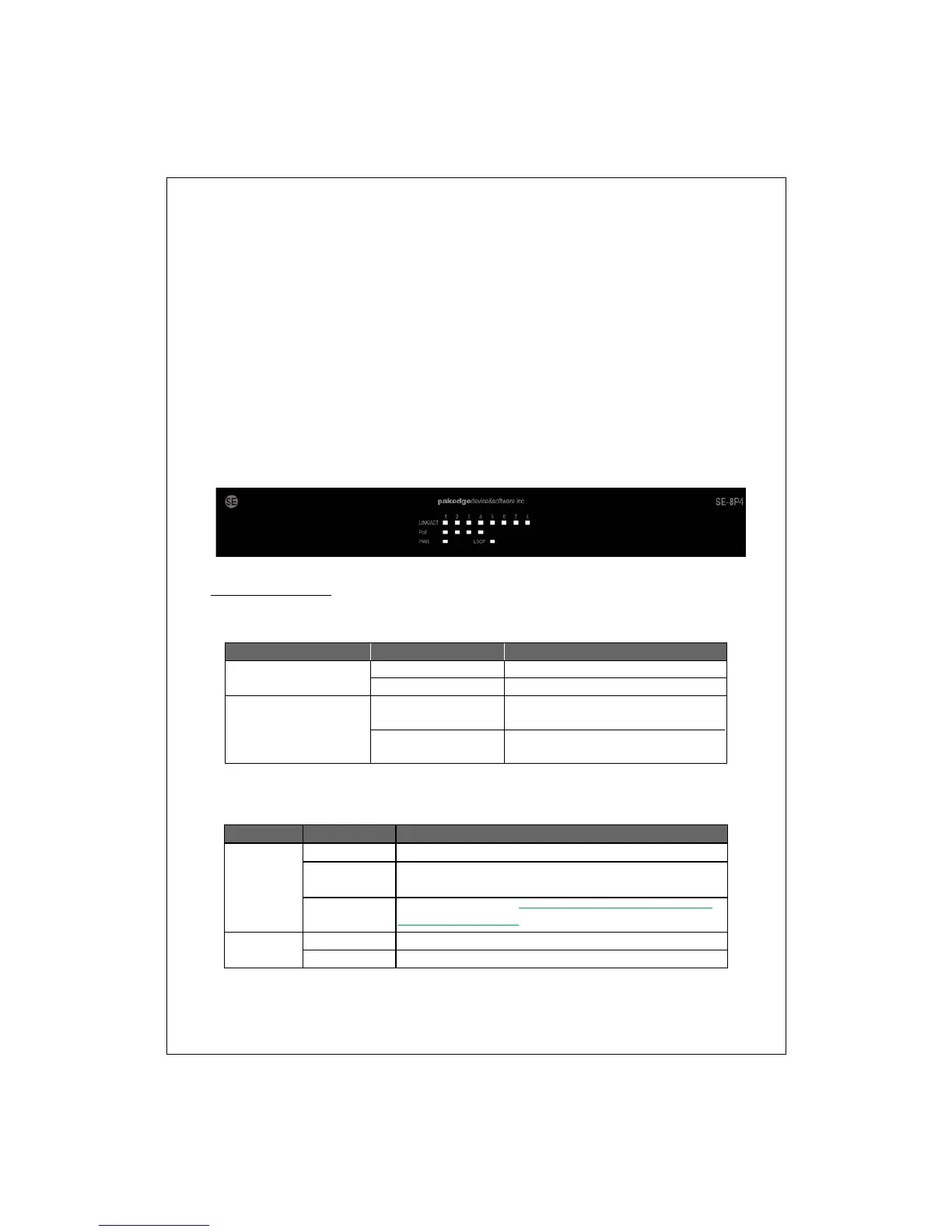

The Front Panel
The front panel consists of LED indicators. For detailed LED definition, please refer
to the next paragraph.
LEDs Definition
System LED
LED
Status
Operation
Power
Steady Blue
The switch is powered on
Off
The switch is powered off
Loop
Blinking Red
Off
There is a loop
There is no loop
Port LEDs
LED
Status
Operation
Link/ACT
Steady Blue
Valid port connection.
Blinking Blue
Valid port connection and there is data t
transmitting/ receiving
Off
Port disconnected or the port is connected at 10
Mbps or 100 Mbps
PoE
Steady Blue
A PoE compliant devices is connected to the port
Off
No PoE complaint device is connected to the port
