6.2 Plan of the delta automatic delivery
The delta must be aligned to the folding machine so that the product stream is transferred
evenly and assigned to the relevant shafts. The height of the delivery must then be aligned
exactly to the height of the folding machine. The product stream must be conveyed to the
relevant shafts. The round belts must be parallel so that the products are not twisted..

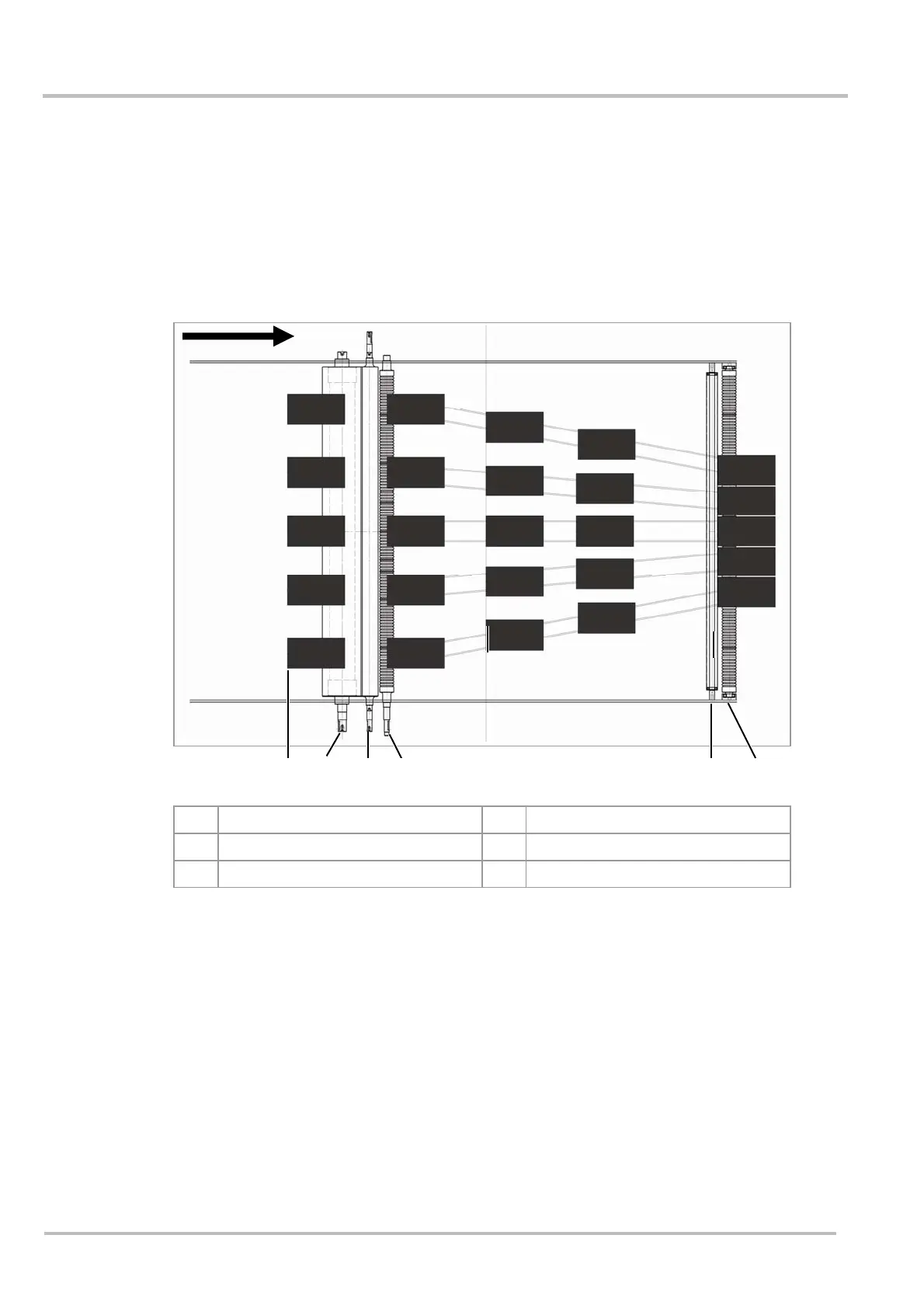

Top view plan
1
Folding machine 4 Pre press roller
2
Round belt shaft 1 5 Main press roller
3
Round belt shaft 2 6 Shaft infeed
6.3
5 2
1
36 4
