Setting up the machine
28
ubject to change without notice
Adjust upper round belts of shaft 1:
1. Loosen two infeed photocells BEX 02.01 and BEX02.02.
Ö Three belts are provided for each up-work as standard.
2. Open safety hood.
3. Set to inching mode and turn speed regulator.
4. Move the middle belt to the middle of the product.
Move both outer belts up to 20-30mm to the edge of the product.

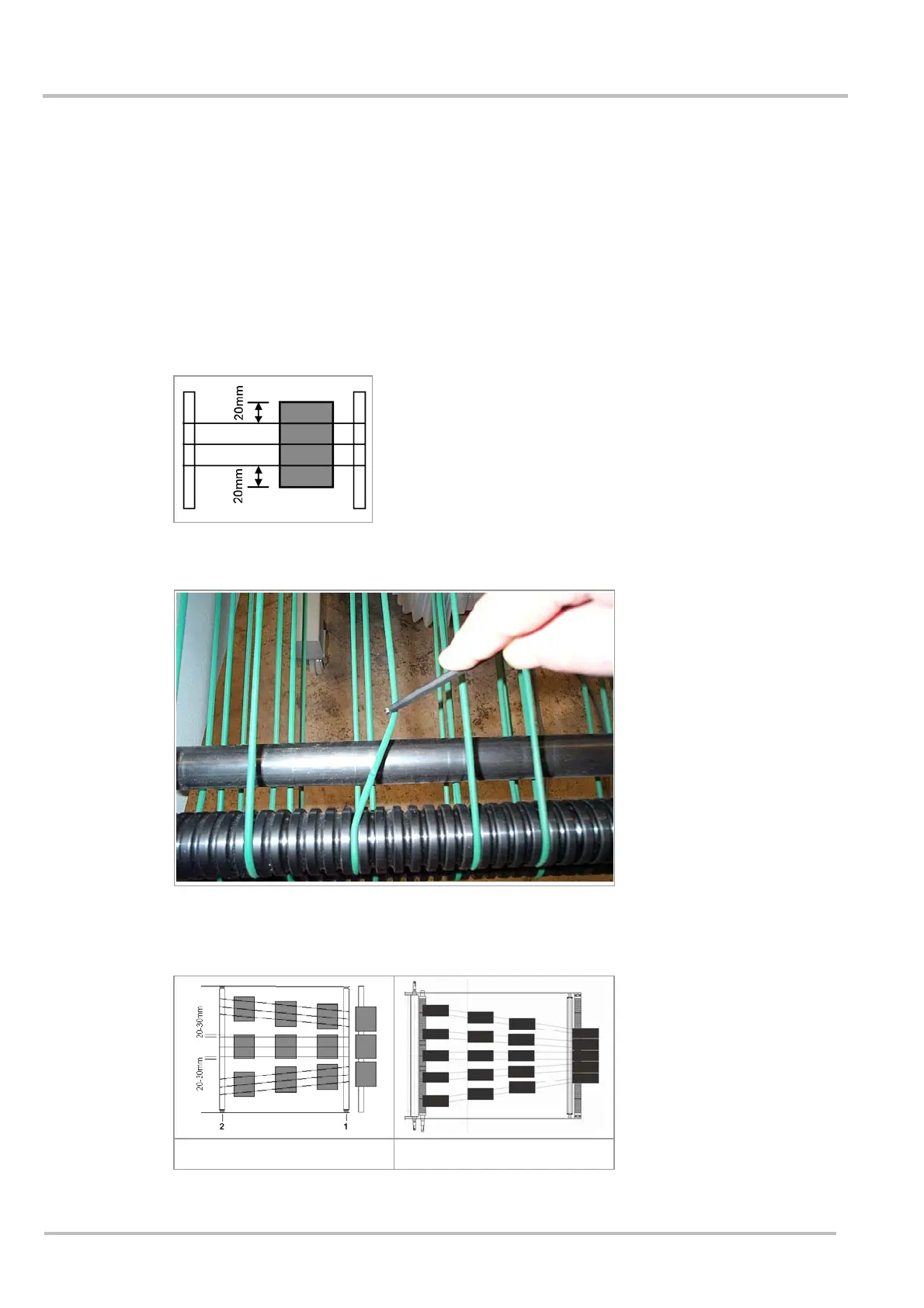

View
Adjustment of the round belts
Upper round belt view
Abb.8879
1. Carry out this adjustment for each up-work of the product.
View
delta 3-up delta 5-up
Re-adjust the round belts for each up-work
