7.4 Sheet calibration
This function saves the linear measurement of the product being processed. All further
sheets are compared to this reference value. Photocells BEX2.1 und BEX2.2 measure the
sheet format.
1. Position infeed photocells BEX2.1 and BEX2.2 on the delivery above the
product.
2. Press the following sequence of keys.
1 Home position
2 Start
3 Calibrate, key flashes
4 Single sheet call-up

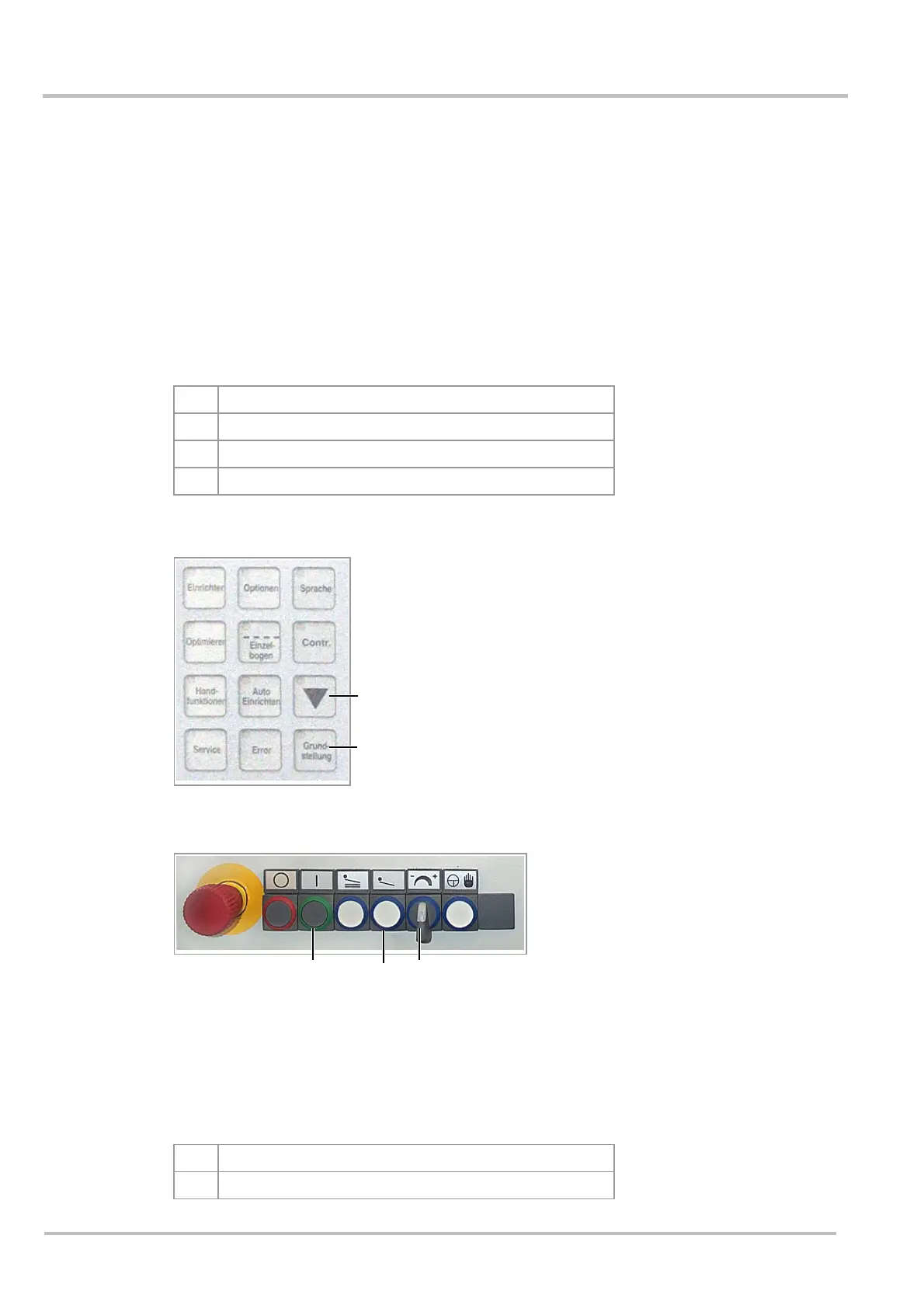

Control panel
Abb.491
Control panel
Abb.7677-2
7.5 Auto set up
The shingling axle adjusts automatically to the length of the product.
1. Press the following sequence of keys:
1 Calibrate sheet
2 Auto calibrate
(3)
(1)
(2)
(4)
(5)
