7.3 Presssing unit
The pressing unit consists of pre and main pressing rollers. The pre-press rollers press any
trapped air out of the product. The main press rollers press the product with up to 3.5t.
Adjust pressing unit:

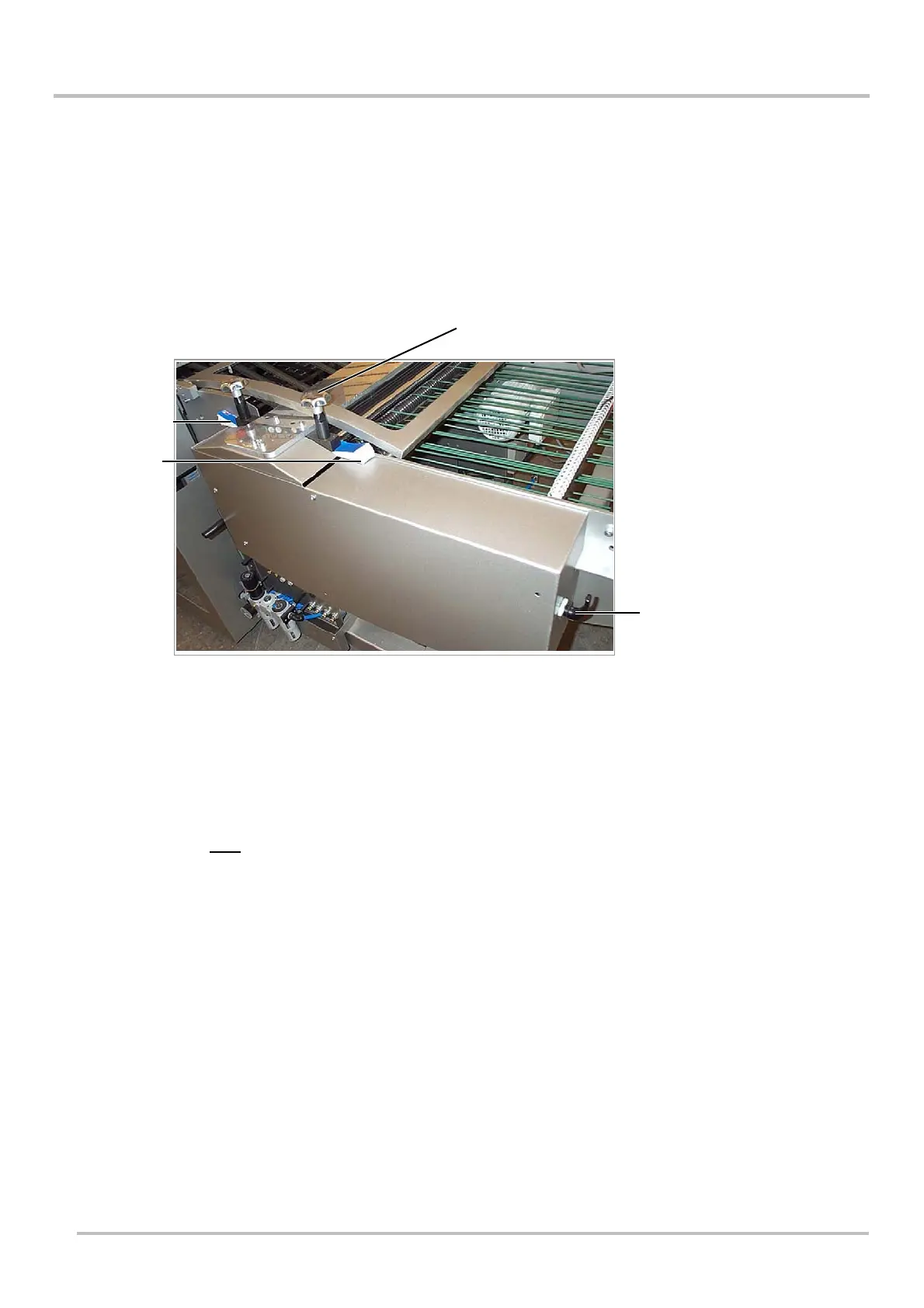

Adjust pressing unit
Abb.1735
1. Loosen all four star handles (1).
2. Open lever (2).
3. Put under 75% of the product (4).
4. Put under 50% of the product (3).
5. Carry out the adjustment on both sides
6. Close the lever
7. Re-tighten the star handles.
T
IP: Tighten only by hand
N
OTE: Check product for marking
(3)
(4)
(2)
(1)
