Setting up the machine
34
ubject to change without notice

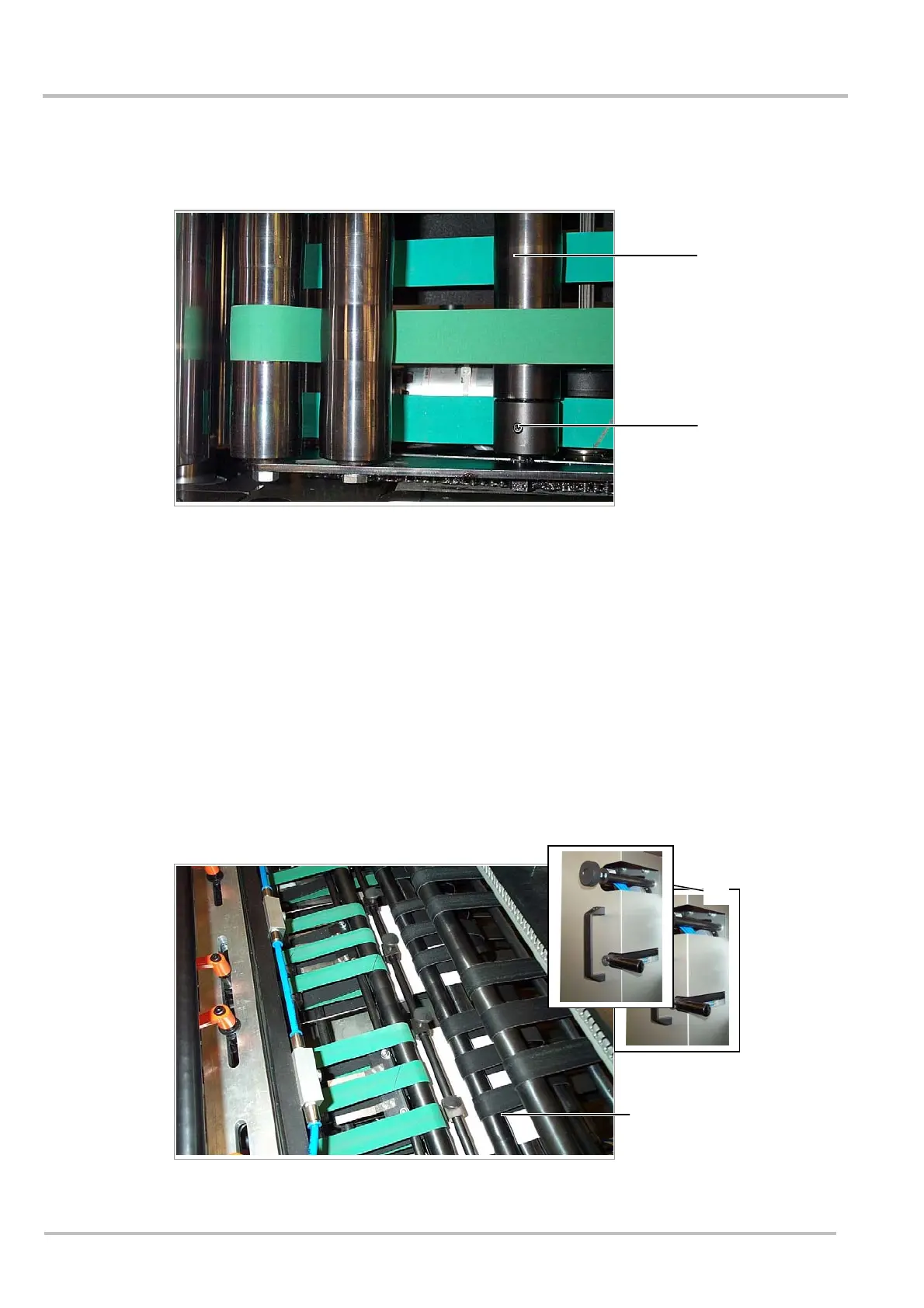

Reduce upper/lower belt pressing force:
Shingling axle
Abb.8921
1. Loosen set screw (1)
2. Adjust the shingling axle (2) to the thickness of the product
3. Tighten set screw
7.7 Shaft infeed
Adjust upper belt:
In addition, the product can be fed by adjusting the upper belts.
1. Turn the knurled screw (4)
Ö The upper belt pressure shaft (3) is adjusted
Upper belt pressure shaft
Abb.1653
3
1
2
4
