Setting up the machine
7
Subject to change without notice
35
Adjust support finger:
The product is additionally stabilised by raising the support finger so that it does not bend
into the shaft.
TIP: Important adjustment for smooth operation.
1. Lift the stop rocker (7) and let it engage
2. Loosen knurled screw (6)
3. Adjust the support finger (5) to the format
4. Loosen the stop rocker holder and locking button (8)
5. Engage the stop rocker back down
Support finger

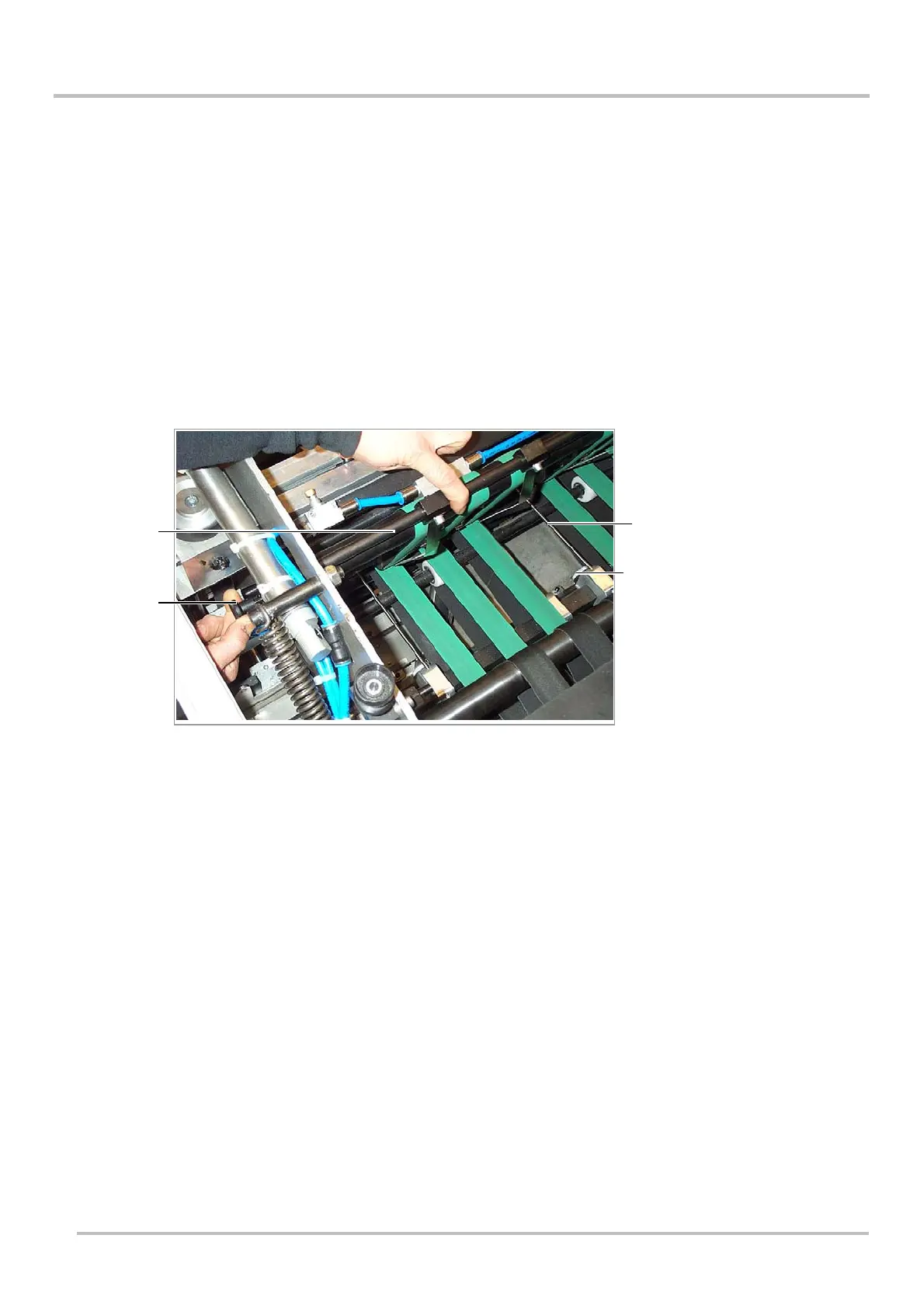

Abb.1658
6
5
8
7
