Setting up the machine
38
ubject to change without notice
2. Set the adjusting frame to the product width,
by turning the knurled screw (2)
Adjusting the angle of the rear jogging plate

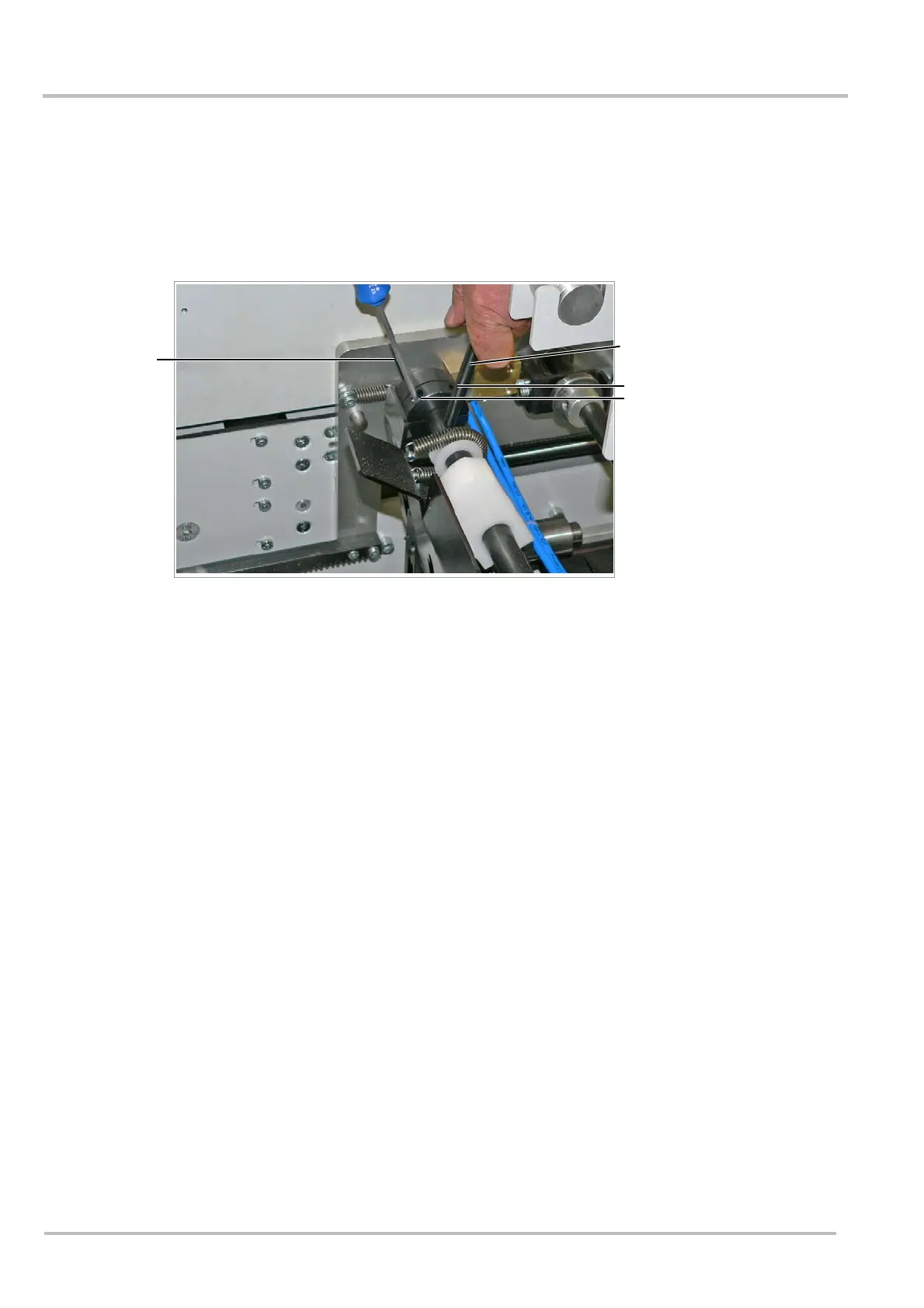

Abb.1040864
1. Loosen both screws (1) using allen key no. 4.
2. Set the angle of the jogging plate to the products.
Ö by adjusting the lever (2).
3. Tighten both screws again (1).
(1)
(2)
