7.8 Shaftt
The products are stacked in the shaft and knocked-up by jogging plates. This ensures that a
tidy pile is formed. Two lateral jogging plates and the back jogger on the adjusting frame
undertake this function.
Adjust lateral jogging plates:
Two jogging plates are required per up-work.

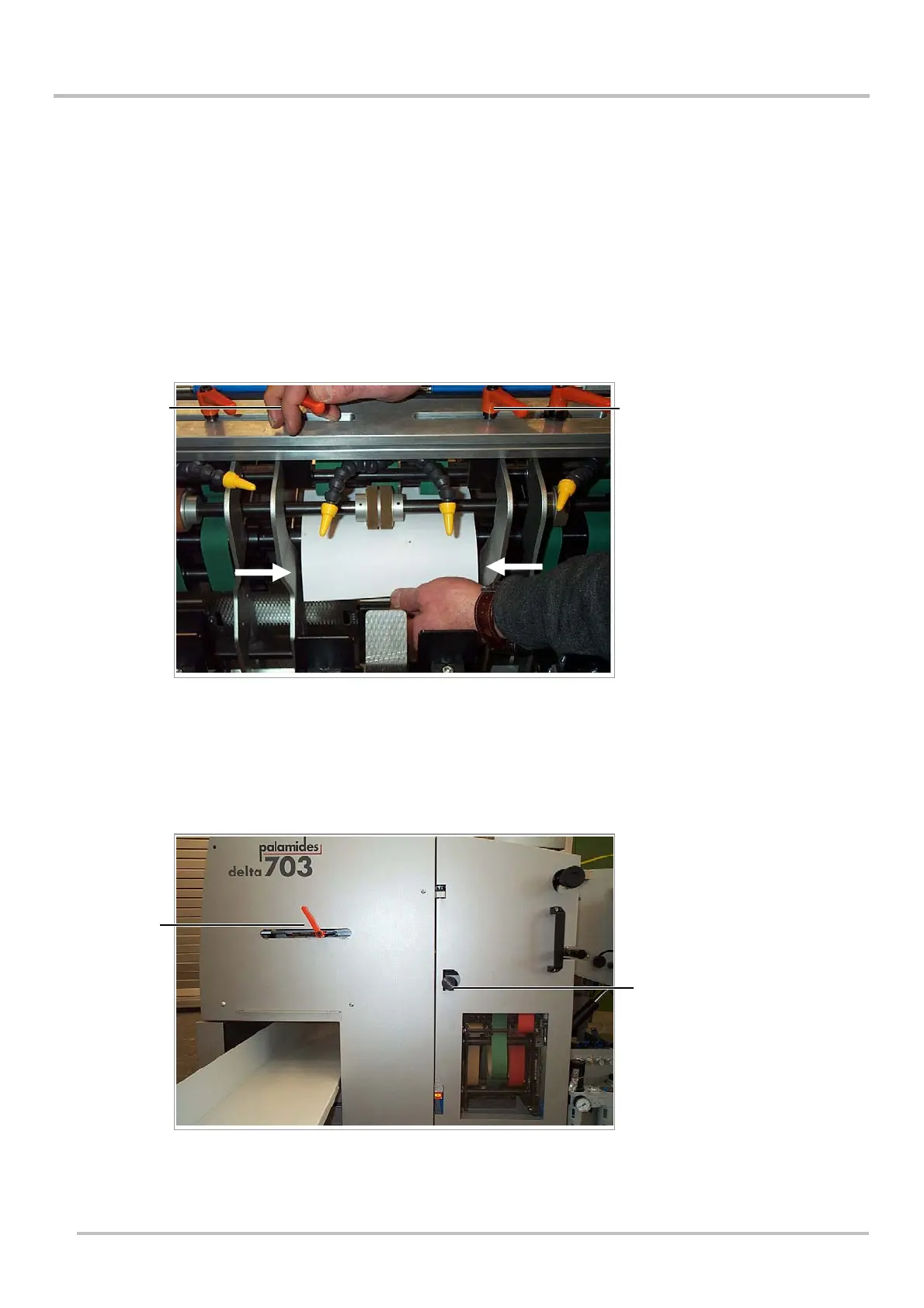

Jogging plates
Abb.1654
1. Loosen lever (1)
2. Adjust both jogging plates to the height of the product
Ö The jogging plates are located in the narrowest position when the machine
stops
Set the adjusting frame to the product length:
Abb.1731
1. Loosen lever (1)
(1)
(1)
(1)
(2)
