Retractable Models

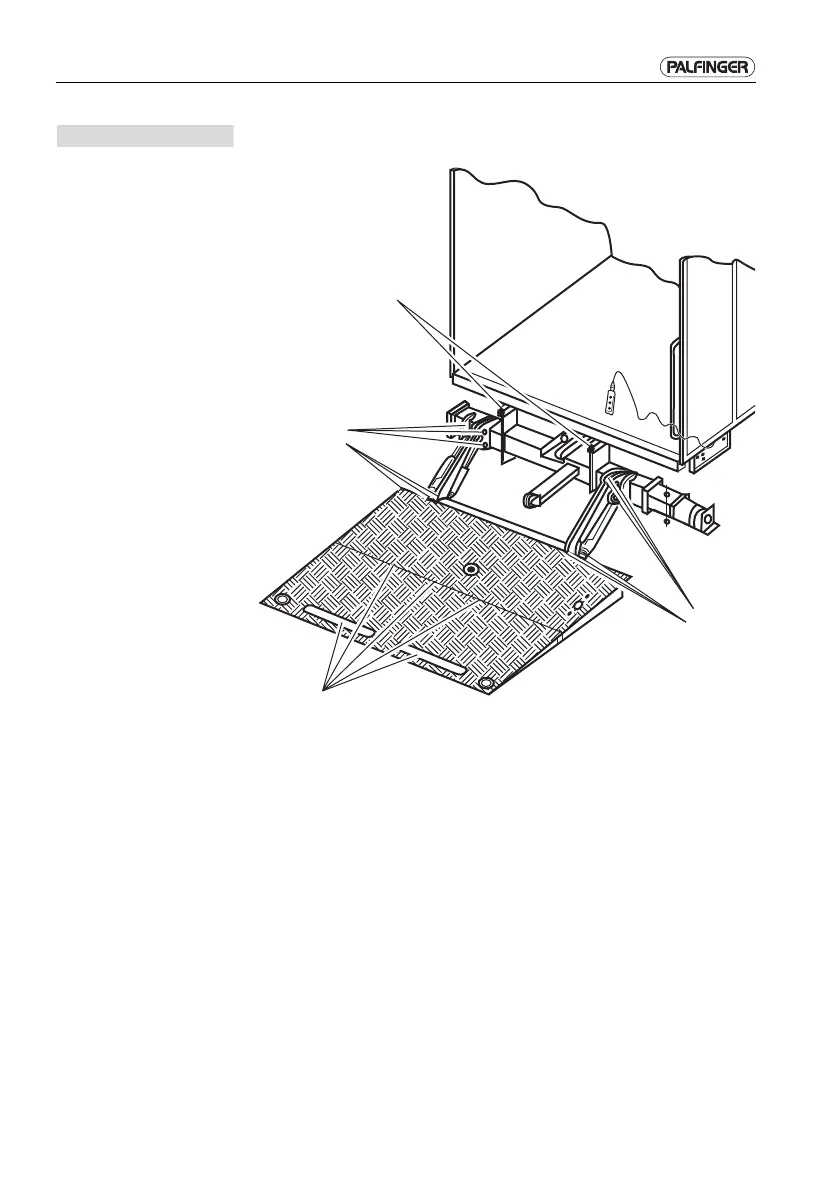

44 Conical lubricating head
45 Roll-off protection bearings and joint of folding platform
46 Sliding consoles in the guide rails (nozzle lubrication)
To grease and lubricate:
Clean the conical lubricating heads.
Use a grease gun to press grease into the conical lubricat-
ing heads (44) until the bearing is filled (see chapter “Lubri-
cants and Operating Media” from p. 188).
Lubricate the bearings of the rool stop and the joint in the
platform (45).
Lubricate the sliding consoles in the guide rails (46) (see
chapter “Lubricants and Operating Media” from p. 188).
