Document #: 020-17475-00 Revision: E Page #: 13 of 63
leaving other functions of the drive unit in operation. To reset the unit release the E-stop
button by pulling it up until it clicks, then acknowledge the alarm on the touch screen.
IMPORTANT! If the drive unit charging phase has not been completed it is possible the
Levmixer will not levitate correctly. In order to ensure proper levitation in those cases,
turn the unit off, wait for at least 25 minutes, and then charge it following the standard
procedure as described in section H.
For details of operation see Section P Operator Control Interface Guide

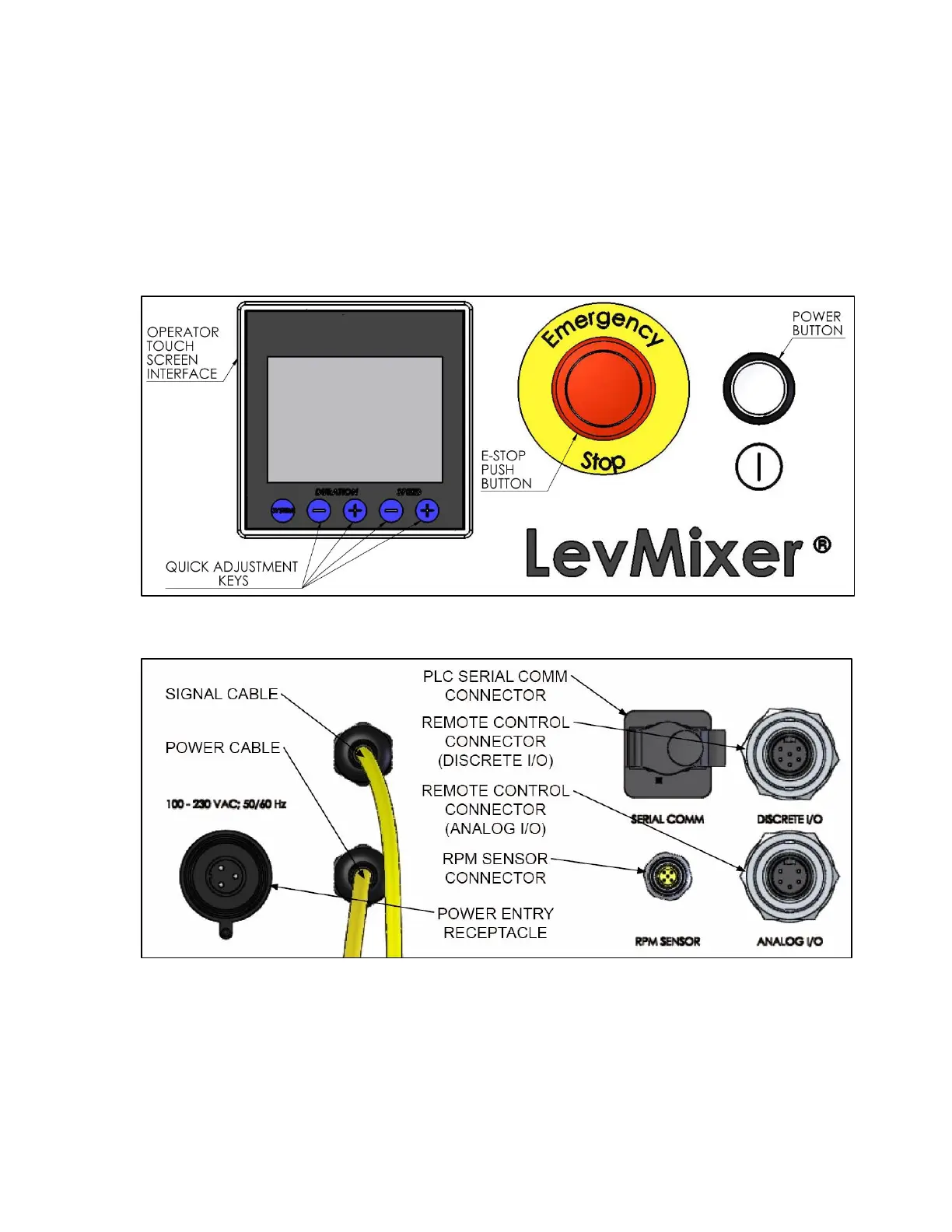

Figure 8: Face panel of control box
Figure 9: Rear panel of control box.
