Document #: 020-17475-00 Revision: E Page #: 21 of 63
L. COUPLING THE BAG WITH SUPERCONDUCTING DRIVE UNIT
For compact drive unit model see also Section S.
The unit can be used in one of two configurations: standard or expanded. The
configurations can be switched following the procedure described in Section O.
Each configuration allows connection of the unit to different rail ports using a universal
latch (Figure 19). Marks on the frame at each latch slot proper positioning of the latch.
Adjust the universal latch by following the steps shown in figures 20 through 23.

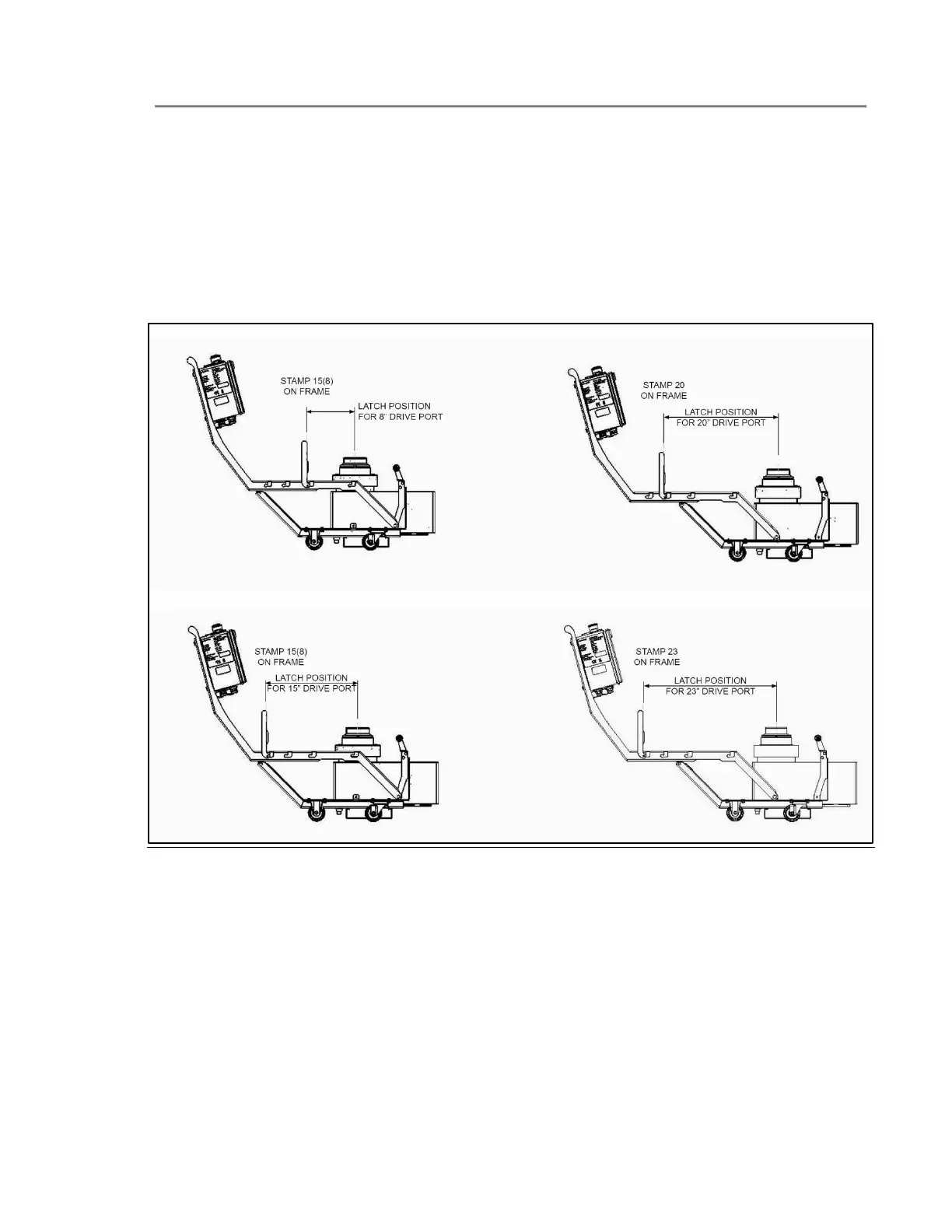

Figure 19: The LevMixer shown in standard (two left images) and expanded (two right images)
configurations
