Document #: 020-17475-00 Revision: E Page #: 20 of 63
K. INSERTING MIXING BAG INTO CONTAINER

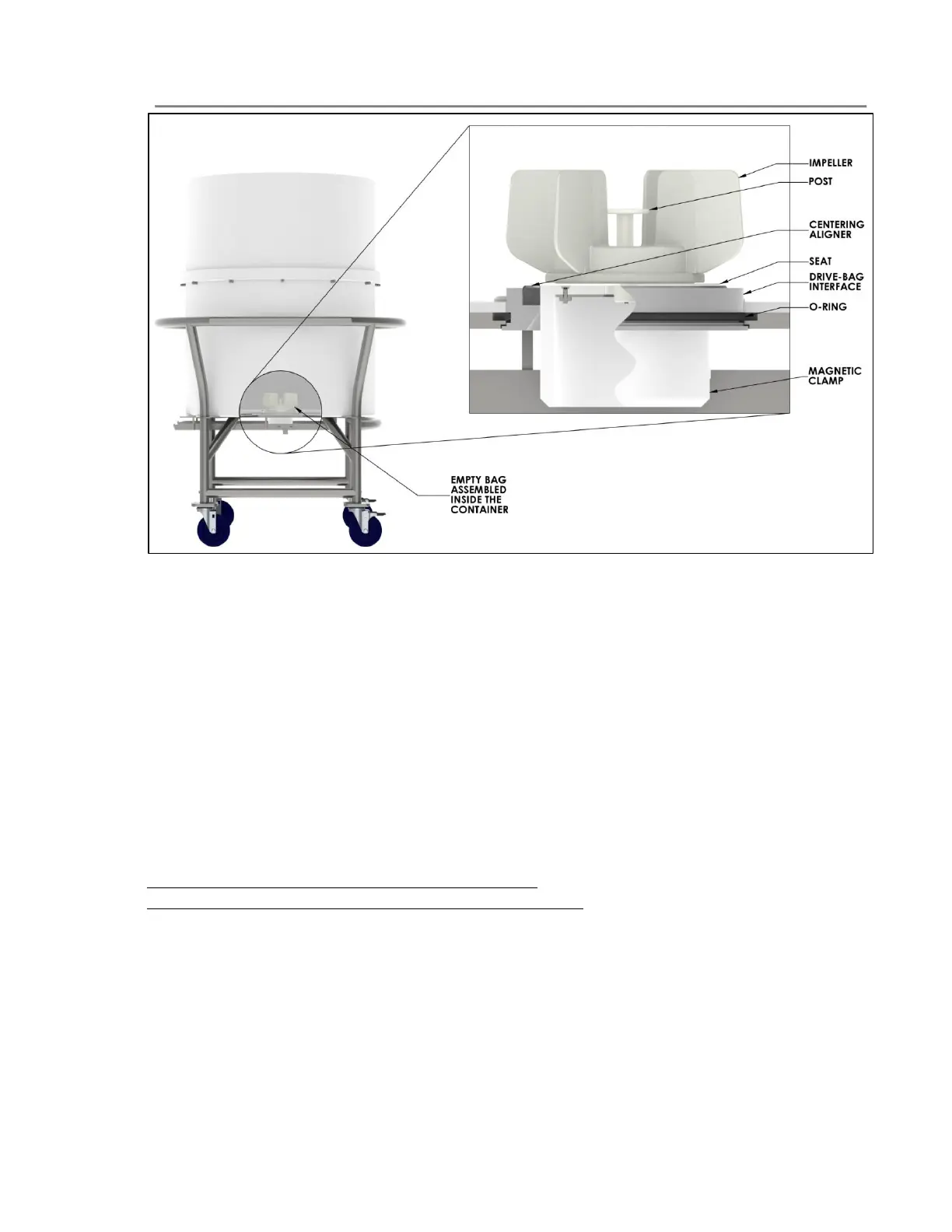

Figure 18: Bag-Tank Assembly
Procedure:
1. Place the mixing bag in the tank by aligning the magnetic clamp with the large pre-
cut port on the bottom. Pull the bottom drain tube through the drain port opening.
2. Insert the magnetic clamp into the port.
3. Before filling the bag, ensure that the bottom drain tube is clamped. If the bag
contains an EZ-Drain, ensure the drain is fully closed and clamp the drain in place using
the provided plastic drain clip.
4. As bag starts to fill, gently pull the bottom surface of the bag to remove any wrinkles,
especially near the impeller.
DO NOT exceed recommended bag capacity.
DO NOT alter the tube and/or impeller configuration.
To Next Page
