2. To set the rails for the central (15”) port position set the right and left adjusters so that
the side with word “CENTER” is visible on both. See figures 13 and 14. Ensure that the
two dot marks on the right adjuster are located next to the two dot marks on the rail
and single dot mark of the left adjuster is located next to the single dot mark on the left
rail. Secure the adjusters with the screws provided.
3. To set the rails for the off center (8”) port position set the right and left adjusters so that
the side with words “OFF-CENTER” is visible on both. See figures 15 and 16. Ensure that
the two dot marks on the right adjuster are located next to the two dot marks on the
rail and single dot mark of the left adjuster is located next to the single dot mark on the
left rail. Secure the adjusters with the screws provided.

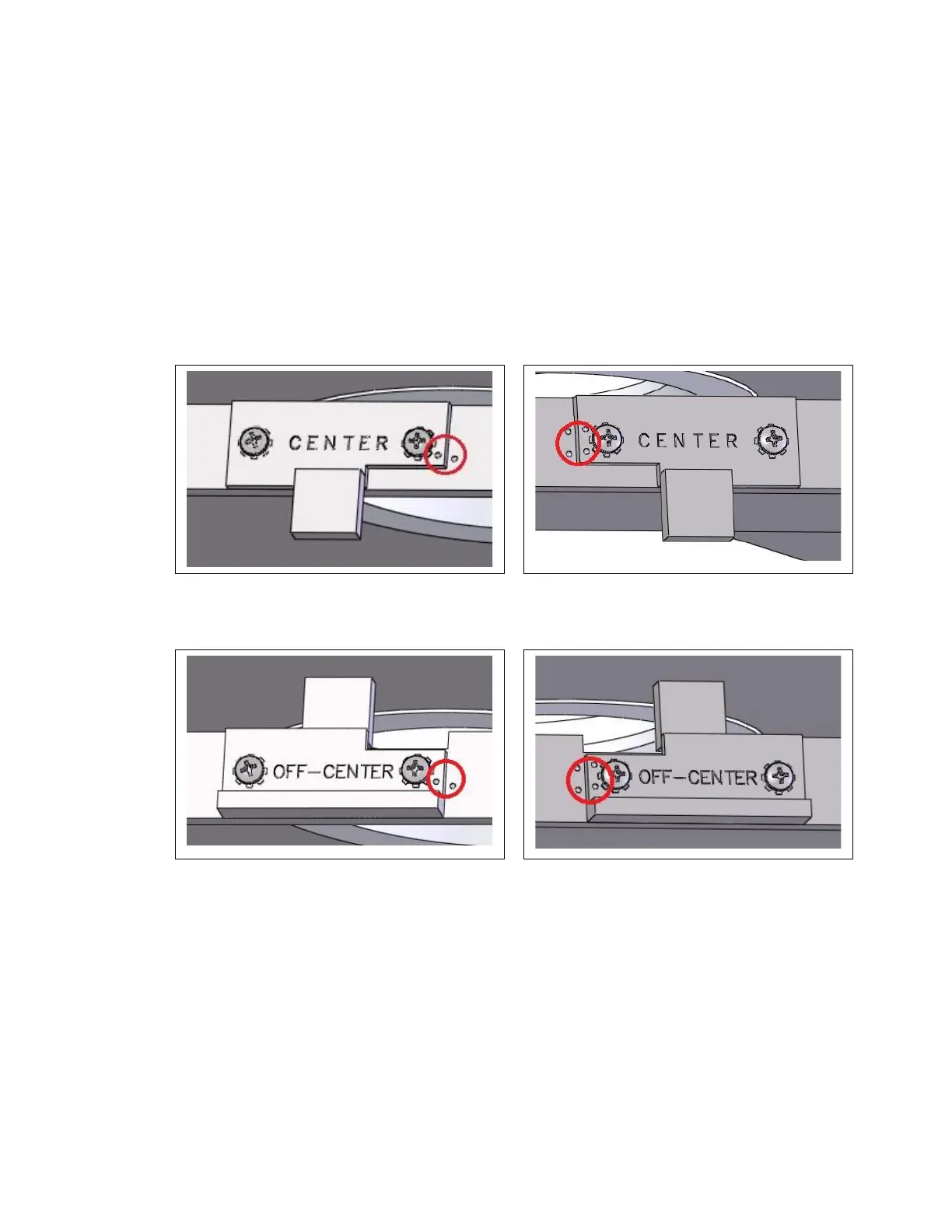

Figure 13: Left Rail - Center Installation Figure 14: Right Rail – Center Installation
Figure 15: Left Rail – Off-Center Installation Figure 16: Right Rail – Off-Center Installation
