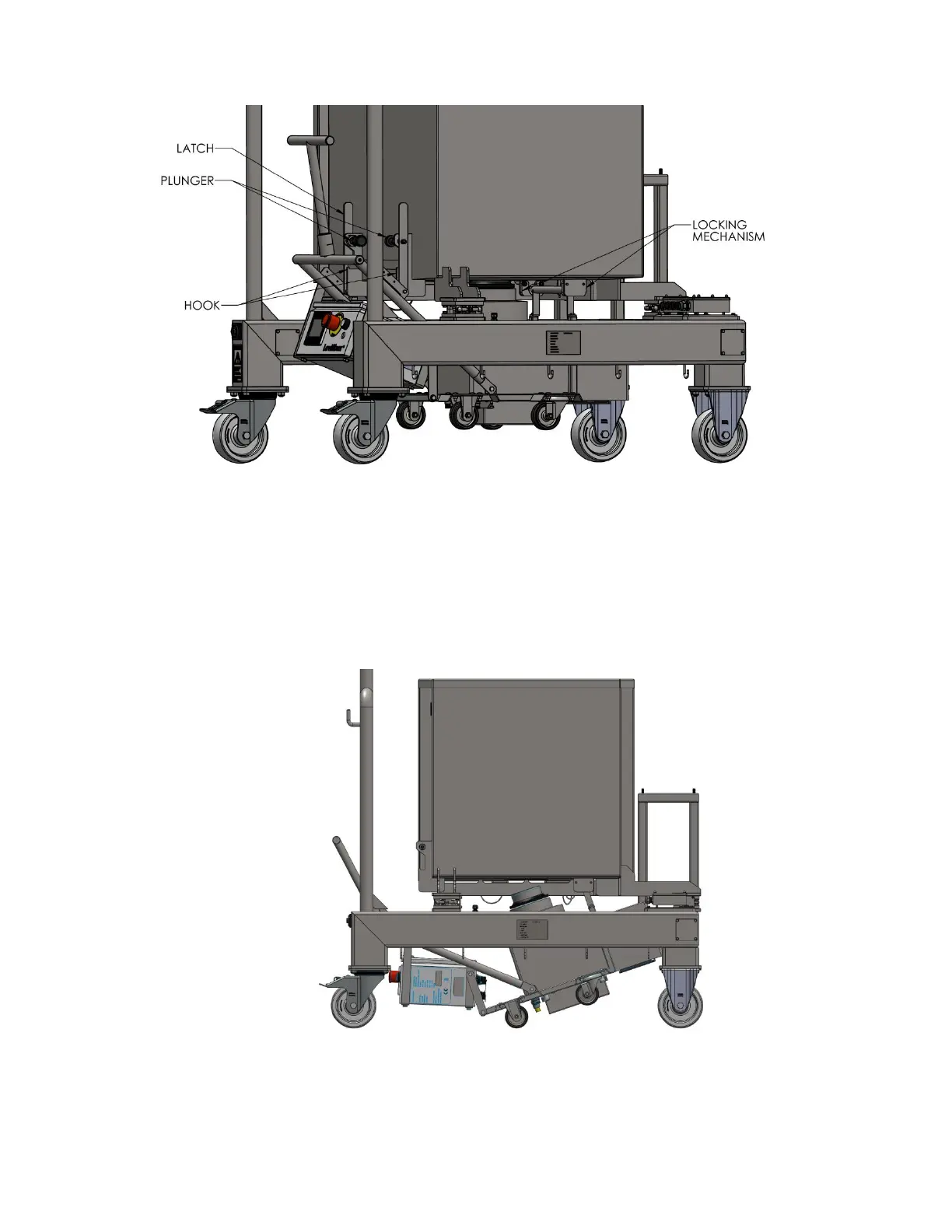

Figure 66: Compact Drive connected to tank
Version of the drive port for permanent connection instead of rails has locking
mechanism mounted on the bottom of tank (see Figure 66). It holds the drive in place
levelled correctly when it is positioned for mixing (closed position) while allow drive unit
to be turned down to disconnect it from impeller and bag (open position, see Figure
67).
Figure 67: Open position of permanently connected drive unit
