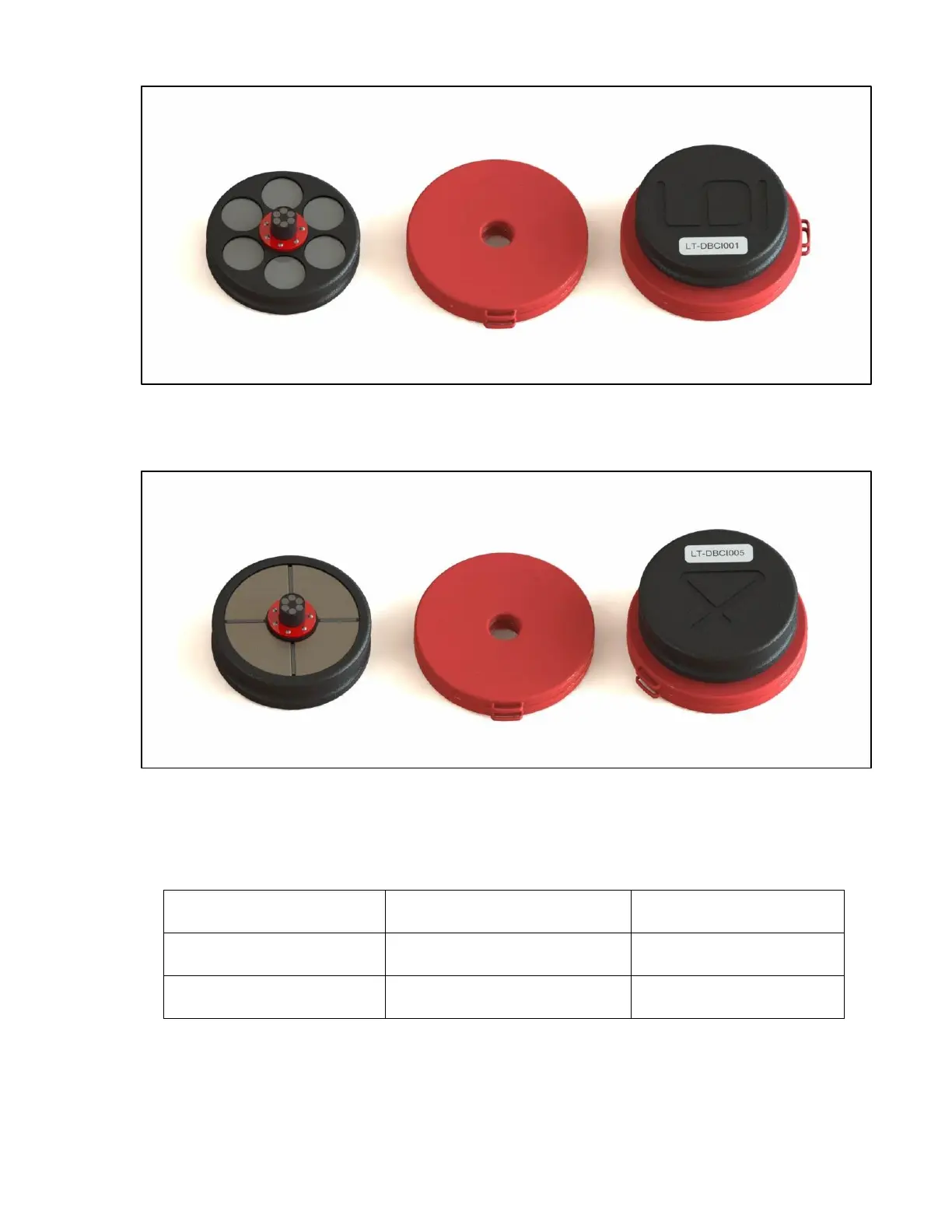

Figure 3: From left to right, Magnetic Charger (DBCI001), Shield for Magnetic Charger, (DBAK011)
and Magnetic Charger (DBCI001) coupled with Shield. During the charging procedure, the ball
bearing (red in far left picture) should rest on the surface of the levitation head of the drive unit.
Figure 4: From left to right, Magnetic Charger (DBCI005), Shield for Magnetic Charger, (DBAK011)
and Magnetic Charger (DBCI005) coupled with Shield. During the charging procedure, the ball
bearing (red in far left picture) should rest on the surface of the levitation head of the drive unit.
Magnetic Charger & Test Impeller Chart:
*Note: the appropriate magnetic charger must be used to set the drive machine for
use with the corresponding impeller. The machine will not properly drive an impeller
which does not have the corresponding magnet configuration.
Magnetic Charger
Corresponding Test
Impeller
Magnet Configuration
DBCI001
DBAK004
6-magnet charger &
impeller
DBCI005
DBAK007
4-magnet charger &
impeller
