Interior assembly
Blue wire
17

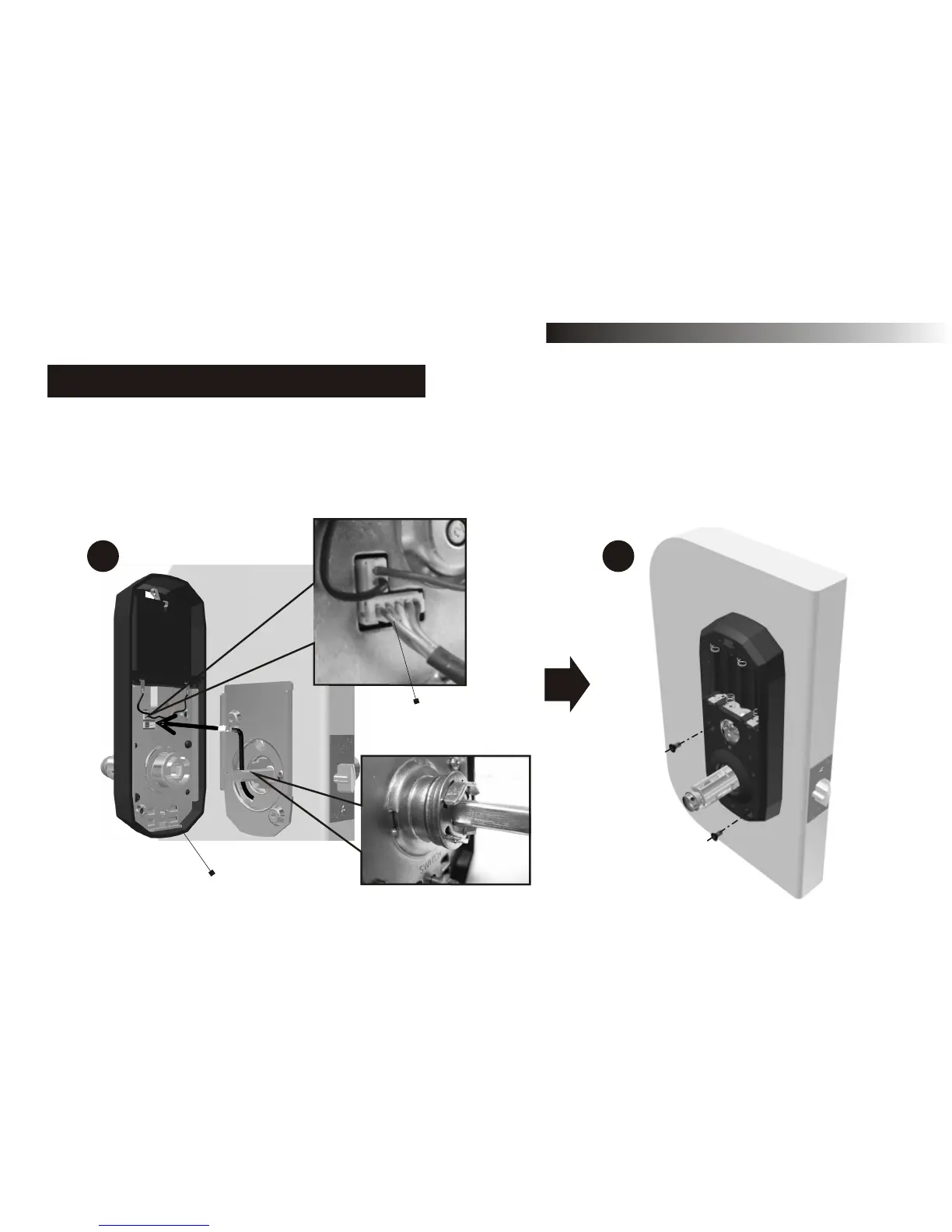

INSTALLATION INSTRUCTIONS
A. Insert the cable into the connector port firmly with blue wire just under the red black wires of
the port as shown.
B. Slide the interior assembly onto square spindle of the exterior assembly.
C. Fasten the interior assembly on the mounting plate with 2 screws (7.8mm or 0.3'').
7-4. MOUNTING INTERIOR ASSEMBLY
A B
