Panasonic CF-C2 series - Page 15

15

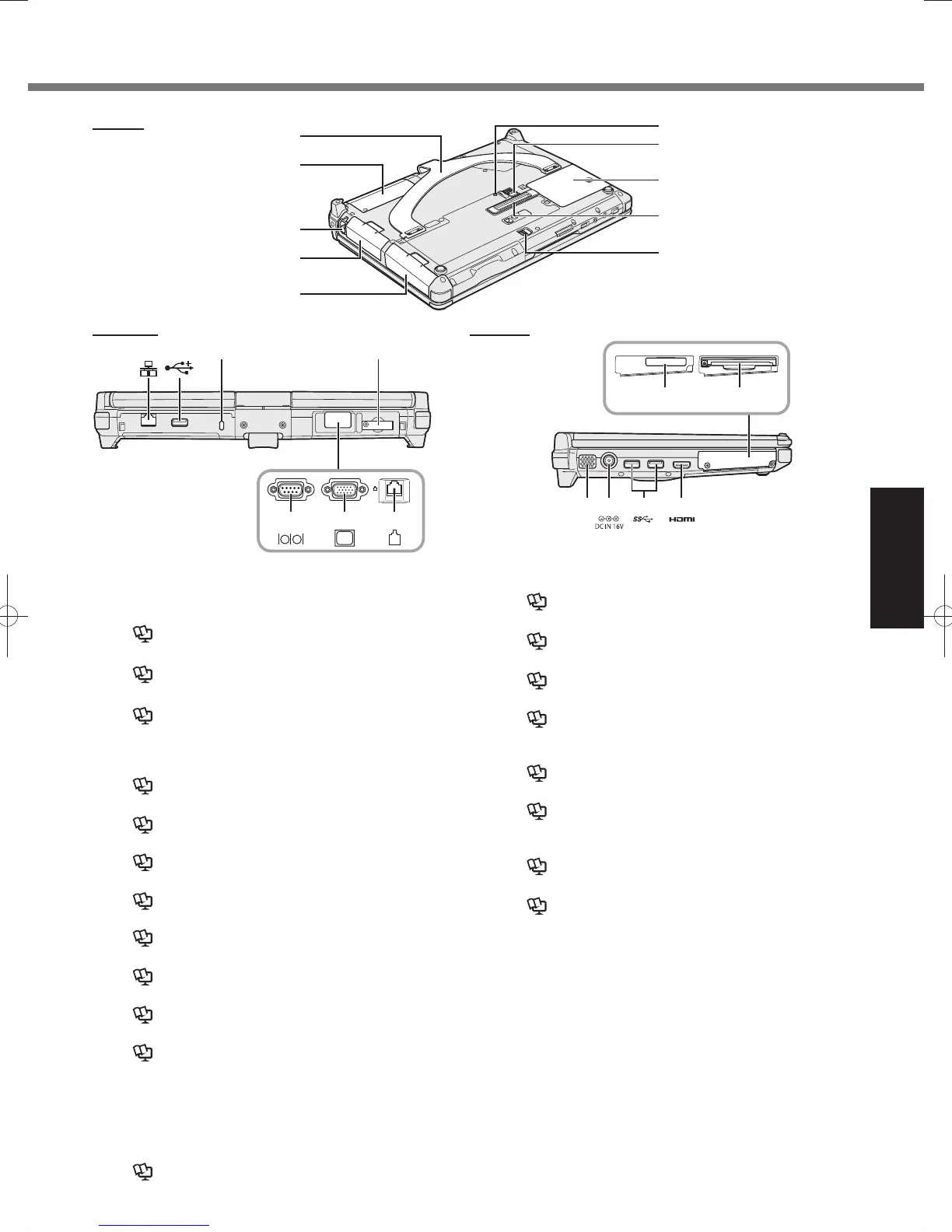

Getting Started
Bottom
A: Hand Strap
B: NFC Sensor
*2
/Rear Camera
*3
/Half Size Smart Card
Slot
*4
*2
<Only for model with NFC Sensor>

Reference Manual “NFC Devices”
*3
<Only for model with Rear Camera>

Reference Manual “Camera”
*4
<Only for model with Half Size Smart Card Slot>

Reference Manual “Smart Card”
C: Pen Holder
D: Battery Pack
E: Hard Disk Drive

Reference Manual “Hard Disk Drive”
F: Battery Indicator

Reference Manual “Battery Power”
G: Battery Latch

Reference Manual “Battery Power”
H: RAM Module Slot

Reference Manual “RAM Module”
I: Expansion Bus Connector

Reference Manual “Port Replicator”
J: Hard Disk Drive Latch

Reference Manual “Hard Disk Drive”
K: LAN Port

Reference Manual “LAN”
L: USB2.0 Port

Reference Manual “USB Devices”
M: Security Lock
A Kensington cable can be connected.
For further information, read the manual that comes
with the cable.
N: SIM Card Slot
<Only for model with wireless WAN>

Reference Manual “Wireless WAN”
O: Serial Port
*5
/ VGA Port
*6
/ Modem Port
*7
*5
<Only for model with Serial Port>

Reference Manual “Serial Port”
*6
<Only for model with VGA port>

Reference Manual “External Display”
*7
<Only for model with Modem>

Reference Manual “Modem”
P: Speaker

Reference Manual “Key Combinations”
Q: DC-IN Jack
R: USB3.0 Ports

Reference Manual “USB Devices”
S: HDMI Port

Reference Manual “External Display”
T: ExpressCard Slot
*8
/ Smart Card Slot
*9
*8
<Only for model with ExpressCard Slot>

Reference Manual “ExpressCard”
*9
<Only for model with Smart Card Slot>

Reference Manual “Smart Card”
R SQP
*
9
T
*
8
T
Rear side
O
*
5
*
6
K L NM
O
*
7
O
Left side
F
G
H
I
J
E
D
C
A
B
